HOPPE Quick-FitPlus – Now also for standard roses and escutcheons

  • Non-screw fitting of the entire handle set, even with standard roses and escutcheons: handles as well as roses and escutcheons can be connected with ease
  • Reliable, sturdy and robust – tested to DIN EN 1906 (category of use 3), suitable for use in commercial buildings
  • Available for three popular HOPPE aluminium series
Illustration 1: 1700-42KB-42KBS-OB-F9714M-Motiv1-nW.jpg

The tried-and-tested Quick-FitPlus connection technology is now also available for handle sets with standard roses and escutcheons. HOPPE thus offers a key installation advantage: Both handles and escutcheons can be fitted quickly and without screws.

Non-screw fitting
The Quick-FitPlus connection for interior door handle sets with standard roses and escutcheons is available for the Hamburg, Luxembourg and Verona series. Thanks to the patented connection, the roses and escutcheons can be fitted quickly and without screws. The roses and escutcheons provided with supporting lugs and the handles are simply connected to each other on the prepared door. To ensure the handle maintains its fit on the door for many years to come, the handle roses are equipped with a spring cassette.

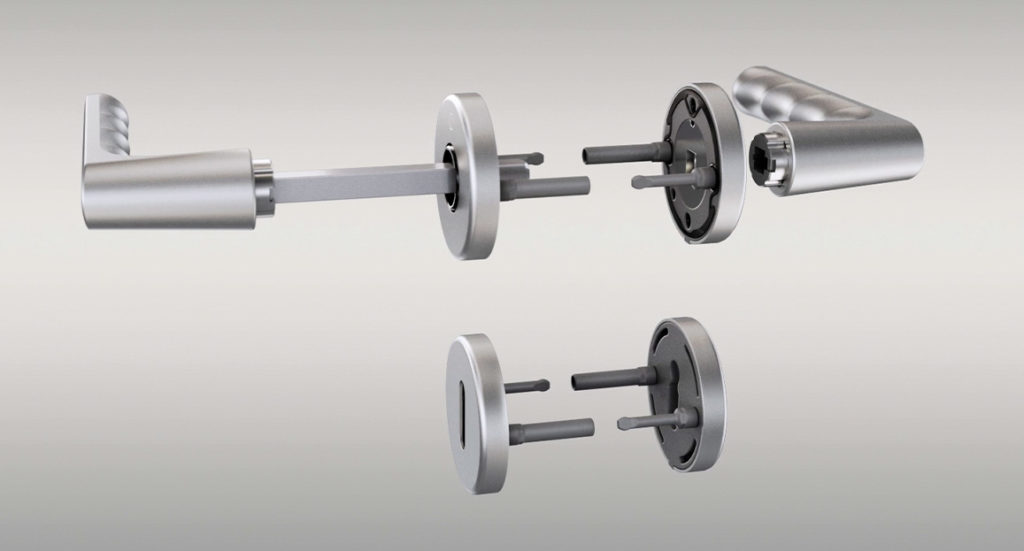

Illustration 2: HOPPE-Schraubenlose-Montage-SSTPlus-Serie-Hamburg-3D.jpg

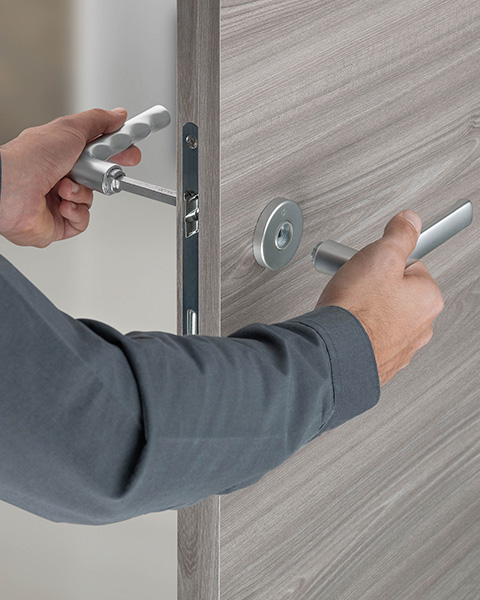

Illustration 3

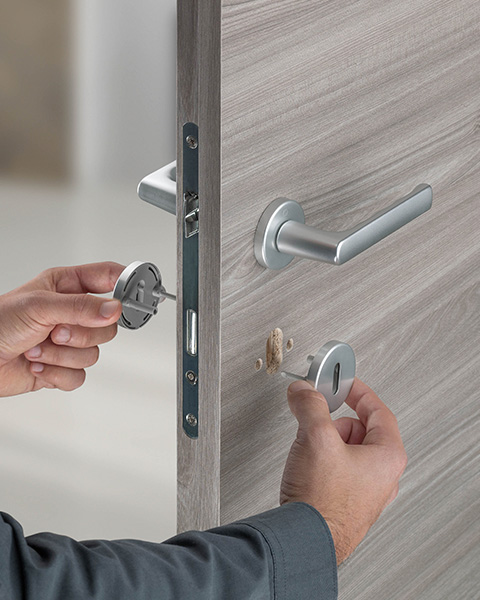

Illustration 4

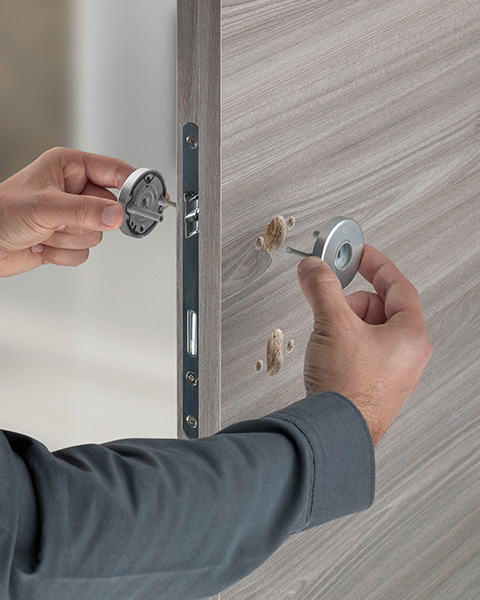

Illustration 5

Reliable technology
The through-going supporting lugs of the handle roses and escutcheons each consist of a pin and a sleeve made of glass fibre reinforced plastic. Pushing them into each other results in a stable fixing free from play.
This solution can be used for standard doors with standard locks. No special door preparation is necessary. Just two guide holes (Ø = 7 mm) are required for the through-going supporting lugs of the roses and escutcheons.
The technology has been tested in accordance with DIN EN 1906 and can be used in commercial buildings. Naturally, HOPPE guarantees the mechanical function of its Quick-FitPlus handle sets for 10 years.

Simple disassembly
A disassembly aid is provided for detaching the roses and escutcheons again. This is inserted into the handle or escutcheon and turned by 45 degrees. Pull firmly to release the connection and separate the two roses and escutcheons respectively from each other.

HOPPE Group is the European market leader in the development, manufacturing, and sales as well as marketing of architectural hardware systems for doors and windows. Founded in 1952, the company run by the owning family and based in Switzerland has around 2,300 employees worldwide. It is led by Wolf Hoppe and Christoph Hoppe in the second generation. Christian Hoppe, the first representative of the third generation, is now active in the company leadership.
