are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Floor springs
AR760

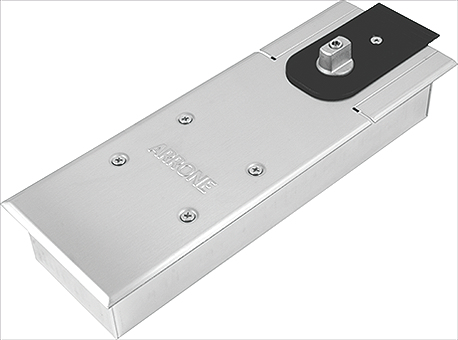

ARRONE floor spring
Model: AR760
Item number: 50011303
Finish: Satin Stainless Steel
ARRONE floor spring:
- Power size: 1 to 4 adjustable by spring tension
- Function: Closing, latching speed
- Maximum door width: 1,100 mm
- Maximum door weight: 80 kg
- Suitable for double action doors (supplied complete with accessory pack consisting of adjustable top centre, top and bottom strap)
- Successfully type tested for conformity to all the requirements of BS EN 1154:1997
- 3 | 8 | 4/1 | 1* | 1 | 4 - Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minute timber fire doors.
- CE Marked: AD5347
- CPR Declaration of Conformity Certificate: HUK0067
Action
Double action swing

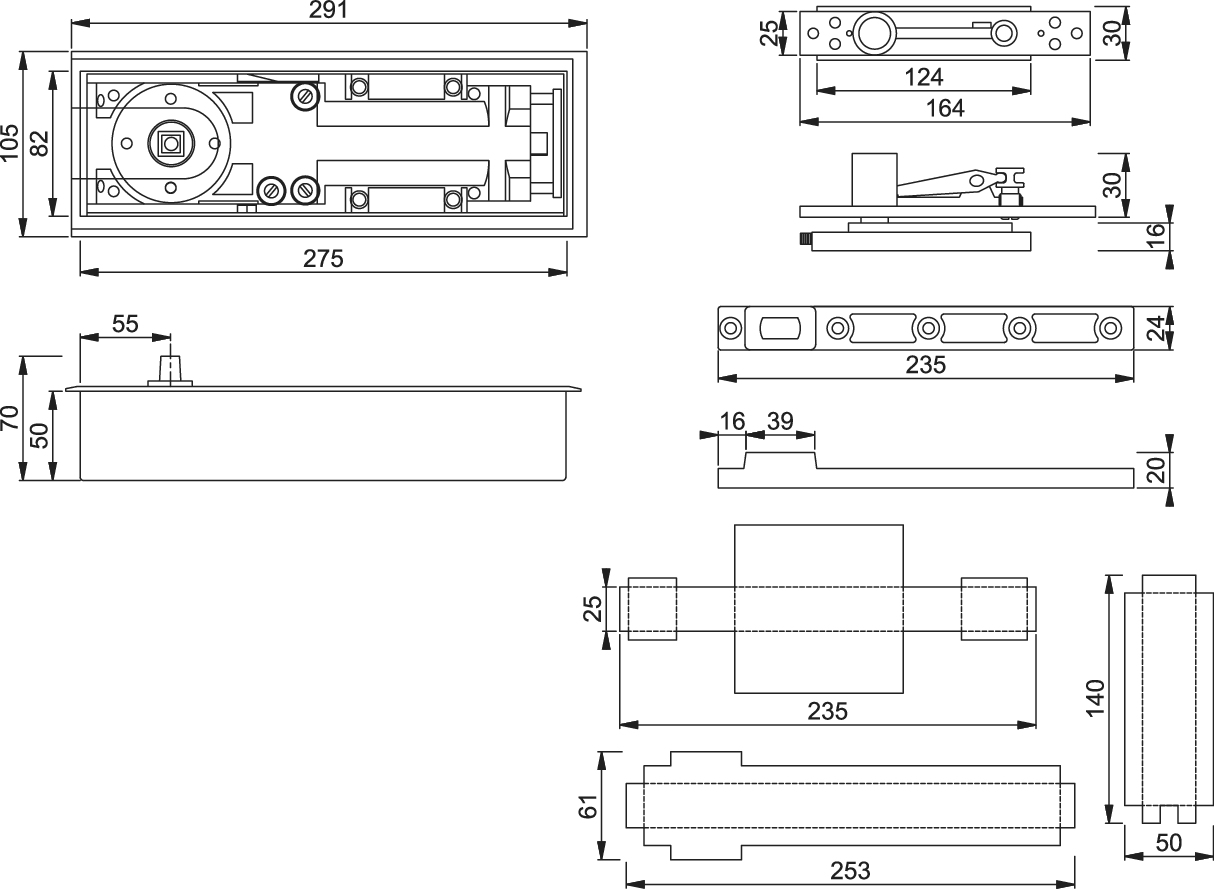

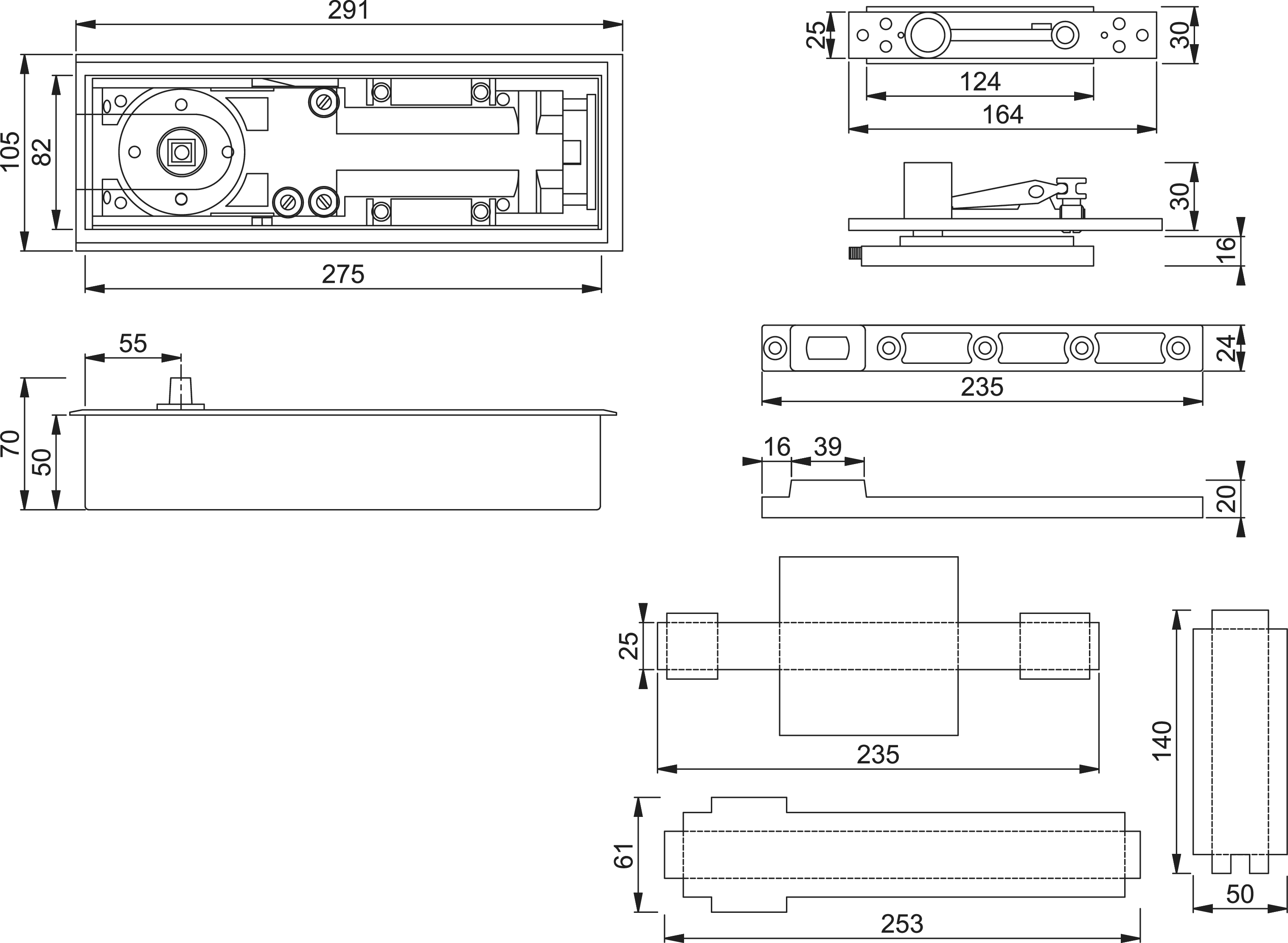

Dimensions
291x82x50 mm
Door weight
Maximum door mass 80 kg
Door width
max. 1100 mm
Function
Closing speed, latching speed
Opening Angle
max. 170° opening
Product type
none
Rose shape
None available
Version
none
Finish
Satin Stainless Steel
Commodity Class
ARRONE® FLOOR SPRINGS
Power size
1 to 4
