are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Floor springs
EX2950

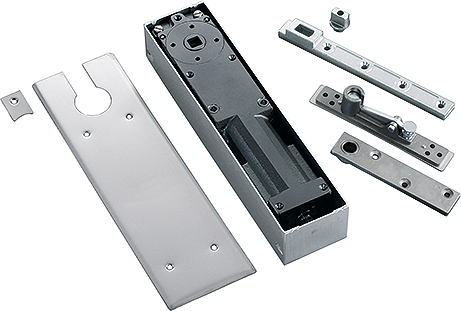

ARRONE floor spring
Model: EX2950
Item number: 8510297
Finish: Satin Stainless Steel
ARRONE floor spring:
- Power size: 1 to 4 adjustable by spring tension
- Function: Closing speed
- Maximum door width: 1,100 mm
- Maximum door weight: 80 kg
- Application: Double action
- Accessory pack consists of adjustable top centre, top and bottom strap
- Testing: BS EN 1154:1997; BS EN 1634 Part 1. Assessed for use on 30, 60 minute timber fire doors.
- CE Marked: AD0066
- Certifire approved: CF155; DOP: HUK0062
Action
Double action swing

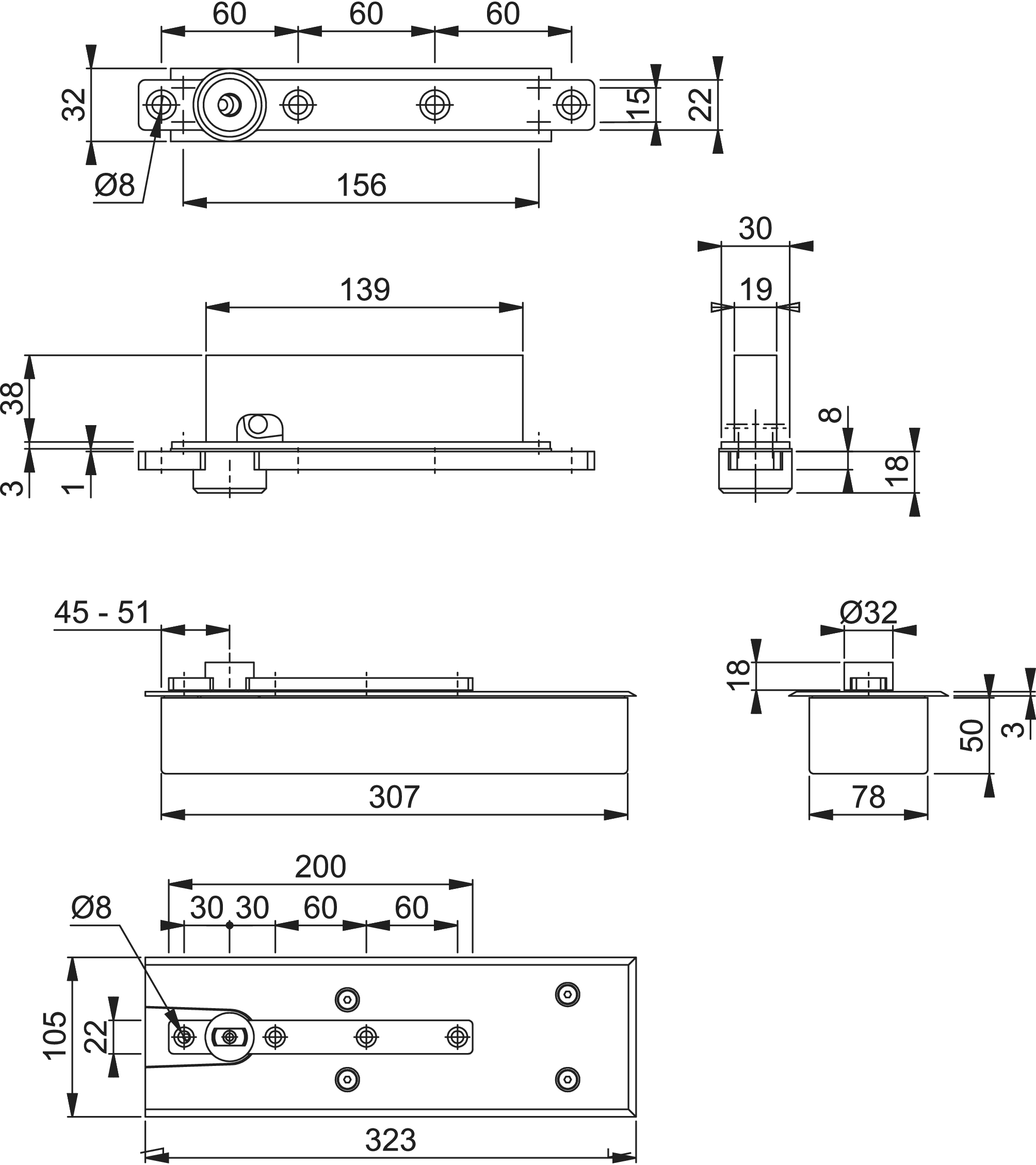

Dimensions
307x78x50 mm
Door weight
Maximum door mass 80 kg
Door width
max. 1100 mm
Function
Closing speed, power adjustment, back check
Opening Angle
max. 170° opening
Product type
none
Rose shape
None available
Version
none
Finish
Satin Stainless Steel
Commodity Class
ARRONE® FLOOR SPRINGS
Maximum door weight
Maximum door mass 400 kg
Power size
1 to 4
