AR683

ARRONE Euro profile 6 pin cylinder

AR683

Productline Model: AR683
Model: AR683
Item number: 89000255
Finish: MNP Matt Nickel Plated

ARRONE Euro profile 6 pin cylinder:

  • Cylinder type: key and turn cylinder
  • Keying function: coin release, privacy

Material
brass
Finish
MNP Matt Nickel Plated
Cylinder length
35/35 mm - 70 mm overall length
Cylinder finish
MNP Matt Nickel Plated
Finish knob
SNP satin nickel plated
Special function
coin release function
Keyway section
S - Section
Door type
wooden door/metal door
Fixings
M5x70 mm

Product data sheet

PDF
DOK_DS_89000255_SEN_AOF_V1.pdf
0,22 MB

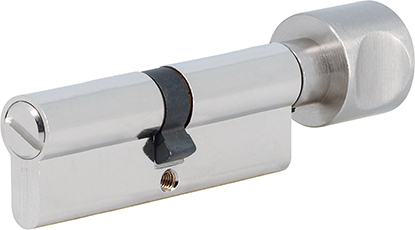

Product photo

JPG
0,08 MB

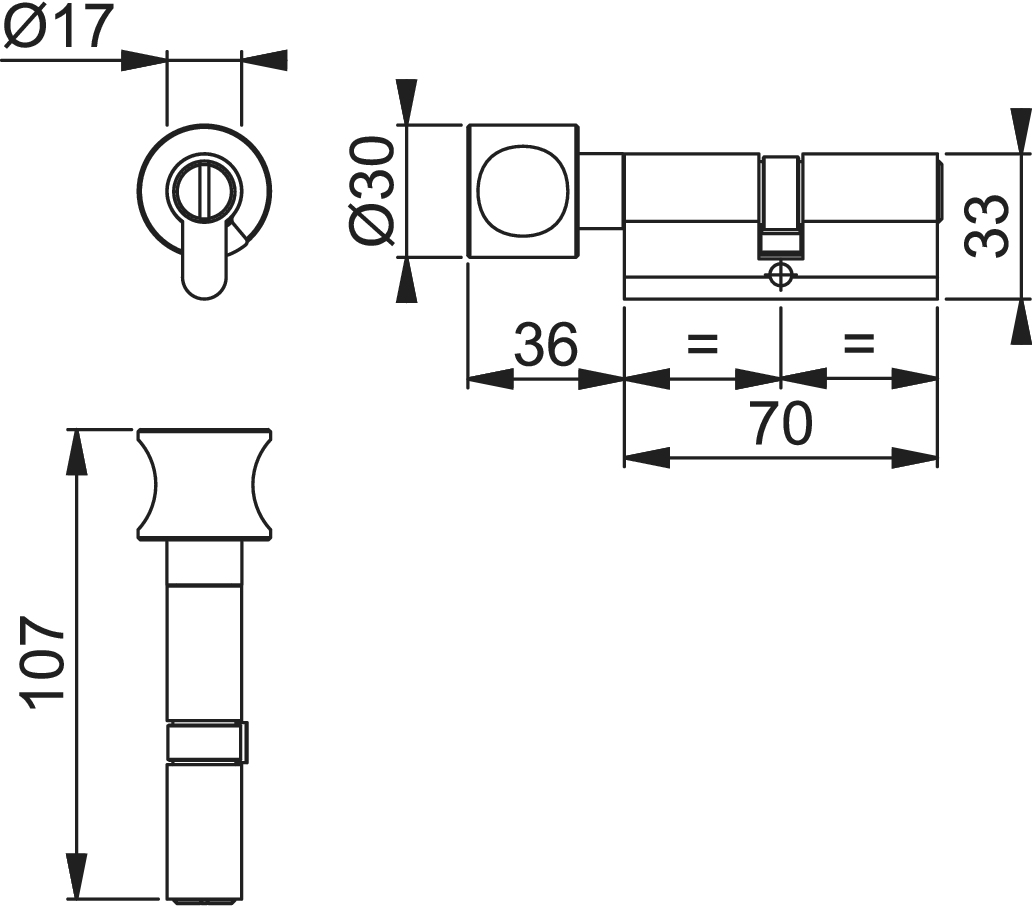

Technical drawing

DWG
DRW_CAT_AR-SK-683-70_SALL_ACAD_V1.dwg
0,08 MB
JPG
0,03 MB
JPG
0,08 MB
EPS
DRW_CAT_AR-SK-683-70_SALL_APR_V1.eps
1,01 MB
PDF
DRW_CAT_AR-SK-683-70_SALL_APRW_V1.pdf
0,21 MB
