Mortice Sashlocks
AR713

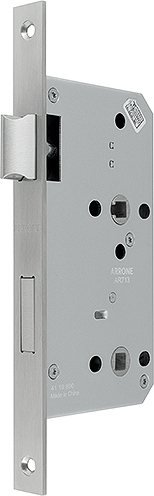

ARRONE non-rated bathroom lock
Model: AR713
Item number: 50014870
Finish: SSS Satin Stainless Steel
ARRONE non-rated bathroom lock:
- Function: latchbolt and deadbolt operation
- Deadbolt projection: 20 mm, single throw
- Forend/strike material: stainless steel grade 304
- Forend type: single
- Forend shape: square
Finish
SSS Satin Stainless Steel
Face plate finish
F69 satin stainless steel
(Key)Hole size
WC
Key hole distance
78 mm
Door thickness
44 mm
Shape
square
Backset
60 mm, pierced for furniture and escutcheons at 38 mm centres
Corner
square corner
Door type
wooden door
Fixings
Timber door

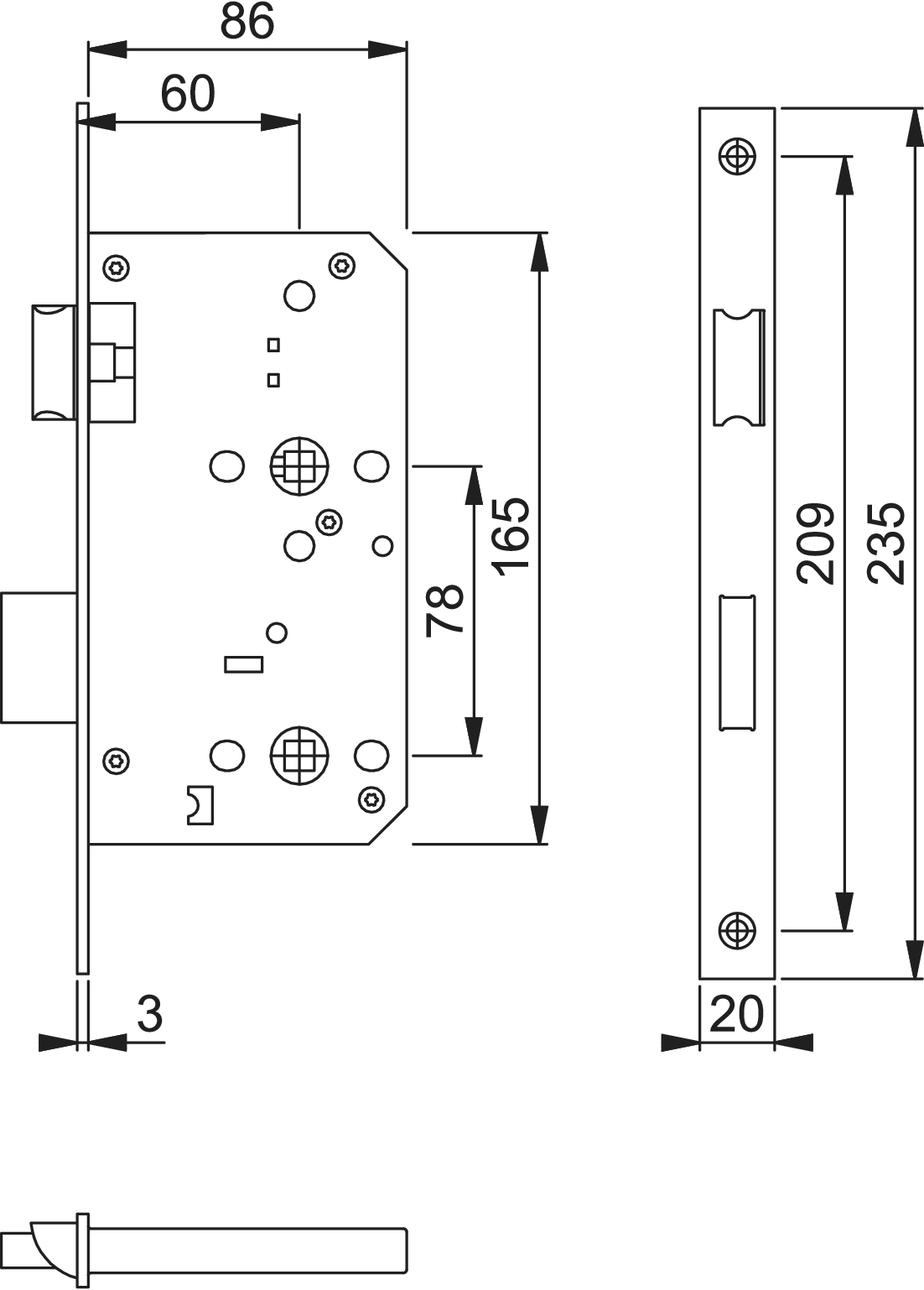

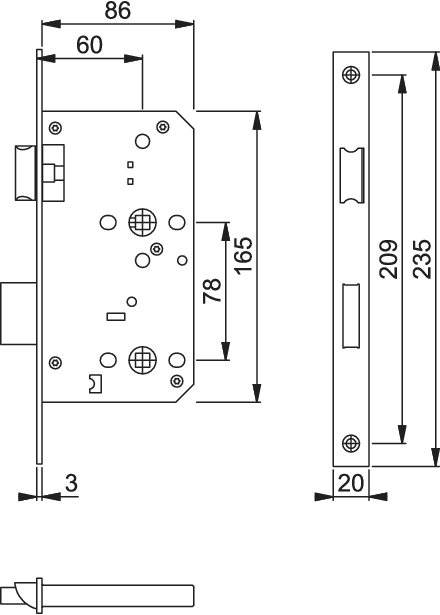

Case Dimensions
Depth: 83 mm length: 165 mm width: 16 mm, modular
