Mortice Nightlatches
AR8104

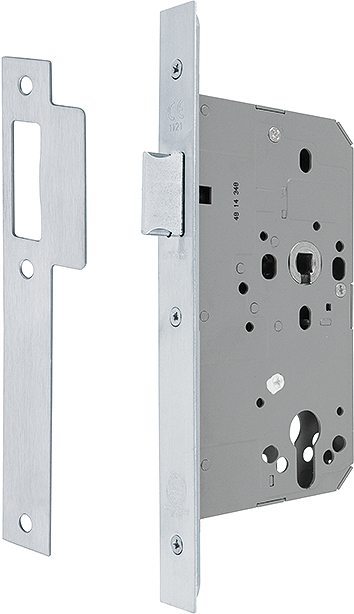

ARRONE mortice nightlatch case
Model: AR8104
Item number: 87134455
Finish: SSS Satin Stainless Steel
ARRONE mortice nightlatch case:
- Function: latchbolt operation
- Forend/strike material: stainless steel
- Forend type: double
- CE Marked: AG0087
BS EN 12209: 3 | M | 8 | 1* | 0 | G | - | B | 0 | 2 | 0 - Certifire approved: CF5022, CE DOP: HUK0034
- Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute steel fire doors.
- Meets dimensional recommendations of BS 8300 and ADM for locks
- * The AR8104 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
Finish
SSS Satin Stainless Steel
Face plate finish
F69 satin stainless steel
(Key)Hole size
Euro profile cylinder
Key hole distance
72 mm
Door thickness
44 mm
Shape
square
Backset
60 mm, pierced for furniture and escutcheons at 38 mm centres
Corner
square corner
Door type
wooden door
Fixings
Timber door

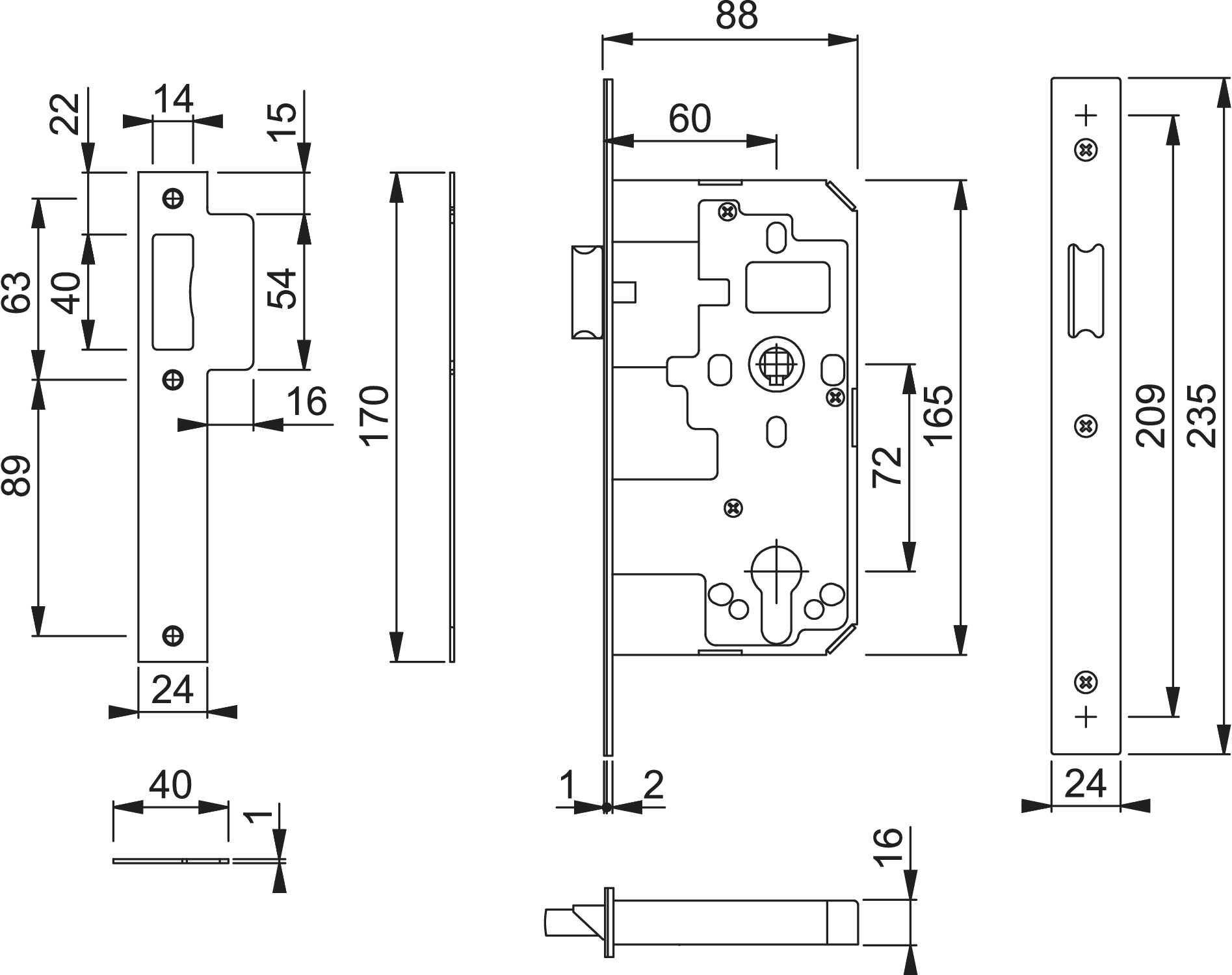

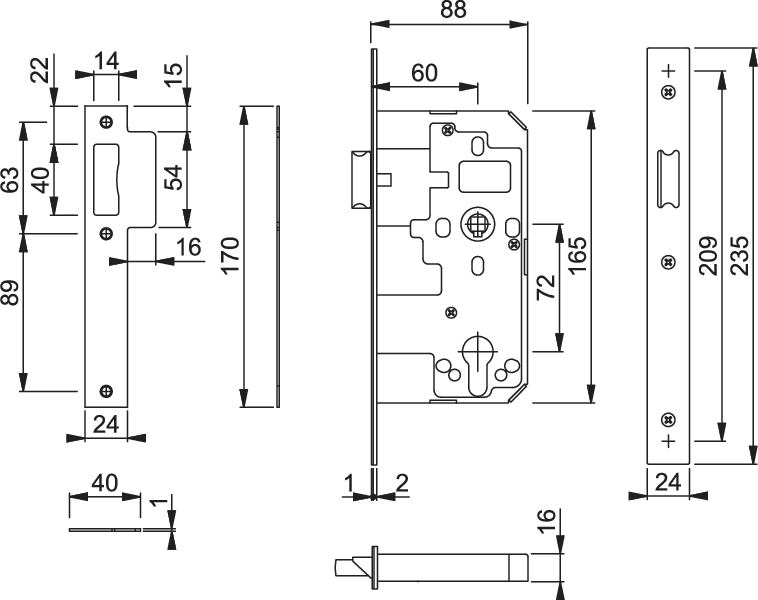

Case Dimensions
Depth: 88 mm length: 165 mm width: 16 mm, modular
radiused
