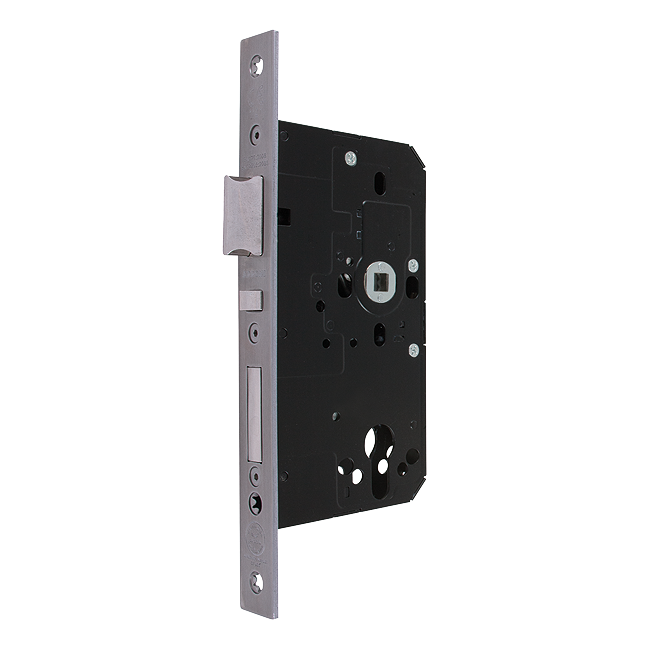

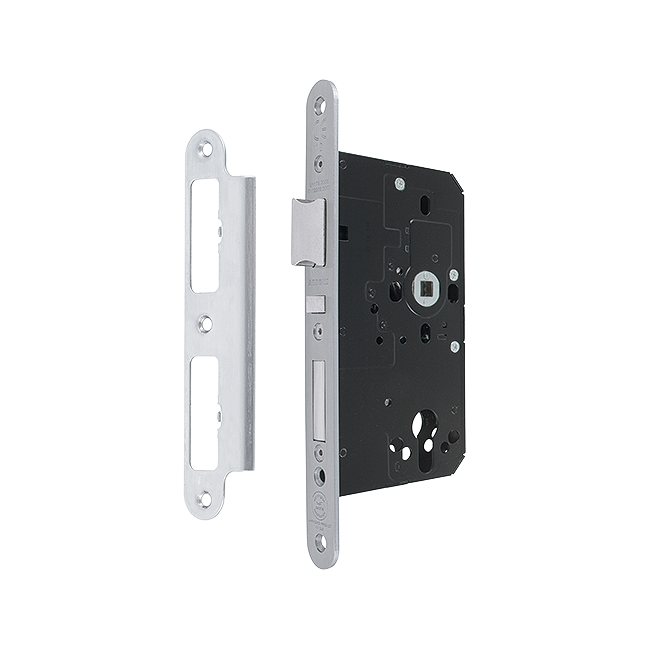

AR915

ARRONE mortice apartment lock case:

• Function: latchbolt and deadbolt with escape operation
• Deadbolt projection: 21 mm, single throw
• Forend/strike material: stainless steel
• Forend type: single
• Follower: 8 mm split follower with self locating plate to allow easy reversibility of the escape function. Supplied with AR227 (120 mm) ARRONE locking split spindle.
• CE Marked: AG0067, ABB010
  BS EN 12209: 3 | X | 8 | 1* | 0 | G | 4 | B | A | 3 | 0
  BS EN 179: 3 | 7 | 6 | B | 1 | 4 | 4 | 1 | A | B
  BS EN 179: 3 | 7 | 6 | B | 1 | 4 | 4 | 1 | A | D
• Certifire approved: CF530, CE DOP: HUK0012 and HUK0035
• Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute steel fire doors.
• To comply with BS EN 179 certification, only lever handles and associated fixings included in the test evidence must be used.
• Meets dimensional recommendations of BS 8300 and ADM for locks
• * The AR915 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
