Ball bearing hinges
AR8185

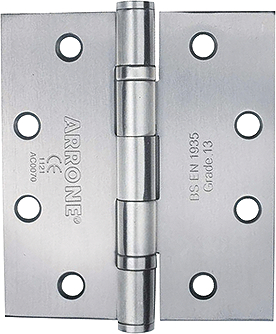

ARRONE ball bearing hinge
Model: AR8185
Item number: 89001785
Finish: Satin Stainless Steel
ARRONE ball bearing hinge:
- Material: Stainless Steel
- Hinge Grade: Grade 13
- Shape: Square
- Unit of measure (pack size): Sold as a pair
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 12/24 UNC machine screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634 Part 1. Assessed for use on 30 and 60 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AC0070
- Certifire approved: CF369; DOP: HUK0017

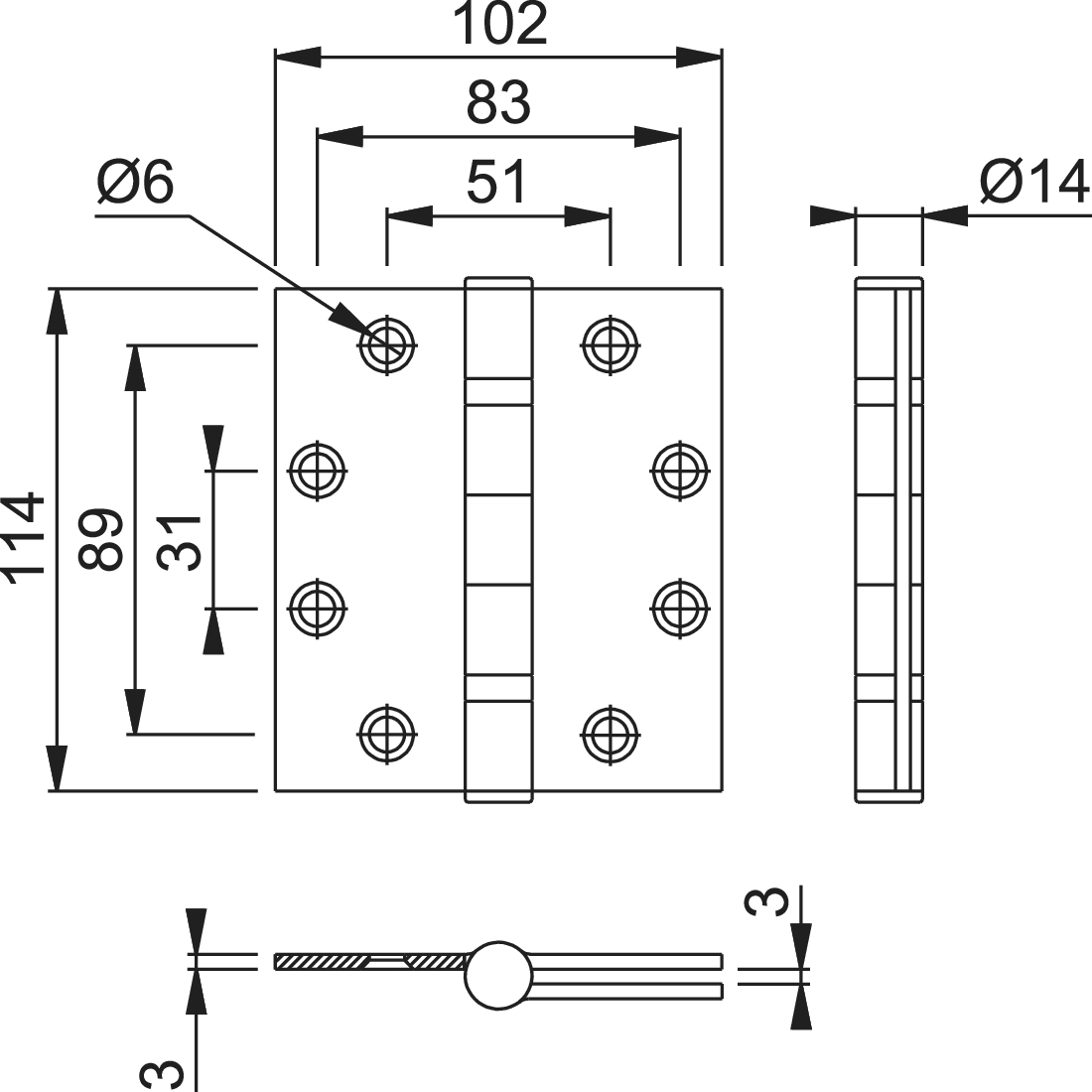

Dimension
114x102 mm
Drill
4 holes template drilled, countersunk
Fixings
Metal door
Leaf corner
square corners
Product type
none
Rose shape
None available
Version
none
Finish
Satin Stainless Steel
Material thickness
3 mm
Commodity Class
Ball bearing hinge
Door type
Metal door
