Lift and Slide Handle Sets for Patio Doors

Austin

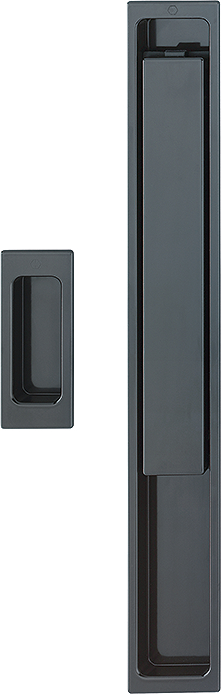

HOPPE aluminium flat lift/slide handle set for patio doors, exterior with recessed pull

Austin

Productline Model: HS-4615/4610/461
Model: HS-4615/4610/461
Item number: 11794945
Finish: F9005 jet black
Price class: I i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE aluminium flat lift/slide handle set for patio doors, exterior with recessed pull:

  • Bearing: fixed/movable handle
  • Stop-in position: 180°
  • Spindle: HOPPE solid spindle with radiused edges
  • Fixing: visible inside, bolt-through, M6 thread screws
  • Special feature: the set must be recessed into the profile

Product type
Flat lift/slide handle set for patio doors, exterior with flush pull
Version
standard
Rose shape
Angular rose (rectangular)
Commodity Class
aluminium
Finish
F9005 jet black
Door thickness
80-85 mm
Spindle size
10 mm
Spindle length
50 mm
Stop position in °
180°
Spindle size
10 mm / projecting 50 mm

Product data sheet

PDF
DOK_DS_11794945_SEN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,11 MB

Technical drawing

DWG
DRW_CAT_HS-4615-4610-461_SALL_ACAD_V3.dwg
0,06 MB
JPG
0,07 MB
JPG
0,21 MB
EPS
DRW_CAT_HS-4615-4610-461_SALL_APR_V3.eps
1,07 MB
PDF
DRW_CAT_HS-4615-4610-461_SALL_APRW_V3.pdf
0,22 MB
