Handle Sets for Interior Doors

Amsterdam

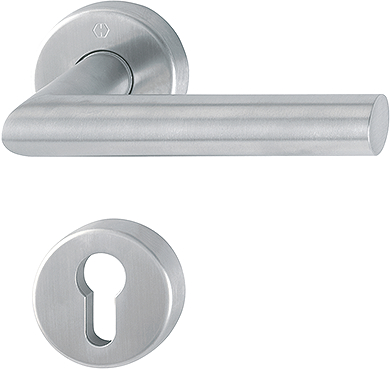

HOPPE stainless steel handle set on rose with escutcheons for interior doors

Amsterdam

Productline Model: E1400/42H/42HKVS
Model: E1400/42H/42HKVS
Item number: 10719730
Finish: F69 satin stainless steel
Price class: C i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE stainless steel handle set on rose with escutcheons for interior doors:

  • Tested to DIN EN 1906: 47*-0150A and PIVCERTPlus (1,000,000 test cycles), handle set for commercial applications
  • Bearing: sprung fixed/movable door handles, HOPPE Sertos clip-in connection with ball locking mechanism, maintenance-free slide bearing
  • Connection: hardened HOPPE solid profile spindle
  • Base: steel for handle roses, nylon for escutcheons, supporting lugs
  • Fixing: concealed, bolt-through; M5 thread screws for handle roses; multi-purpose screws for escutcheons, bidirectional
Exceptionally high corrosion resistance grade 5, EN 1670
Exceptionally high corrosion resistance
grade 5, EN 1670
n_pivcert_29v48

Product type
Set (handle/handle)
Version
Set on rose
Rose shape
Round rose
Commodity Class
stainless steel
Finish
F69 satin stainless steel
(Key)Hole size
Euro profile cylinder
Grade
4
Door thickness
40-45 mm
Spindle size
8 mm
Fixing
bolt-through-fixing
Spindle size
8 mm
Base material
rose=steel/polyamide nylon, escutcheoon=polyamide nylon

Product data sheet

PDF
DOK_DS_10719730_SEN_AOF_V1.pdf
0,27 MB

Product photo

JPG
0,08 MB

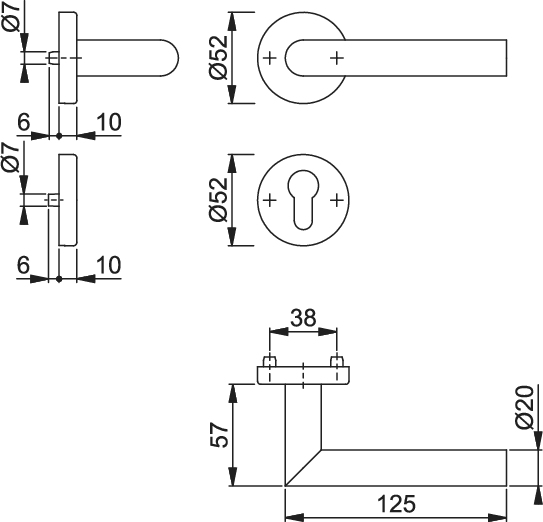

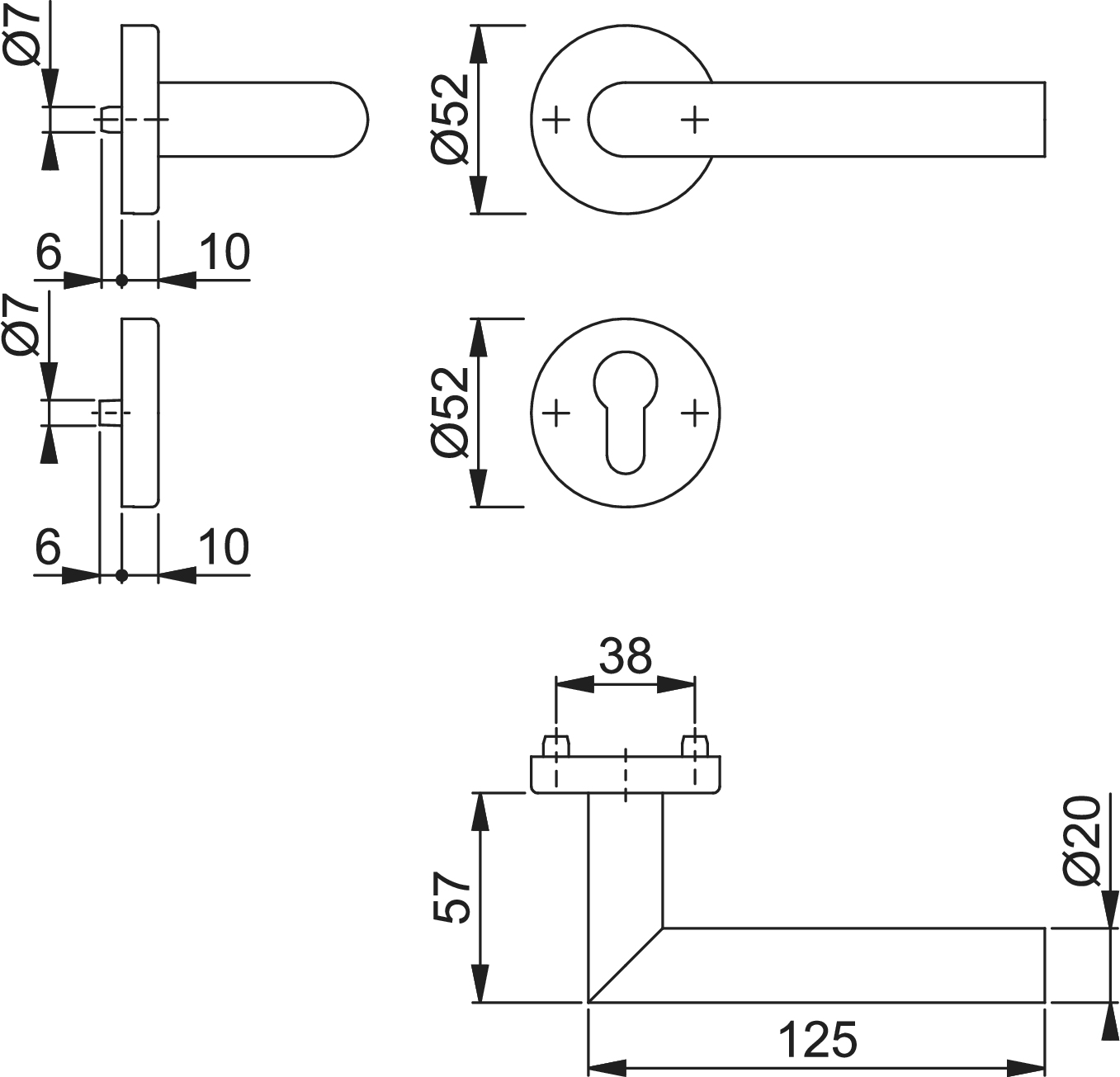

Technical drawing

DWG
DRW_CAT_E1400-42H-42HKVS-PZ_SALL_ACAD_V1.dwg
0,04 MB
JPG
0,04 MB
JPG
0,12 MB
EPS
DRW_CAT_E1400-42H-42HKVS-PZ_SALL_APR_V1.eps
0,31 MB
PDF
DRW_CAT_E1400-42H-42HKVS-PZ_SALL_APRW_V1.pdf
0,13 MB
