Handle Sets for Profile Doors

Tôkyô

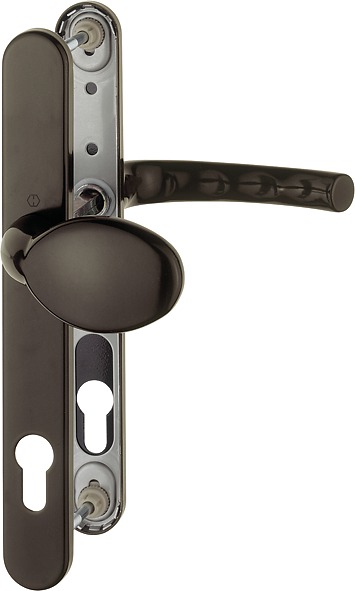

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors

Tôkyô

Productline Model: 76G/3346/1710RH
Model: 76G/3346/1710RH
Item number: 2137799
Finish: F8707 dark brown
Price class: C i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:

  • Bearing: fixed cranked knob (pad) on the outside, suitable for right and left hand; fixed/movable door handle on the inside, maintenance-free slide bearing
  • Connection: HOPPE profile FDW-spindle
  • Base: stainless steel, supporting lugs
  • Fixing: visible inside, bolt-through, M6 thread screws, cover caps for screw heads

Product type
Knob (pad) 76G/handle set
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F8707 dark brown
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Door thickness
67-72 mm
Spindle size
8 mm
Spindle size
8 mm
Base material
stainless steel

Product data sheet

PDF
DOK_DS_2137799_SEN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,03 MB

Technical drawing

DWG
DRW_CAT_76G-3346-1710RH-PZ-GL78-3-Nocken-M6_SALL_ACAD_V1.dwg
0,10 MB
JPG
0,08 MB
JPG
0,26 MB
EPS
DRW_CAT_76G-3346-1710RH-PZ-GL78-3-Nocken-M6_SALL_APR_V1.eps
1,11 MB
PDF
DRW_CAT_76G-3346-1710RH-PZ-GL78-3-Nocken-M6_SALL_APRW_V1.pdf
0,14 MB
