Window Handles

New York

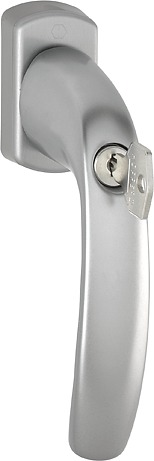

HOPPE aluminium lockable turn/tilt window handle with Secu100

New York
View further versions of the series

Productline Model: 0810S/U10 100NM
Model: 0810S/U10 100NM
Item number: 3551318
Finish: F9 aluminium steel effect
Price class: B i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

  Remember and compare   Switch to wishlist   Download product data sheet  Search distributor

HOPPE aluminium lockable turn/tilt window handle with Secu100:

  • Tested to DIN EN 13126-3: H2/180-0-3-0-2-3-C1-2 and RAL-GZ 607/9, RAL100; meets the requirements of DIN EN 1627-1630 RC1-6
  • Locking mechanism: push cylinder, reversible key
  • Stop-in position: 90°
  • Cover: partial cover cap
  • Base: nylon, supporting lugs
  • Spindle: HOPPE solid spindle
  • Fixing: concealed, M5 thread screws
Burglary resistance for lockable window handles, Protection against twisting and tearing off, Withstands forces up to 100 Nm (RAL100),
  • Burglary resistance for lockable window handles
  • Protection against twisting and tearing off
  • Withstands forces up to 100 Nm (RAL100)
Keyed locking
Keyed locking
Category of use grade 2 to DIN EN 13126-3
Category of use grade 2 to
DIN EN 13126-3
n_ral607_9_gz607/9

Product type
Lockable turn/tilt window handle
Version
Secu100
Rose shape
Angular rose (rectangular)
Commodity Class
aluminium
Finish
F9 aluminium steel effect
Grade
2
Spindle size
7 mm
Spindle length
37 mm
Diameter lug
10 mm
Stop position in °
90°
Locking mechanism
push cylinder H001
Rose height
10.2 mm

Product data sheet

PDF
DOK_DS_3551318_SEN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,01 MB

Technical drawing

DWG
DRW_CAT_0810S-U10-100NM_SALL_ACAD_V2.dwg
0,05 MB
JPG
0,03 MB
JPG
0,10 MB
EPS
DRW_CAT_0810S-U10-100NM_SALL_APR_V2.eps
0,31 MB
PDF
DRW_CAT_0810S-U10-100NM_SALL_APRW_V2.pdf
0,14 MB
