Handle Sets for Profile Doors

London

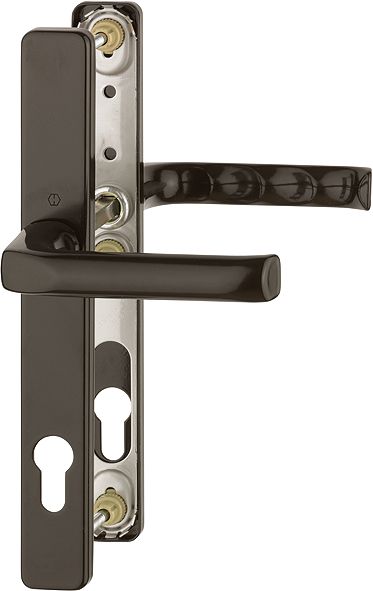

HOPPE aluminium handle set on narrow backplate for profile doors

London

Productline Model: 113/2246
Model: 113/2246
Item number: 2205595
Finish: F8707 dark brown
Price class: B i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Bearing: fixed/movable door handles, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Base: stainless steel, supporting lugs
  • Fixing: visible inside, bolt-through, M6 thread screws, cover caps for screw heads

Product type
Set (handle/handle)
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F8707 dark brown
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Door thickness
67-72 mm
Spindle size
8 mm
Accessories
80 mm screws
Spindle size
8 mm
Base material
stainless steel

Product data sheet

PDF
DOK_DS_2205595_SEN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,10 MB

Technical drawing

DWG
DRW_CAT_113-2246-PZ-GL78-3-Nocken-M6_SALL_ACAD_V2.dwg
0,13 MB
JPG
0,08 MB
JPG
0,25 MB
EPS
DRW_CAT_113-2246-PZ-GL78-3-Nocken-M6_SALL_APR_V2.eps
0,41 MB
PDF
DRW_CAT_113-2246-PZ-GL78-3-Nocken-M6_SALL_APRW_V2.pdf
0,16 MB
