Lift and Slide Handle Sets for Patio Doors

Atlanta

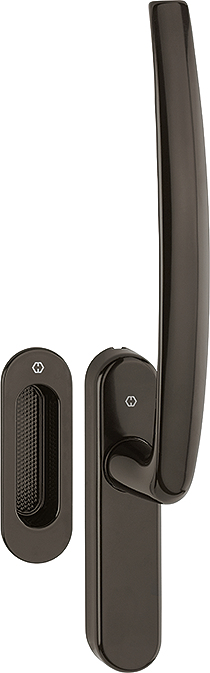

HOPPE aluminium lift/slide handle set for patio doors, exterior with recessed pull

Atlanta

Productline Model: HS-0530/431N-AS/422
Model: HS-0530/431N-AS/422
Item number: 11642002
Finish: F8707 dark brown
Price class: D i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE aluminium lift/slide handle set for patio doors, exterior with recessed pull:

  • Bearing: fixed/movable handle
  • Stop-in position: 180°
  • Cover: full cover cap
  • Base: outside: none, inside: zamak, supporting lugs
  • Spindle: loose HOPPE solid spindle with radiused edges
  • Fixing: concealed, bolt-through, M6 thread screws

Product type
Llift/slide handle set for patio doors, exterior with flush pull
Version
standard
Rose shape
Round rose (rounded)
Commodity Class
aluminium
Finish
F8707 dark brown
(Key)Hole size
blank
Door thickness
75-80 mm
Spindle size
10 mm
Stop position in °
180°
Spindle size
10x73 mm
Base material
insinde=zamak

Product data sheet

PDF
DOK_DS_11642002_SEN_AOF_V1.pdf
0,24 MB

Product photo

JPG
0,08 MB

Technical drawing

DWG
DRW_CAT_HS-0530-431N-AS-422-UG_SALL_ACAD_V1.dwg
0,07 MB
JPG
0,07 MB
JPG
0,21 MB
EPS
DRW_CAT_HS-0530-431N-AS-422-UG_SALL_APR_V1.eps
0,34 MB
PDF
DRW_CAT_HS-0530-431N-AS-422-UG_SALL_APRW_V1.pdf
0,20 MB
