Window Handles

Atlanta

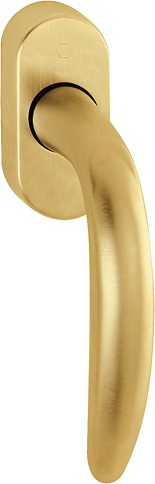

HOPPE brass turn/tilt window handle with Secustik and VarioFit

Atlanta

Productline Model: M0530/US956
Model: M0530/US956
Item number: 11568775
Finish: F72 satin brass
Price class: B i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE brass turn/tilt window handle with Secustik and VarioFit:

  • Tested to DIN EN 13126-3: H2/180-0-4-0-0-0-C1-2 and RAL-GZ 607/9
  • Stop-in position: 90°
  • Cover: full cover cap
  • Base: nylon, supporting lugs
  • Spindle: HOPPE solid spindle, adjustable length of 10 mm, smooth adjustment thanks to the pressure spring integrated in the handle neck
  • Fixing: concealed, M5 thread screws
  • Special feature: built-in basic security
Very high corrosion resistance grade 4, EN 1670
Very high corrosion resistance
grade 4, EN 1670

Product type
Turn/tilt window handle
Version
Secustik
Rose shape
Round rose (rounded)
Commodity Class
brass
Finish
F72 satin brass
Grade
2
Spindle size
7 mm
Spindle length
32-42 mm
Diameter lug
10 mm
Stop position in °
90°
Base material
polyamide nylon

Product data sheet

PDF
DOK_DS_11568775_SEN_AOF_V1.pdf
0,26 MB

Product photo

JPG
0,01 MB

Technical drawing

DWG
DRW_CAT_M0530-US956_SALL_ACAD_V2.dwg
0,05 MB
JPG
0,03 MB
JPG
0,09 MB
EPS
DRW_CAT_M0530-US956_SALL_APR_V2.eps
0,33 MB
PDF
DRW_CAT_M0530-US956_SALL_APRW_V2.pdf
0,14 MB
