Ball bearing hinges
AR8184

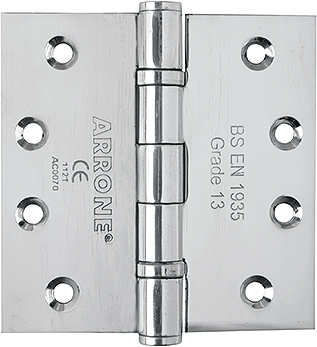

ARRONE ball bearing hinge
Model: AR8184
Item number: 89002114
Finish: Satin Stainless Steel
ARRONE ball bearing hinge:
- Material: Stainless Steel
- Hinge Grade: Grade 13
- Shape: Square
- Unit of measure (pack size): Sold as a pair
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634 Part 1. Assessed for use on 30 and 60 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AC0070, UKCA Marked: AC7678
- Certifire approved: CF369, CE DOP: HUK0017, UKCA DOP: HUK0017-UK
Dimension
102x102 mm
Bearing
2 Ball Bearing Hinge

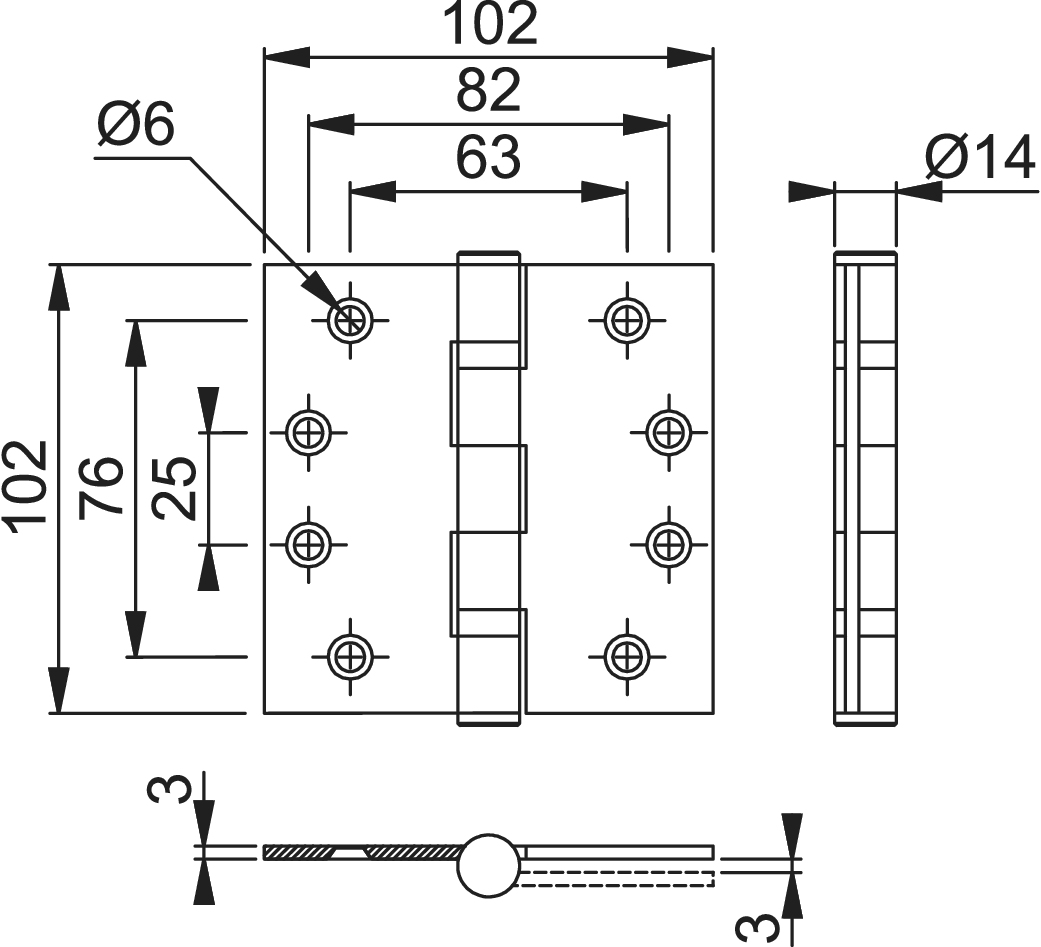

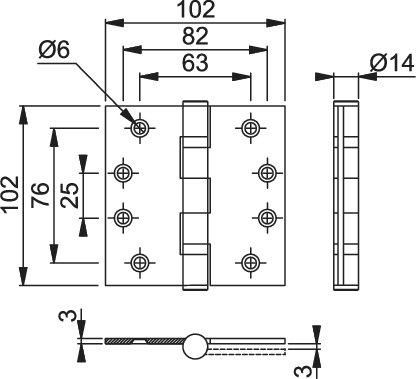

Dimensions
102x102x3 mm
Drill
4 holes template drilled, countersunk
Fixings
Timber door
Leaf corner
square corners
Product type
none
Rose shape
None available
Version
none
Finish
Satin Stainless Steel
Material thickness
3 mm
Commodity Class
Ball bearing hinge
Door type
wooden door
