are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Spring hinges
AR8282

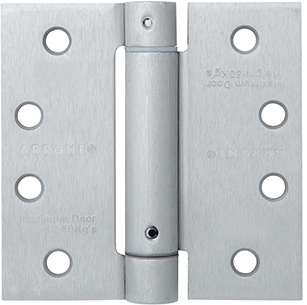

ARRONE spring hinge
Model: AR8282
Item number: 87109017
Finish: Satin Stainless Steel
ARRONE spring hinge:
- Material: Stainless Steel
- Shape: Square
- Unit of measure (pack size): Sold as packs of 3 (2 spring hinges and 1 unsprung unit)
- Door weight: Suitable for doors weighing up to 60 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1634 Part 1. Assessed for use on 60 minutes timber fire doors.

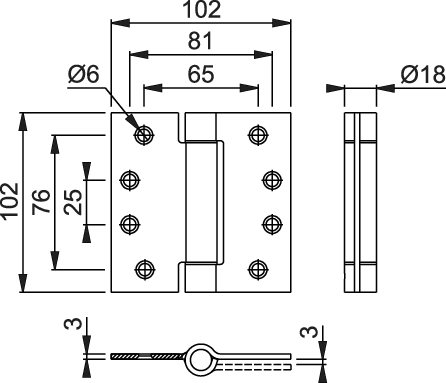

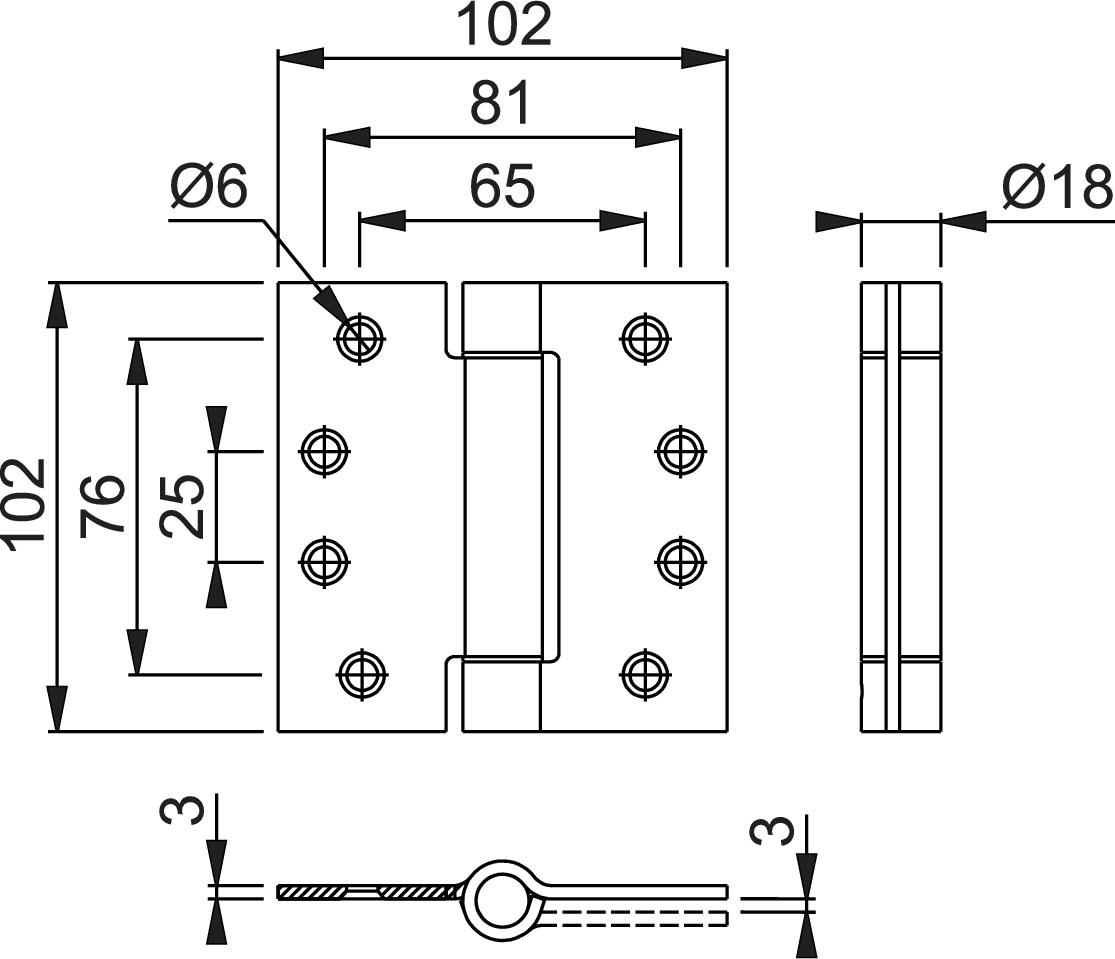

Dimension
102x102 mm
Bearing
spring
Dimensions
102x102x3 mm
Drill
4 holes template drilled, countersunk
Fixings
Timber door
Leaf corner
square corners
Product type
none
Rose shape
None available
Version
none
Finish
Satin Stainless Steel
Material thickness
2.5 mm
Commodity Class
SPRING HINGE
Door type
wooden door
