Handle Sets for Profile Doors

London

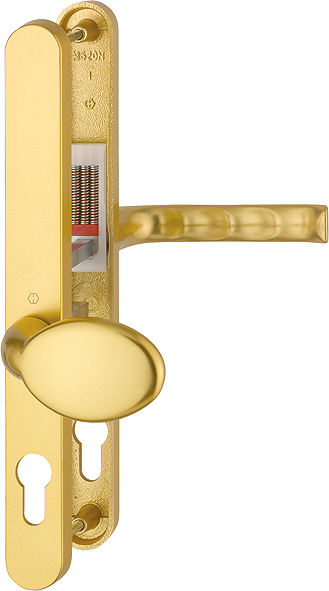

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors

London
View further versions of the series

Productline Model: 76G/3620N/113
Model: 76G/3620N/113
Item number: 831890
Finish: F3 aluminium gold effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0130A
  • Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Knob(pad)/handle set
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F3 aluminium gold effect
(Key)Hole size
Euro profile cylinder
Key hole distance
62 mm
Grade
2
Door thickness
66-71 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_831890_SEN-GB_AOF_V1.pdf
0,27 MB

Product photo

JPG
0,13 MB

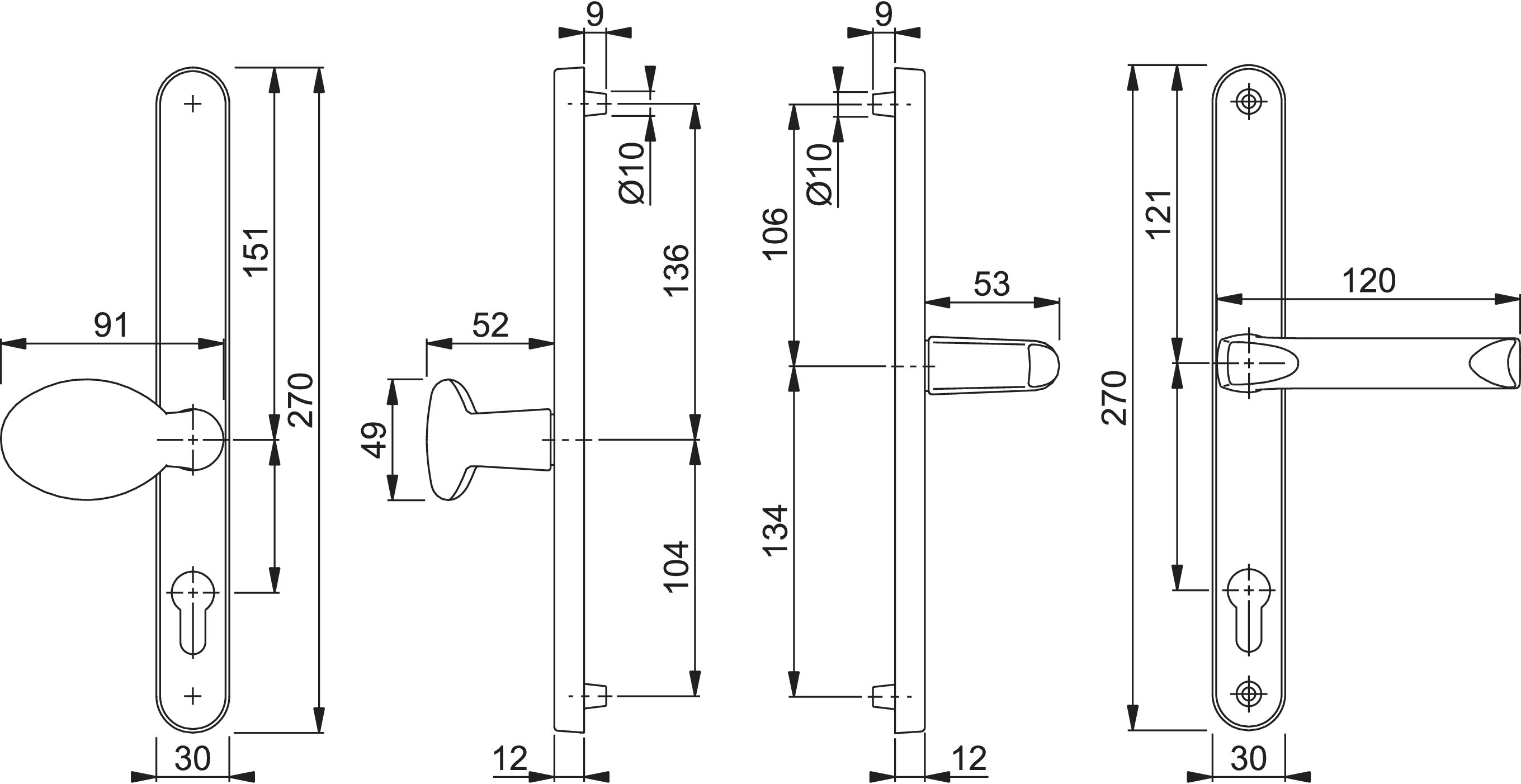

Technical drawing

DWG
DRW_CAT_76G-3620N-113-PZ62-92_SALL_ACAD_V1.dwg
0,09 MB
JPG
0,08 MB
JPG
0,26 MB
EPS
DRW_CAT_76G-3620N-113-PZ62-92_SALL_APR_V1.eps
0,37 MB
PDF
DRW_CAT_76G-3620N-113-PZ62-92_SALL_APRW_V1.pdf
0,15 MB
