Handle Sets for Profile Doors

London

HOPPE aluminium handle set on narrow backplate for profile doors

London
View further versions of the series

Productline Model: 113/3623N
Model: 113/3623N
Item number: 1714793
Finish: F3 aluminium gold effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0130A
  • Bearing: fixed/movable handles, spring cassettes, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Set (handle/handle)
Version
Set on narrow backplate (3623N)
Commodity Class
aluminium
Finish
F3 aluminium gold effect
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Grade
2
Door thickness
62-71 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_1714793_SEN-GB_AOF_V1.pdf
0,27 MB

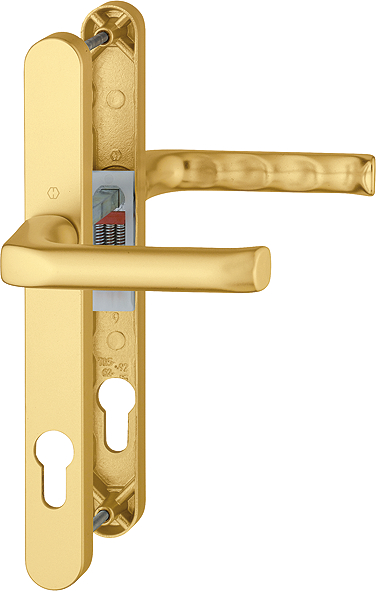

Product photo

JPG
0,13 MB

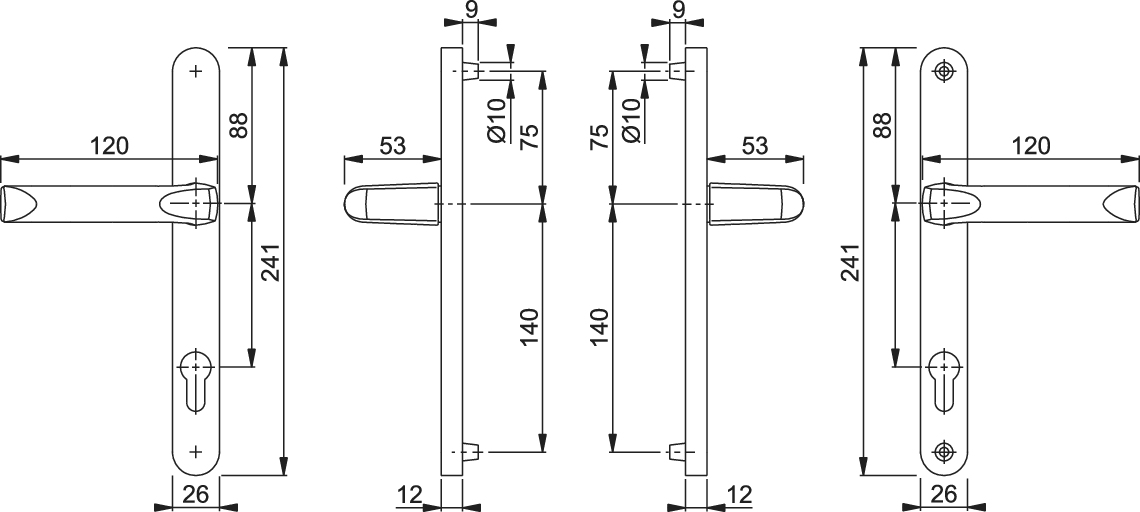

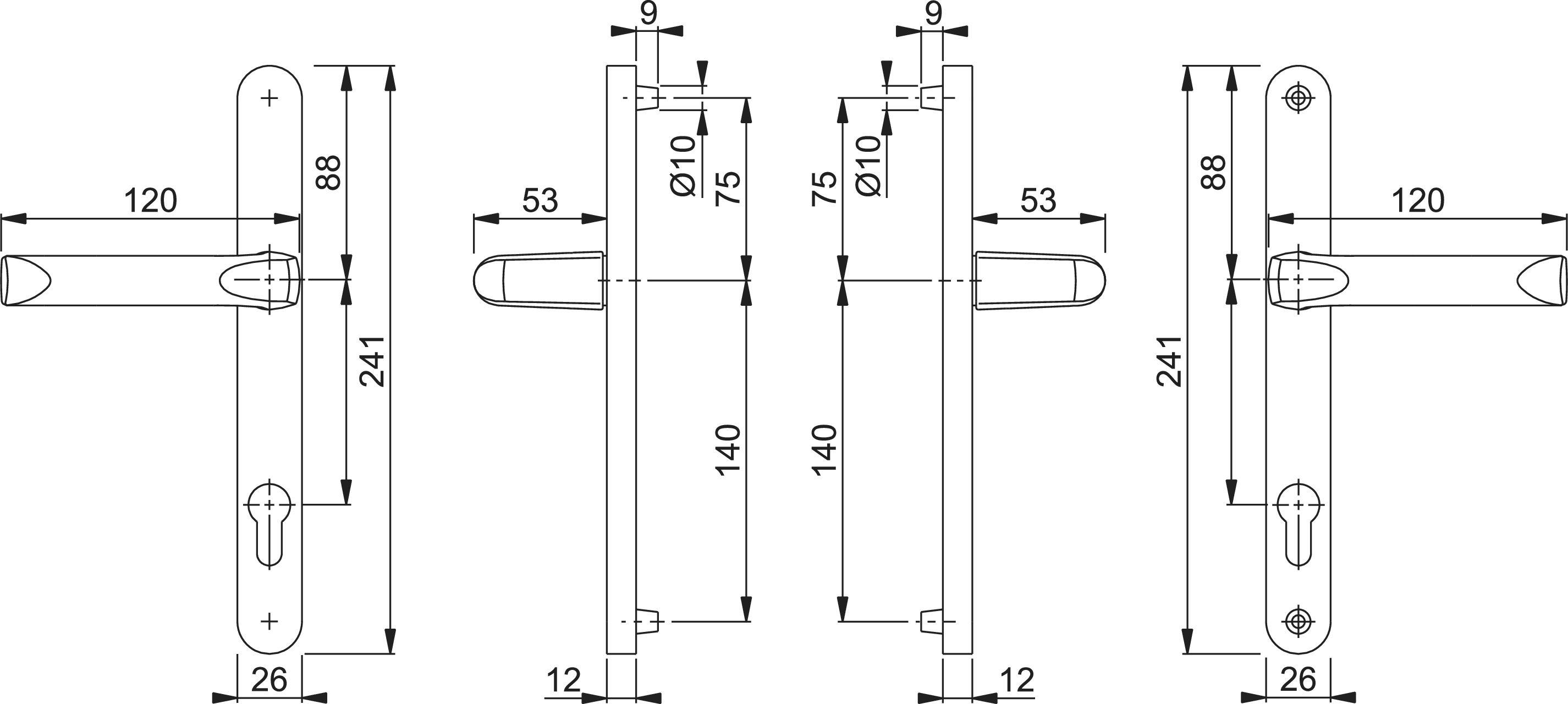

Technical drawing

DWG
DRW_CAT_113-3623N-PZ_SALL_ACAD_V1.dwg
0,06 MB
JPG
0,08 MB
JPG
0,24 MB
EPS
DRW_CAT_113-3623N-PZ_SALL_APR_V1.eps
0,34 MB
PDF
DRW_CAT_113-3623N-PZ_SALL_APRW_V1.pdf
0,14 MB
