Handles for French and Patio Doors

London

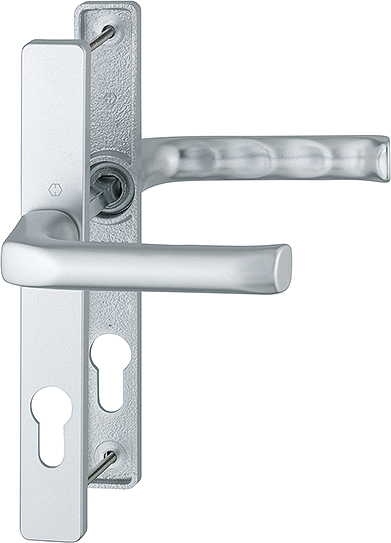

HOPPE aluminium handle set on narrow backplate for French doors

London

Productline Model: 113/200LM
Model: 113/200LM
Item number: 1729881
Finish: F1 aluminium silver effect

HOPPE aluminium handle set on narrow backplate for French doors:

  • Bearing: fixed/movable door handles, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: outside with supporting lugs, inside without
  • Fixing: visible inside, bolt-through, M4 thread screws

Product type
Set (handle/handle)
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
70 mm
Door thickness
58-62 mm + 68-72 mm
Spindle size
7 mm
Spindle size
7 mm

Product data sheet

PDF
DOK_DS_1729881_SEN-GB_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,12 MB

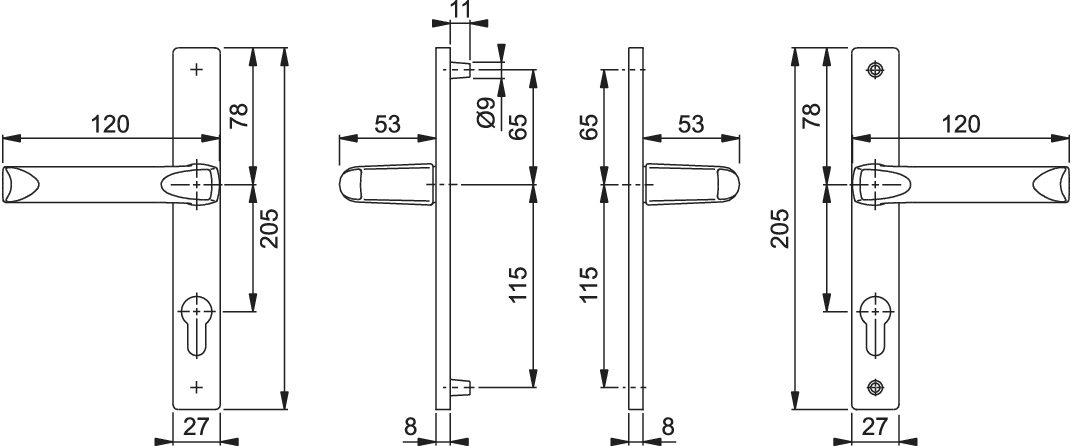

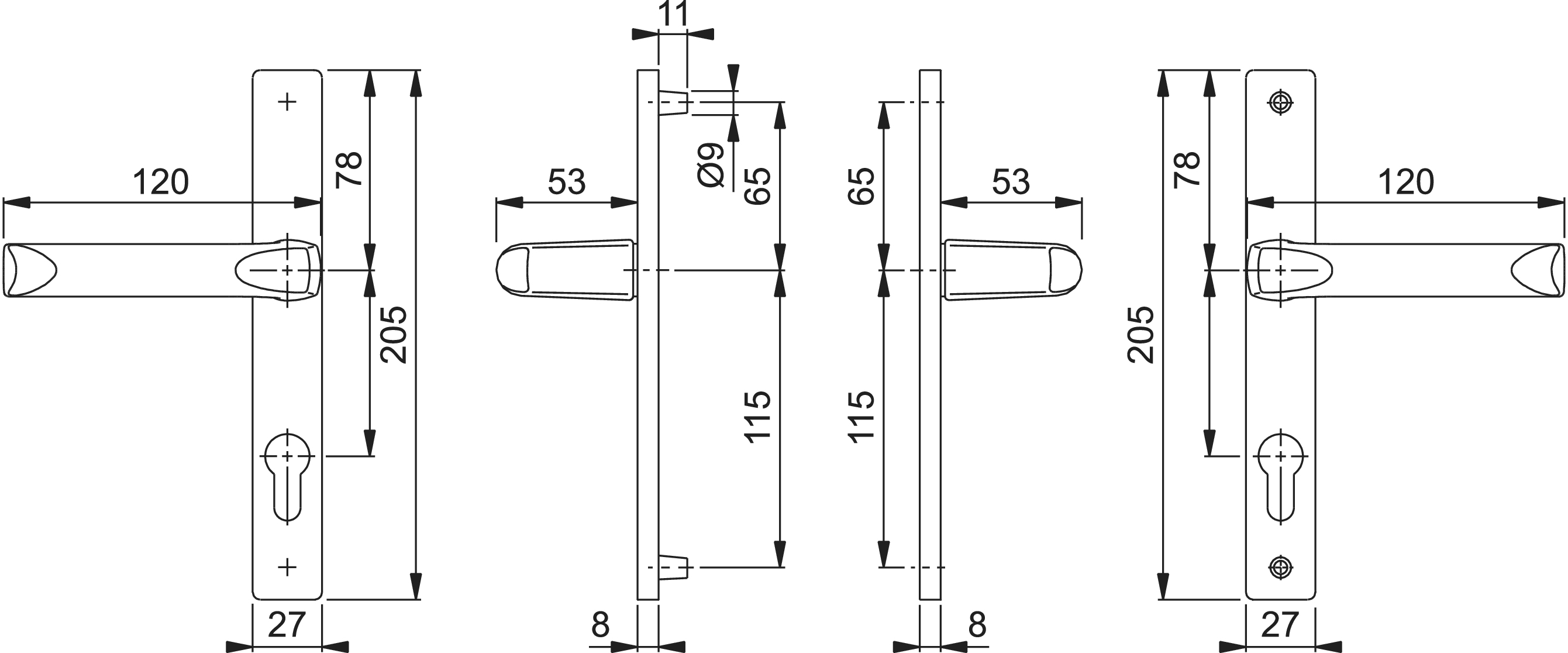

Technical drawing

DWG
DRW_CAT_113-200LM-PZ_SALL_ACAD_V1.dwg
0,11 MB
JPG
0,07 MB
JPG
0,21 MB
EPS
DRW_CAT_113-200LM-PZ_SALL_APR_V1.eps
0,36 MB
PDF
DRW_CAT_113-200LM-PZ_SALL_APRW_V1.pdf
0,15 MB
