Handle Sets for Profile Doors

London

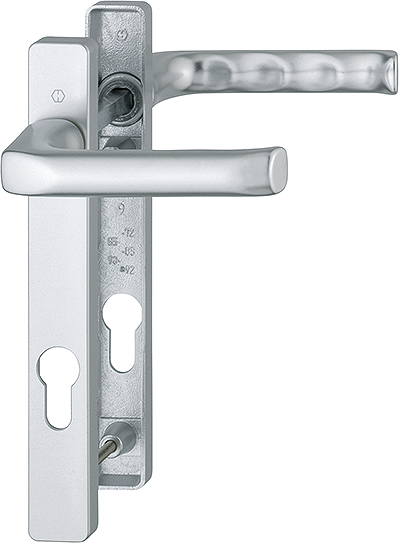

HOPPE aluminium handle set on narrow backplate for profile doors

London
View further versions of the series

Productline Model: 113/366M
Model: 113/366M
Item number: 618590
Finish: F1 aluminium silver effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0130U
  • Bearing: fixed/movable door handles, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Set (handle/handle)
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Grade
2
Door thickness
56-70 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_618590_SEN-GB_AOF_V1.pdf
0,26 MB

Product photo

JPG
0,12 MB

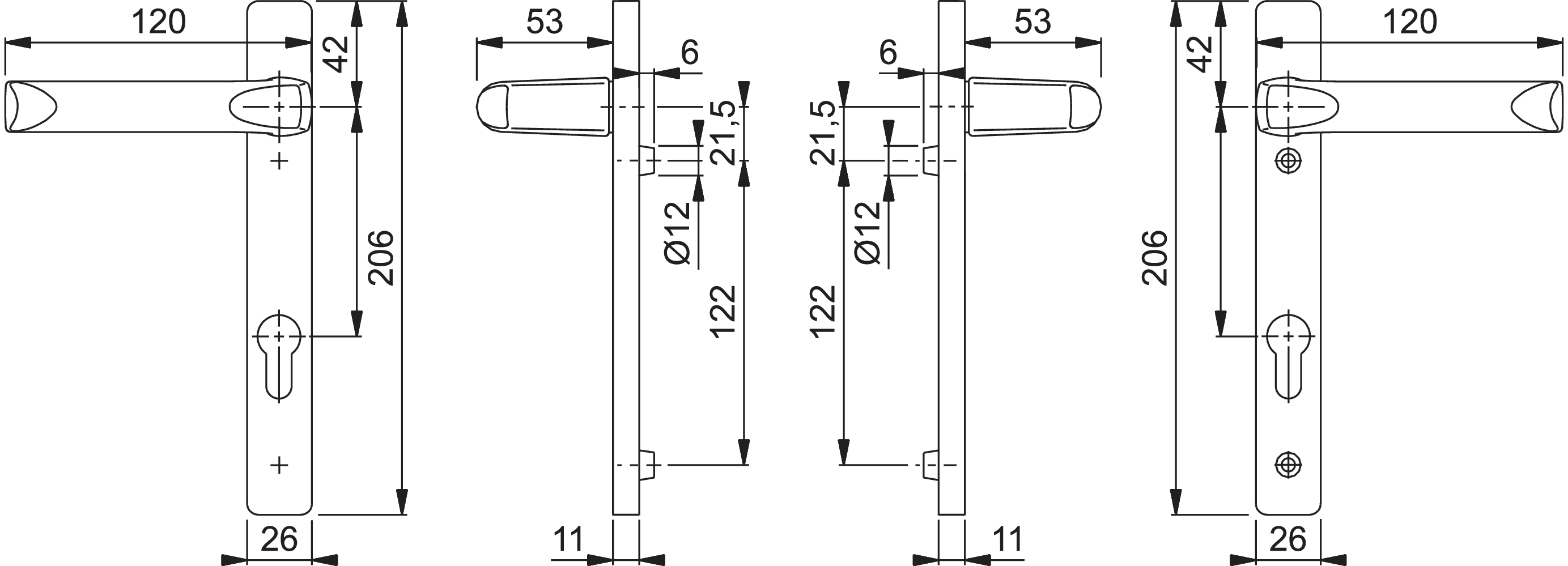

Technical drawing
