Overhead Surface Mount
AR5500SD

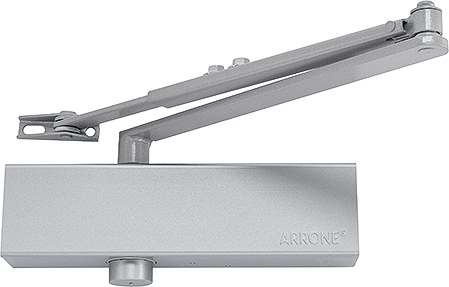

ARRONE overhead door closing device
Model: AR5500SD
Item number: 50018590
Finish: SE Silver Enamel
ARRONE overhead door closing device:
- Power size: EN 2 to EN 5, adjustable by spring tension
- Function: closing, latching, backcheck
- Cover: slide

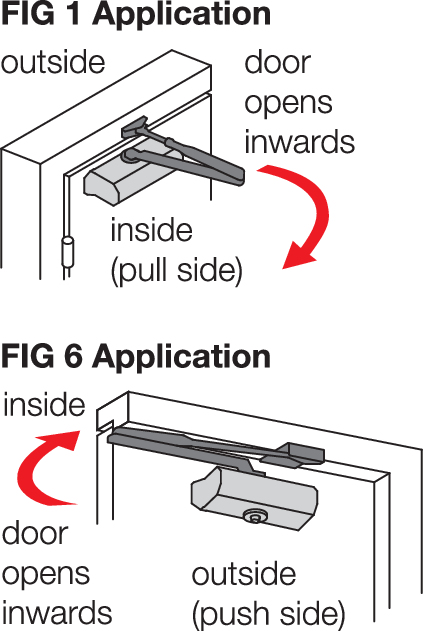

- Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 1,100-1,250 mm, door weight 80-100 kg
Classification (Fig 1/Fig 61): 3 | 8 | 5/2 | 1* | 1 | 3
Classification (Fig 6): 3 | 8 | 5/2 | 1* | 1 | 3 - Fire tested to BS EN 1634-1: suitable for 240 minute un-insulated steel fire doors
- Certification:
CE: AD5472, DOP HUK0039
Finish
SE Silver Enamel
Finish of the cover
SE Silver Enamel
Arm finish
SE Silver Enamel
Tested door width
1250 mm
Shape
Trim Plate
Power size
2 to 5
Mechanism function
closing/latching speed, backcheck, spring adjustment
Tested door weight
100 kg
Arm Application
figure 1 and 6
Mechanism type
Rack & pinion
Door type
Metal door
Fixings
Metal door

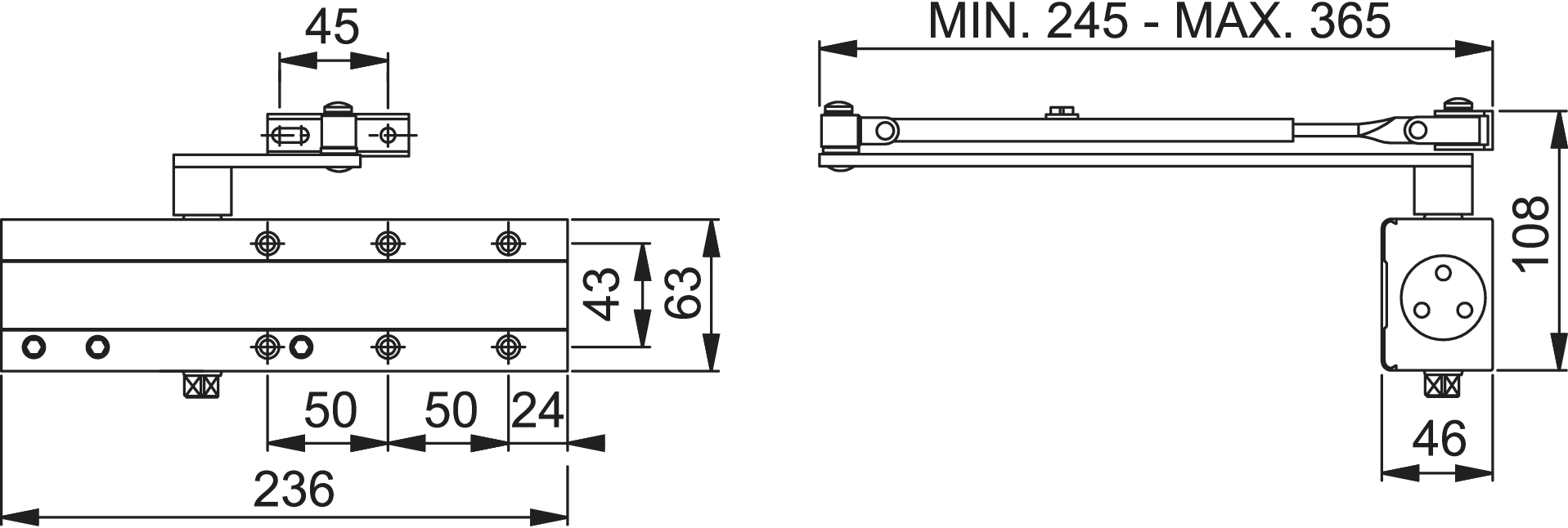

Mechanism dimensions and fixing centres
236x63x46 mm; centres 50x50x43 mm
Opening Angle
max. 180° opening
Arm type
scissor arm, adjustable
