Overhead Surface Mount
AR450
ARRONE overhead door closing device
Model: AR450
Item number: 87109670
Finish: SE Silver Enamel
ARRONE overhead door closing device:
- Power size: EN 3
- Function: closing, latching
- Cover: none

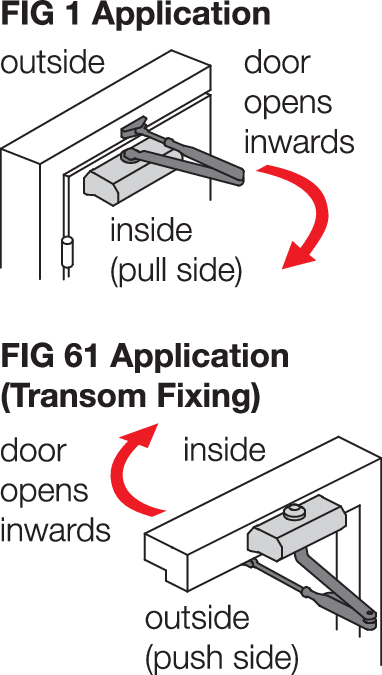

- Arm application: Fig 1, Fig 6 (bracket available separately) and Fig 61 fixing positions
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 950 mm, door weight 60 kg
Classification (Fig 1/Fig 61): 4 | 8 | 3 | 1* | 1 | 3
Classification (Fig 6): 3 | 8 | 3 | 1* | 1 | 3 - Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
- Certification:
CE: AD0178, DOP HUK0018
Certifire: CF5629
Finish
SE Silver Enamel
Finish of the cover
silver
Arm finish
SE Silver Enamel
Tested door width
950 mm
Power size
3
Mechanism function
closing/latching speed
Tested door weight
60 kg
Arm Application
figure 1 and 61
Mechanism type
Rack & pinion
Door type
wooden door
Fixings
Timber door
Type
mechanism only
Mechanism dimensions and fixing centres
180x42x63 mm; centres 164x19 mm
Opening Angle
max. 180° opening
Arm type
Scissor arm, detachable joint, screw, adjustable

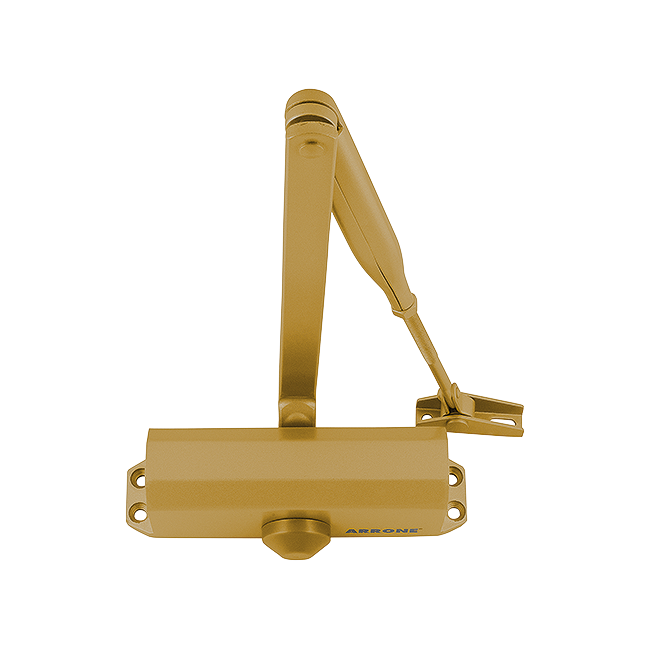

GE Gold enamel
