Overhead Surface Mount
AR6900

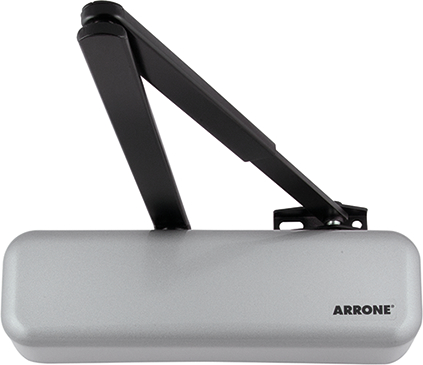

ARRONE overhead door closing device
Model: AR6900
Item number: 87105981
Finish: SE Silver Enamel
ARRONE overhead door closing device:
- Power size: EN 2 to EN 4, adjustable by template
- Function: closing, latching
- Cover: mini designer
- Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 950-1,100 mm, door weight 60-80 kg
Classification (Fig 1/Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3
Classification (Fig 6): 3 | 8 | 3 | 1* | 1 | 3 - Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
- Certification:
CE: AD0095, DOP HUK0025
Certifire: CF603
Finish
SE Silver Enamel
Finish of the cover
SE Silver Enamel
Arm finish
RAL 9017 traffic black (ebony black)
Tested door width
1100 mm
Shape
Mini-Designer
Power size
2 to 4
Mechanism function
Template adjustment, closing/latching speed
Tested door weight
80 kg
Arm Application
figure 1, 6 and 61
Mechanism type
Rack & pinion
Door type
wooden door
Fixings
Timber door

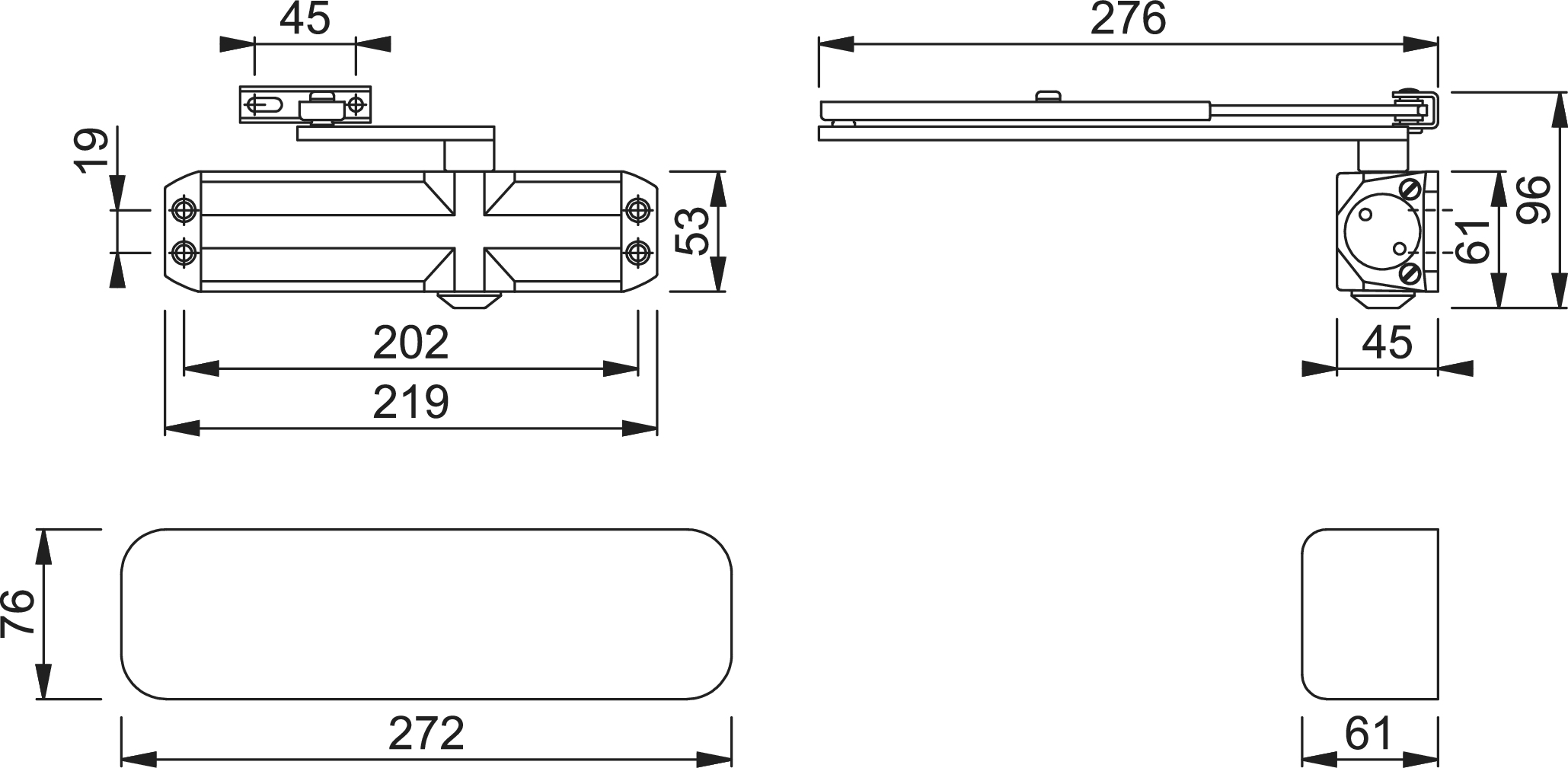

Mechanism dimensions and fixing centres
219x53.4x45 mm; centres 202x19 mm
Opening Angle
max. 105° opening
Arm type
Scissor arm, fixed joint, flat form, adjustable
PBR polished brass

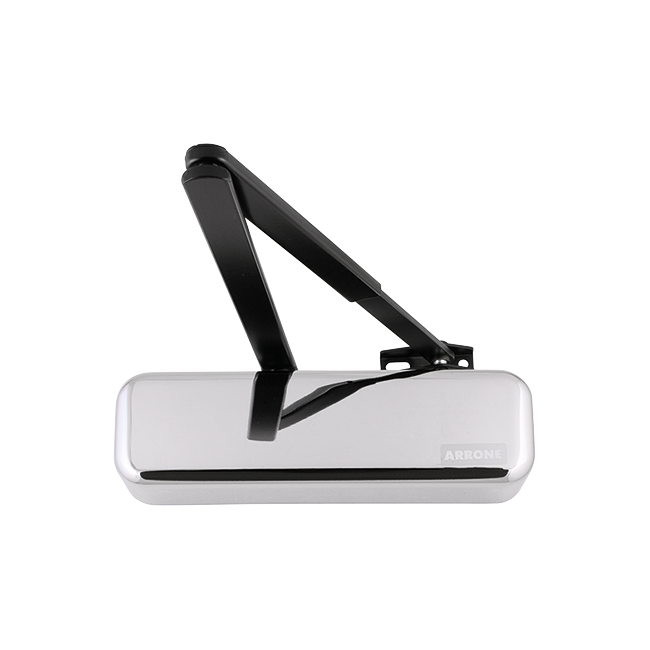

PSS-E polished stainless steel effect

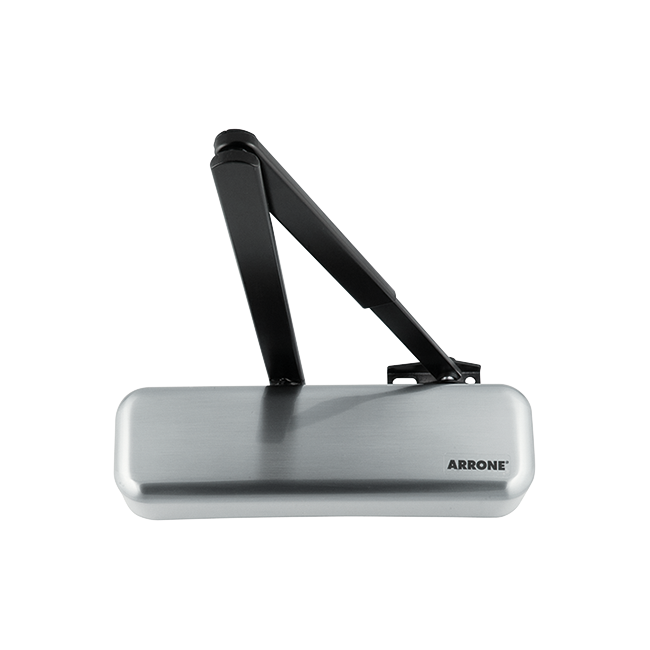

SSS-E Satin Stainless Steel effect

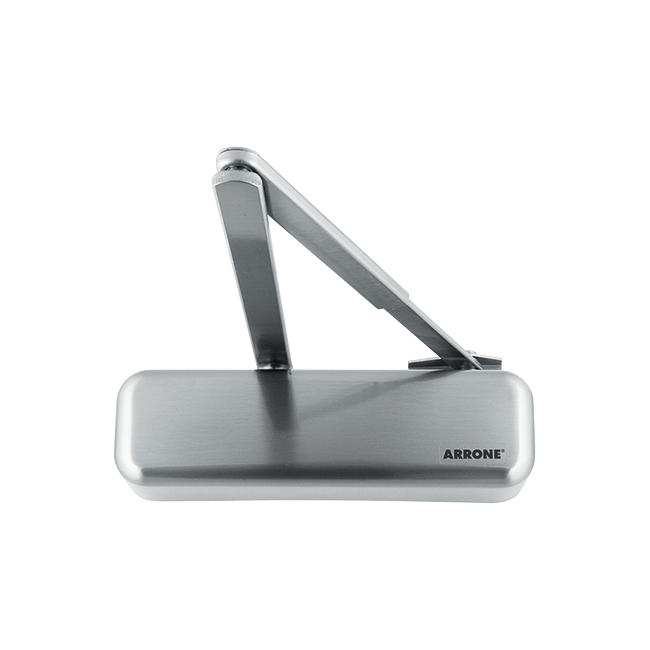

SSS-E Satin Stainless Steel effect

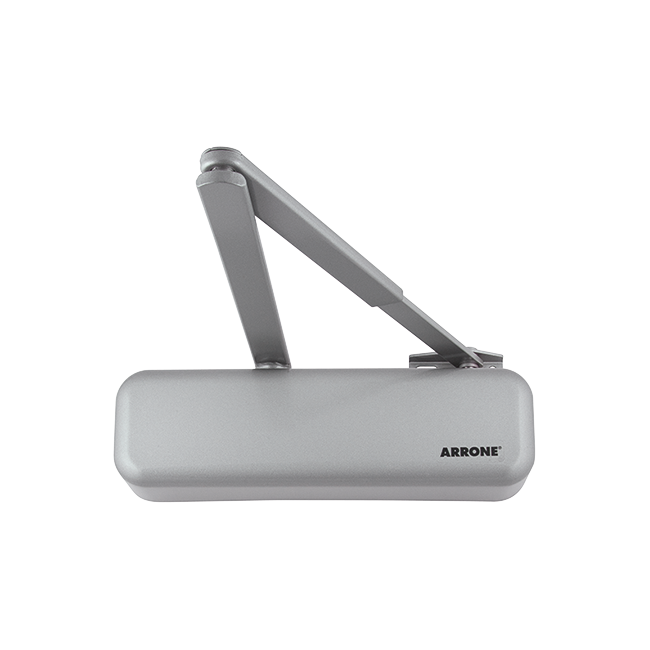

SE Silver Enamel
