Overhead Surface Mount
AR5500

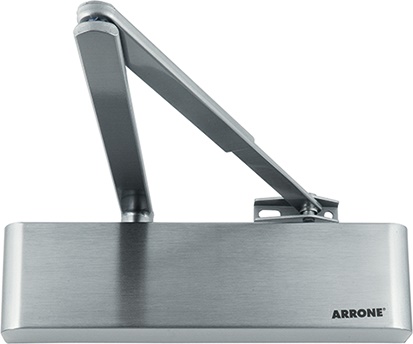

ARRONE overhead door closing device
Model: AR5500
Item number: 87113200
Finish: SSS-E Satin Stainless Steel effect
ARRONE overhead door closing device:
- Power size: EN 3 to EN 5, adjustable by spring tension (Size 2 by template)
- Function: closing, latching, backcheck
- Cover: slide
- Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 1,100-1,250 mm, door weight 80-100 kg
Classification (Fig 1): 4 | 8 | 5/2 | 1* | 1 | 4
Classification (Fig 6): 3 | 8 | 4/3 | 1* | 1 | 4
Classification (Fig 61): 4 | 8 | 4/2 | 1* | 1 | 4 - Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors and 240 minute insulated steel fire doors
- Certification:
CE: AD0239, DOP HUK0005
Certifire: CF295
Finish
SSS-E Satin Stainless Steel effect
Finish of the cover
SSS-E Satin Stainless Steel effect
Arm finish
SSS-E Satin Stainless Steel effect
Tested door width
1250 mm
Shape
Slimline
Power size
2 to 5
Mechanism function
Backcheck, template + spring adjustment, closing/latching speed
Tested door weight
100 kg
Arm Application
figure 1, 6 and 61
Mechanism type
Rack & pinion
Door type
wooden door
Fixings
Timber door
Mechanism dimensions and fixing centres
236x60x38.5 mm; centres 95x195x45 mm
Opening Angle
max. 180° opening
Arm type
Scissor arm, fixed joint, flat form, adjustable
