Handle Sets for Interior Doors

AR961-IND-TURN

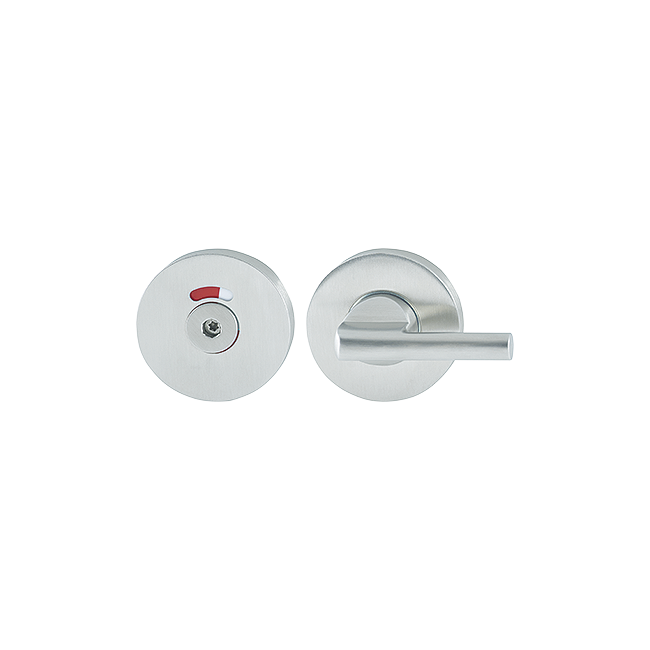

ARRONE bathroom turn and indicator set

AR961-IND-TURN

Model: AR961-IND-TURN
Item number: 50028170
Finish: SSS Satin Stainless Steel

  Remember and compare   Switch to wishlist   Download product data sheet

ARRONE bathroom turn and indicator set:

  • Material: stainless steel grade 304
  • Function: bathroom turn set for residential/commercial applications
  • Base: stainless steel
  • Fixing: wood screws with 5 mm bathroom spindle
  • For key to operate refer to ID 50028182

Product type
Single parts
Material
stainless steel: grade 304
Finish
SSS Satin Stainless Steel
(Key)Hole size
WC bathroom accessible
Door thickness
40-55 mm
Spindle size
5 mm
Rose height
8 mm
Door type
wooden door
Unit
each
Fixings
Timber door
Type
Non coin release 6mm ALLEN KEY
Spindle size
5x70 mm spindle
Rose height
8 mm

Product data sheet

PDF
DOK_DS_50028170_SEN-GB_AOF_V1.pdf
0,22 MB

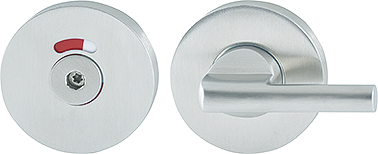

Product photo

JPG
0,06 MB

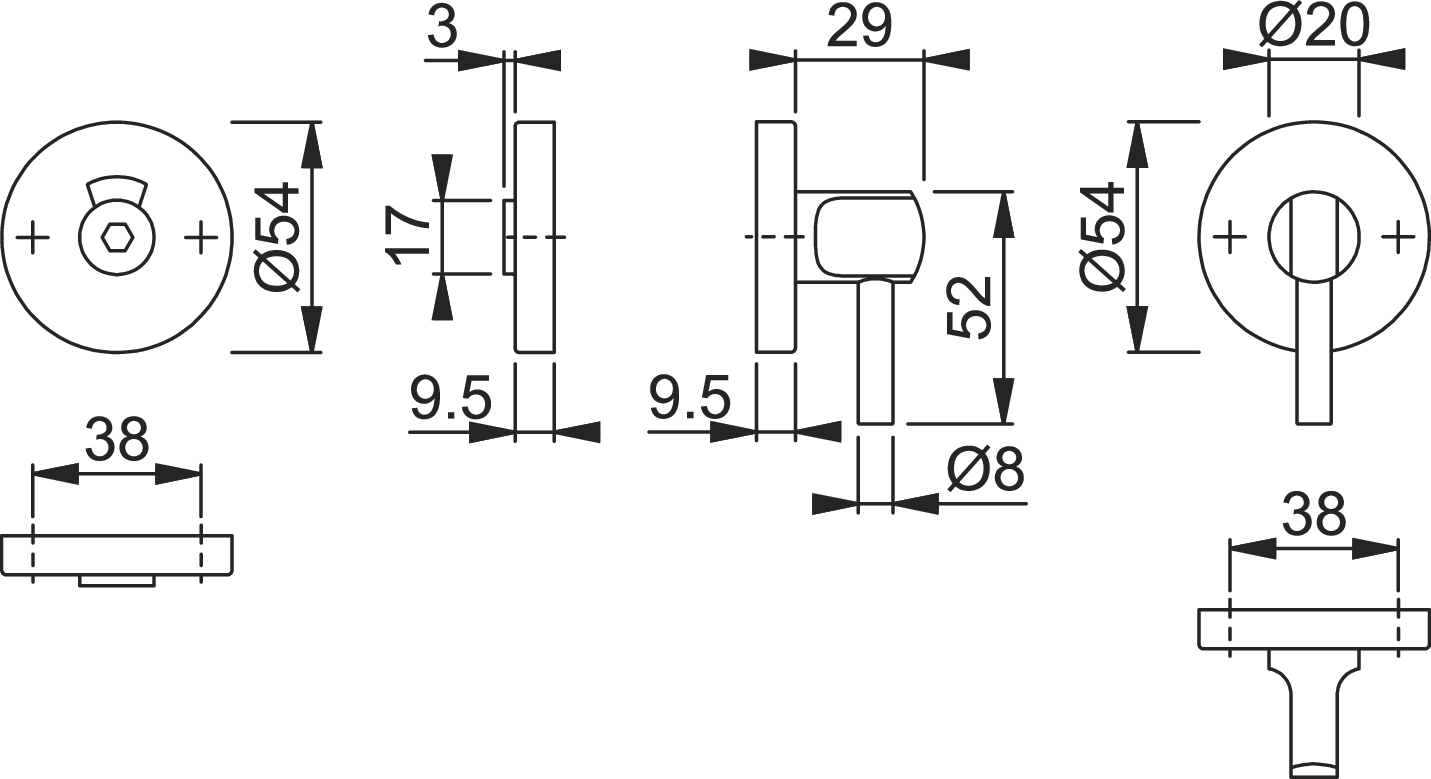

Technical drawing

DWG
DRW_CAT_AR961-69D-NC-ALLEN_SALL_ACAD_V1.dwg
0,10 MB
JPG
0,04 MB
JPG
0,12 MB
EPS
DRW_CAT_AR961-69D-NC-ALLEN_SALL_APR_V1.eps
1,04 MB
PDF
DRW_CAT_AR961-69D-NC-ALLEN_SALL_APRW_V1.pdf
0,14 MB
