Handle Sets for Interior Doors

AR490-IND-TURN

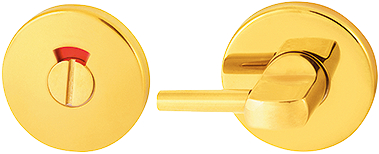

ARRONE bathroom turn and indicator set

AR490-IND-TURN

Model: AR490-IND-TURN
Item number: 87106522
Finish: PBR-PVD polished brass; PVD coated

  Remember and compare   Switch to wishlist   Download product data sheet

ARRONE bathroom turn and indicator set:

  • Material: brass
  • Function: bathroom turn set for residential/commercial applications
  • Base: stainless steel
  • Fixing: wood screws with 5 mm bathroom spindle

Product type
Single parts
Version
Escutcheon pair
Material
brass
Finish
PBR-PVD polished brass; PVD coated
(Key)Hole size
WC bathroom accessible
Door thickness
40-50 mm
Spindle size
5 mm
Rose height
8 mm
Door type
Metal door
Unit
pair
Fixings
Metal door
Spindle size
5x75 mm
Rose height
8 mm

Product data sheet

PDF
DOK_DS_87106522_SEN-GB_AOF_V1.pdf
0,22 MB

Product photo

JPG
0,08 MB

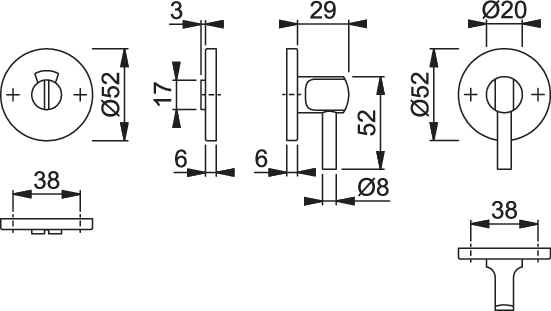

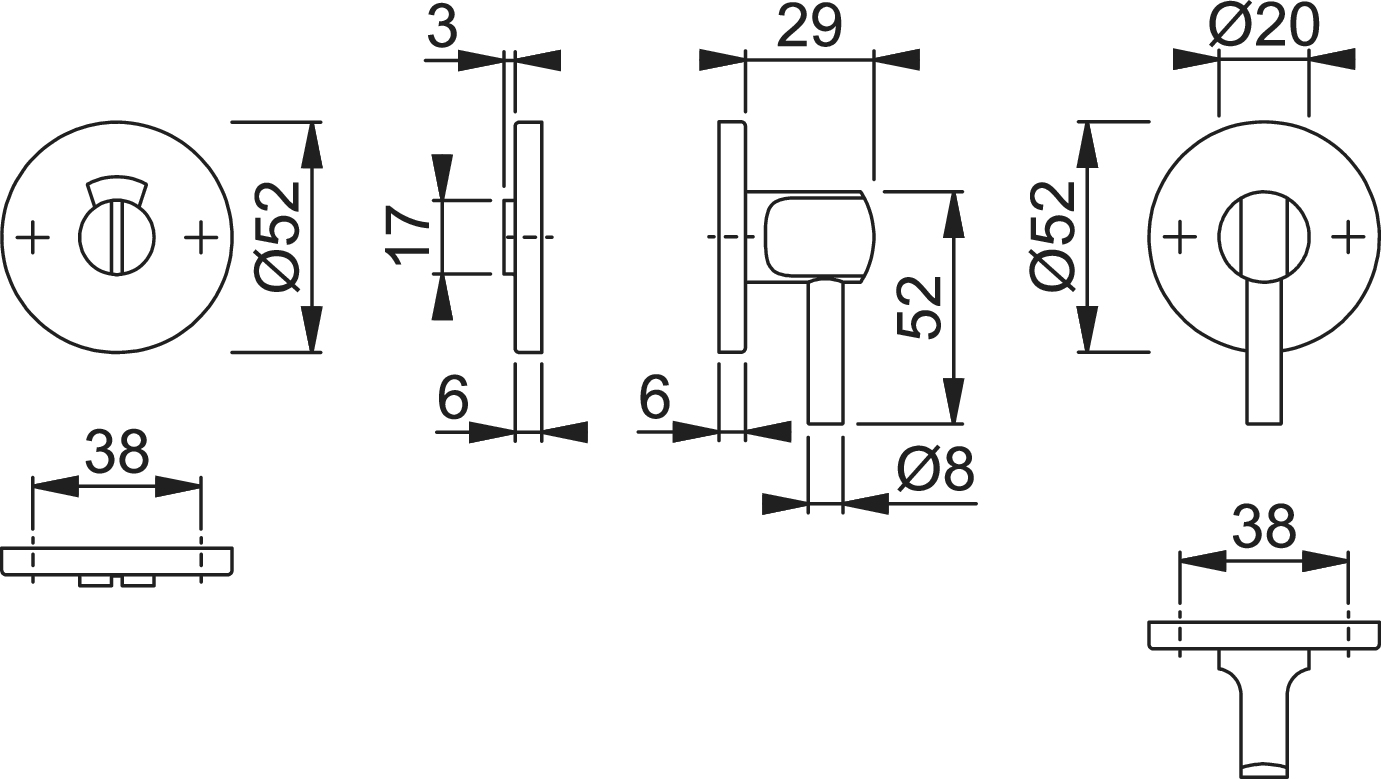

Technical drawing

DWG
DRW_CAT_AR490-39D_SALL_ACAD_V1.dwg
0,19 MB
JPG
0,04 MB
JPG
0,12 MB
EPS
DRW_CAT_AR490-39D_SALL_APR_V1.eps
0,32 MB
PDF
DRW_CAT_AR490-39D_SALL_APRW_V1.pdf
0,16 MB
