Mortice Latches
AR814

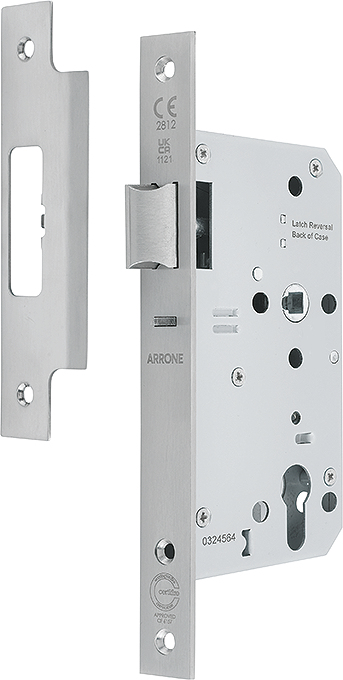

ARRONE mortice nightlatch case
Model: AR814
Item number: 50025004
Finish: Satin Stainless Steel
ARRONE mortice nightlatch case:
- Function: Latch bolt with anti thrust operation
- Forend/strike material: Stainless steel
- Strike Type: Adjustable
- Forend type: Single
- CE Marked: AG5089, UKCA Marked: AG7663
- BS EN 12209: 3 | X | 8 | 1* | 0 | G | - | B | B | 2 | 0 - Certifire approved: CF6157, CE DOP: HUK0069 and HUK0069, UKCA DOP: HUK001-UK and HUK0052-UK
- Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
- Meets dimensional recommendations of BS 8300 and ADM for locks
- * The AR814 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
Corner
square corner - Adjustable Strike
Product type
none
Rose shape
None available
Version
none
Backset
60 mm, pierced for furniture and escutcheons at 38 mm centres
Finish
Satin Stainless Steel

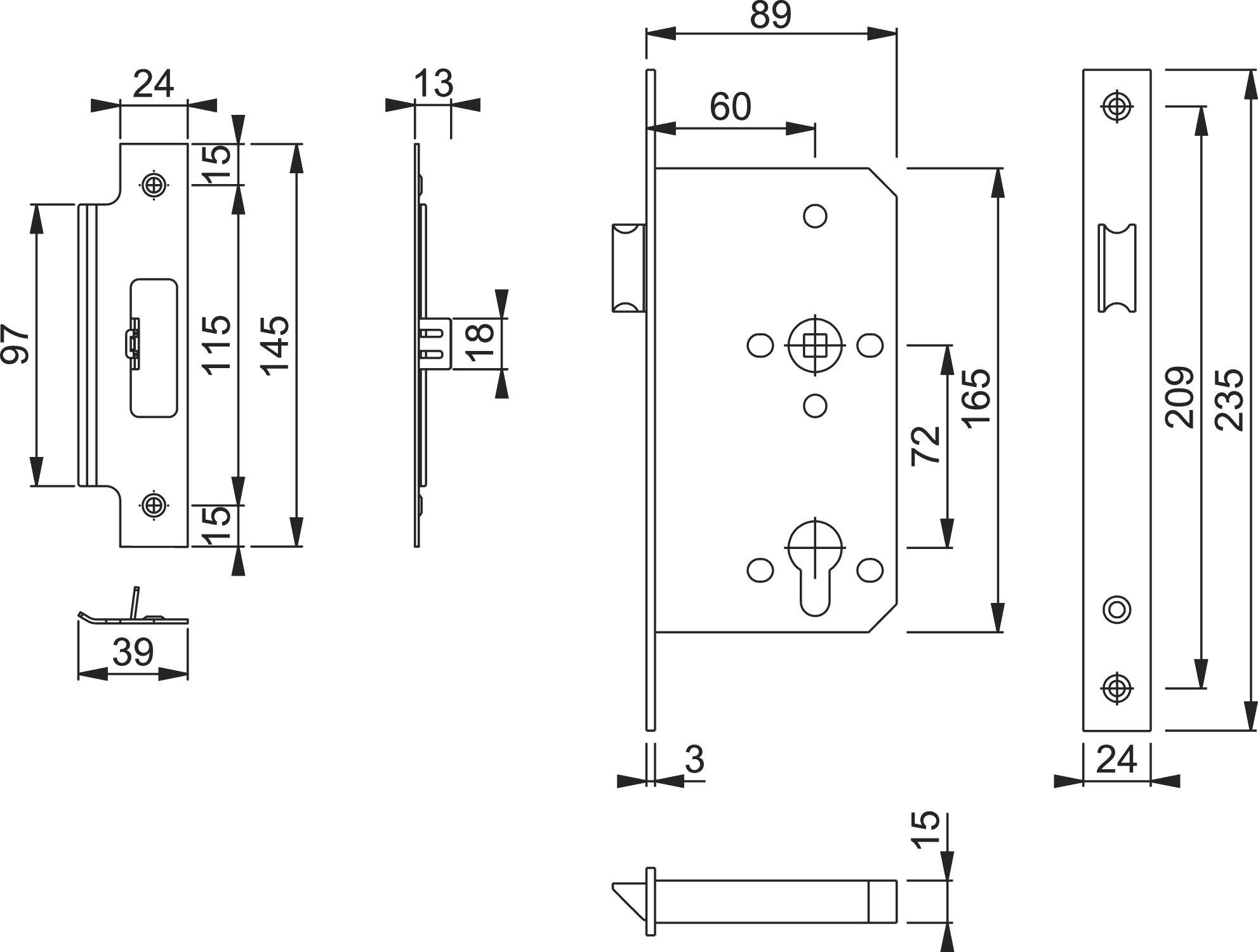

Case Dimensions
Depth: 89 mm length: 165 mm width: 15 mm (modular)
Commodity Class
Locks/latches mortice nightlatch
(Key)Hole size
Euro profile cylinder
Key hole distance
72 mm
Shape
square
