Mortice Latches

AR8018

ARRONE mortice bathroom deadbolt

AR8018

Productline Model: AR8018
Model: AR8018
Item number: 87101338
Finish: SCH/PBR satin chrome, polished brass

ARRONE mortice bathroom deadbolt:

  • Function: deadbolt operation
  • Forend/strike material: stainless steel
  • Forend type: double
  • CE Marked: AG0102
    BS EN 12209: 2 | X | 8 | 1* | 0 | F | - | B | 0 | 0 | 0
  • Certifire approved: CF5768, CE DOP: HUK0015
  • Testing: BS EN 1634-1. Assessed for use on up to 60 minute timber fire doors.
  • * The AR8018 series deadbolt has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
aufdruck_2_c

Finish
SCH/PBR satin chrome, polished brass
Face plate finish
F69/F77Satin Stainless Steel/brass-coloured, polished
Shape
square
Backset
57 mm
Corner
square corner
Door type
wooden door
Fixings
Timber door
Case Dimensions
Depth: 76 mm length: 22 mm width: 15 mm

Product data sheet

PDF
DOK_DS_87101338_SEN-GB_AOF_V1.pdf
0,25 MB

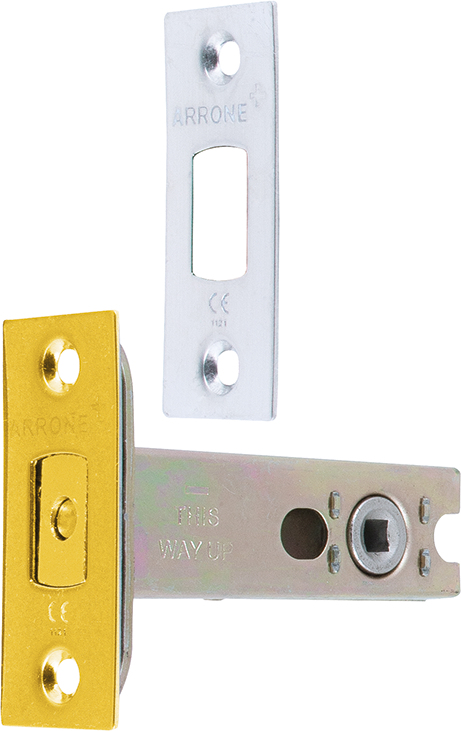

Product photo

JPG
0,19 MB

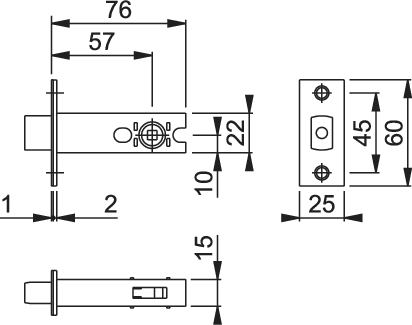

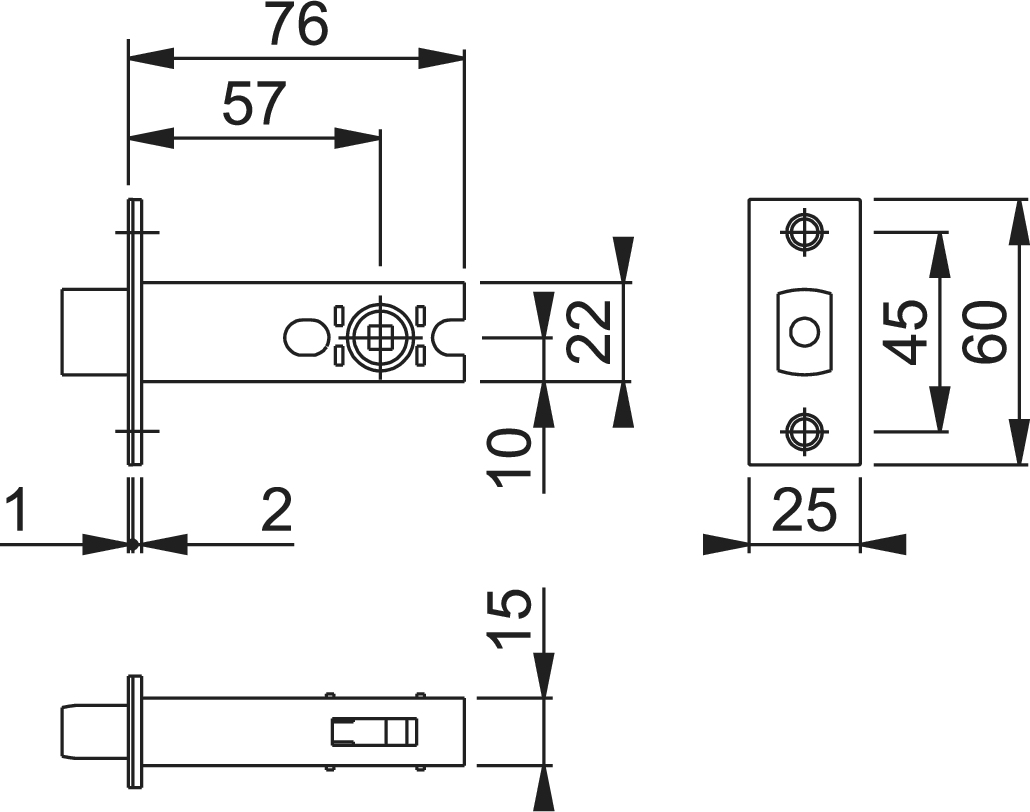

Technical drawing

DWG
DRW_CAT_AR8018-76_SALL_ACAD_V1.dwg
0,17 MB
JPG
0,03 MB
JPG
0,08 MB
EPS
DRW_CAT_AR8018-76_SALL_APR_V1.eps
0,28 MB
PDF
DRW_CAT_AR8018-76_SALL_APRW_V1.pdf
0,14 MB
