Handle Sets for Profile Doors

Tôkyô

HOPPE aluminium knob (pad)/handle set on narrow backplate with turn for profile doors

Tôkyô
View further versions of the series

Productline Model: 76G/3633N/3623N/1710RH
Model: 76G/3633N/3623N/1710RH
Item number: 2769260
Finish: F3 aluminium gold effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium knob (pad)/handle set on narrow backplate with turn for profile doors:

  • Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws

Product type
Knob(pad)/handle set
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F3 aluminium gold effect
(Key)Hole size
Euro profile cylinder
Key hole distance
62 mm
Door thickness
60-70 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_2769260_SEN-GB_AOF_V1.pdf
0,26 MB

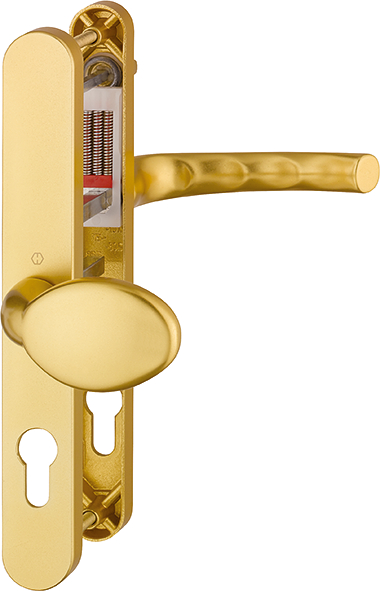

Product photo

JPG
0,14 MB

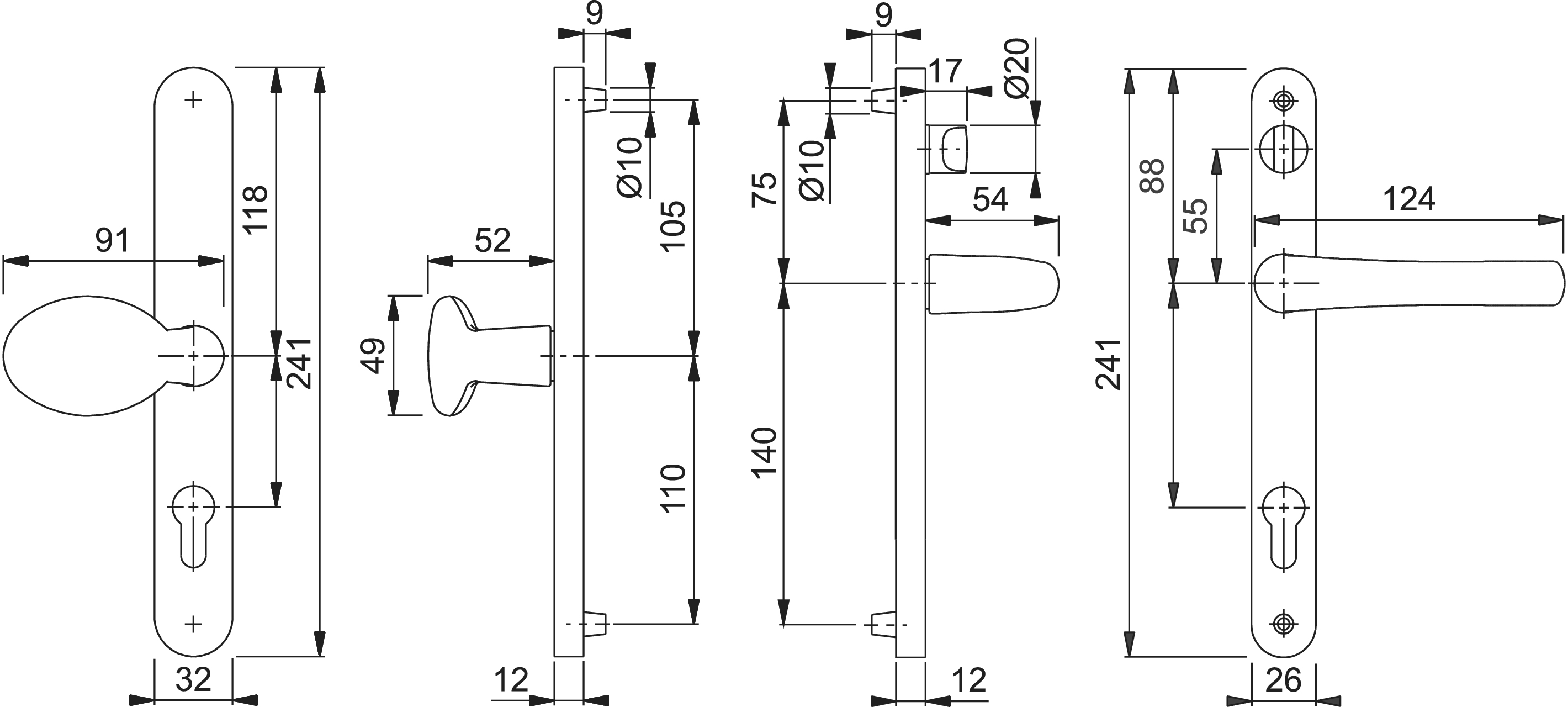

Technical drawing

DWG
DRW_CAT_76G-3633N-3623N-1710RH-PZ62-92-OL-OL99_SALL_ACAD_V1.dwg
0,14 MB
JPG
0,09 MB
JPG
0,26 MB
EPS
DRW_CAT_76G-3633N-3623N-1710RH-PZ62-92-OL-OL99_SALL_APR_V1.eps
0,42 MB
PDF
DRW_CAT_76G-3633N-3623N-1710RH-PZ62-92-OL-OL99_SALL_APRW_V1.pdf
0,17 MB
