Handle Sets for Profile Doors

Tôkyô

HOPPE brass handle set on narrow backplate for profile doors

Tôkyô
View further versions of the series

Productline Model: M1710RH/3841N
Model: M1710RH/3841N
Item number: 2145967
Finish: F77-R brass-coloured, polished - Resista

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE brass handle set on narrow backplate for profile doors:

  • Bearing: fixed/movable handles, spring cassettes, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Special finish, Very high corrosion protection, Ideal for intense operational strain,
  • Special finish
  • Very high corrosion protection
  • Ideal for intense operational strain
Solid brass
Solid brass

Product type
Set (handle/handle)
Version
Set on narrow backplate
Commodity Class
brass
Finish
F77-R brass-coloured, polished - Resista
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Door thickness
58-70 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_2145967_SEN-GB_AOF_V1.pdf
0,26 MB

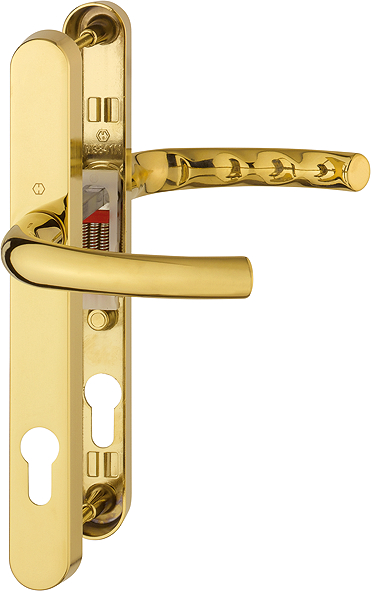

Product photo

JPG
0,15 MB

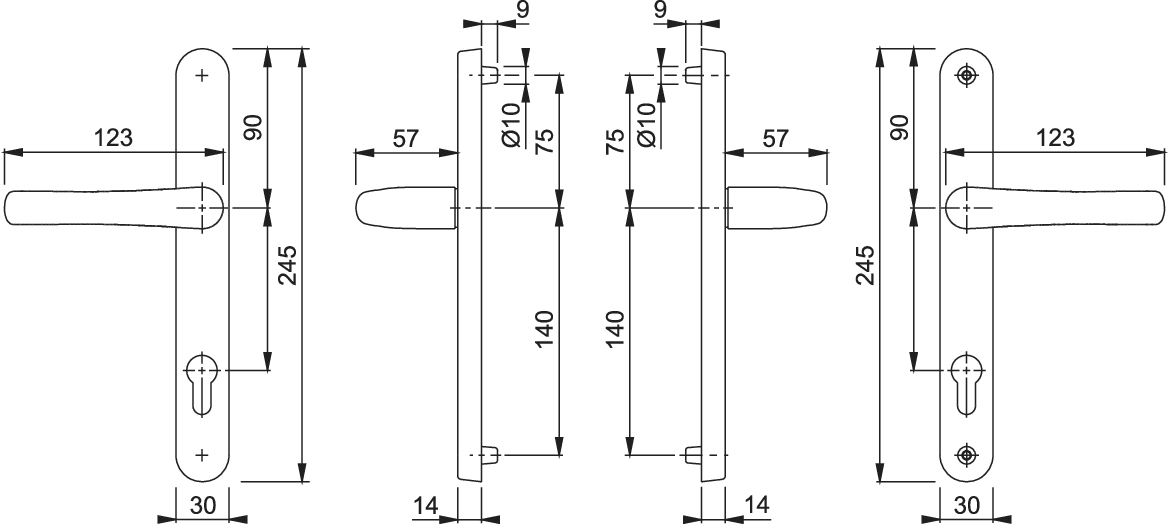

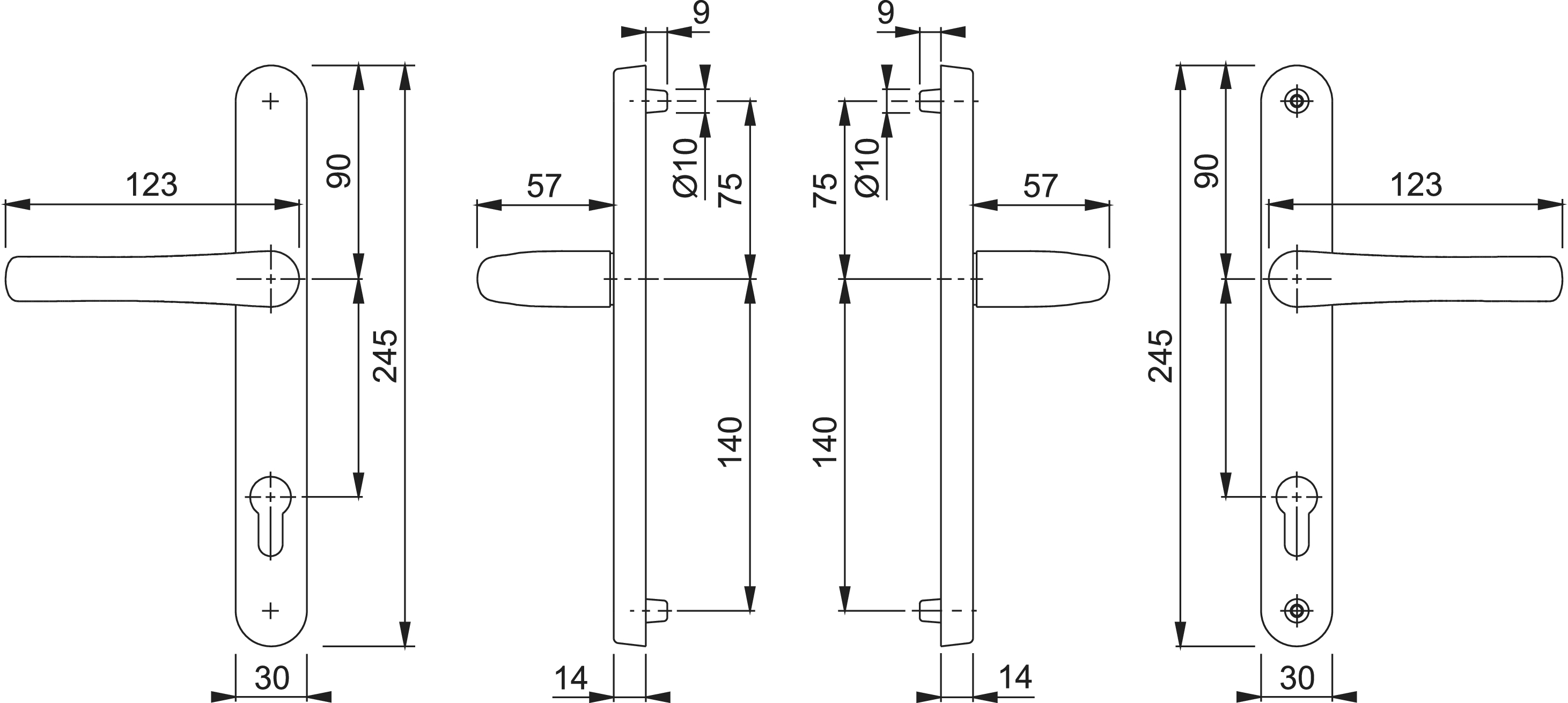

Technical drawing

DWG
DRW_CAT_M1710RH-3841N-PZ92_SALL_ACAD_V1.dwg
0,12 MB
JPG
0,08 MB
JPG
0,23 MB
EPS
DRW_CAT_M1710RH-3841N-PZ92_SALL_APR_V1.eps
0,38 MB
PDF
DRW_CAT_M1710RH-3841N-PZ92_SALL_APRW_V1.pdf
0,16 MB
