Atlanta

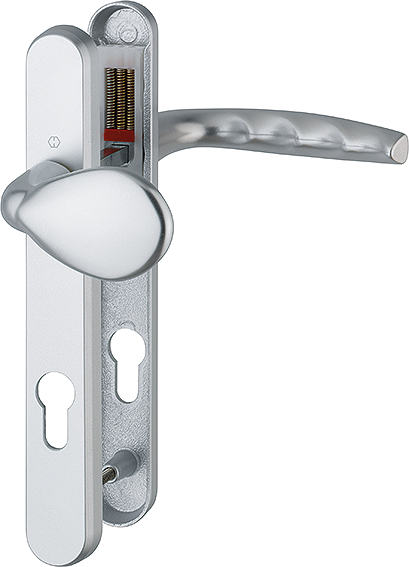

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors

Atlanta
View further versions of the series

Productline Model: 77G/3831N/1530
Model: 77G/3831N/1530
Item number: 3627423
Finish: F1 aluminium silver effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0040A
  • Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Very high corrosion resistance grade 4, EN 1670
Very high corrosion resistance
grade 4, EN 1670
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Knob(pad)/handle set
Version
Set on narrow backplate
Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Grade
2
Door thickness
65-70 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_3627423_SEN-GB_AOF_V1.pdf
0,27 MB

Product photo

JPG
0,12 MB

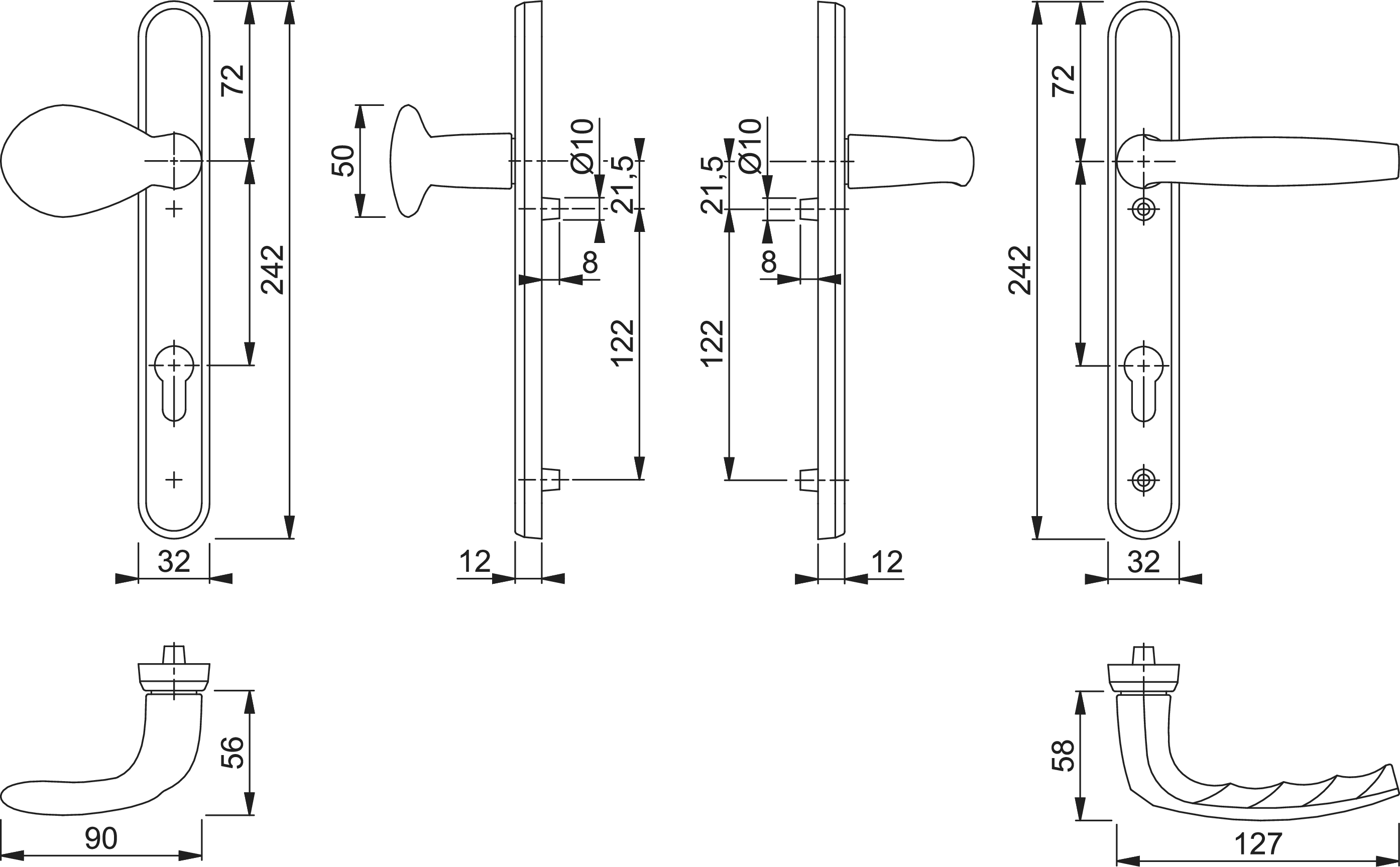

Technical drawing

DWG
DRW_CAT_77G-3831N-1530-PZ_SALL_ACAD_V1.dwg
0,09 MB
JPG
0,10 MB
JPG
0,32 MB
EPS
DRW_CAT_77G-3831N-1530-PZ_SALL_APR_V1.eps
0,37 MB
PDF
DRW_CAT_77G-3831N-1530-PZ_SALL_APRW_V1.pdf
0,16 MB
