Handle Sets for Profile Doors

Atlanta

HOPPE aluminium handle set on narrow backplate for profile doors

Atlanta
View further versions of the series

Productline Model: 1530/3831N
Model: 1530/3831N
Item number: 3628101

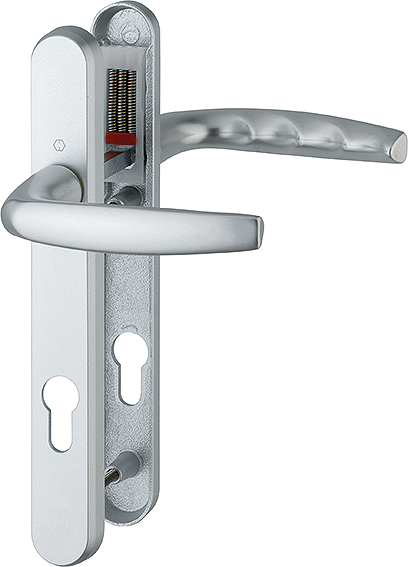

Finish: F1 aluminium silver effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0040A
  • Bearing: fixed/movable handles, spring cassettes, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Backplates: supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws
Very high corrosion resistance grade 4, EN 1670
Very high corrosion resistance
grade 4, EN 1670
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Set (handle/handle)
Version
Set on narrow backplate (3831N)
Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Grade
2
Door thickness
40-45 mm
Spindle size
8 mm
Spindle size
8 mm

Product data sheet

PDF
DOK_DS_3628101_SEN-GB_AOF_V1.pdf
0,27 MB

Product photo

JPG
0,13 MB

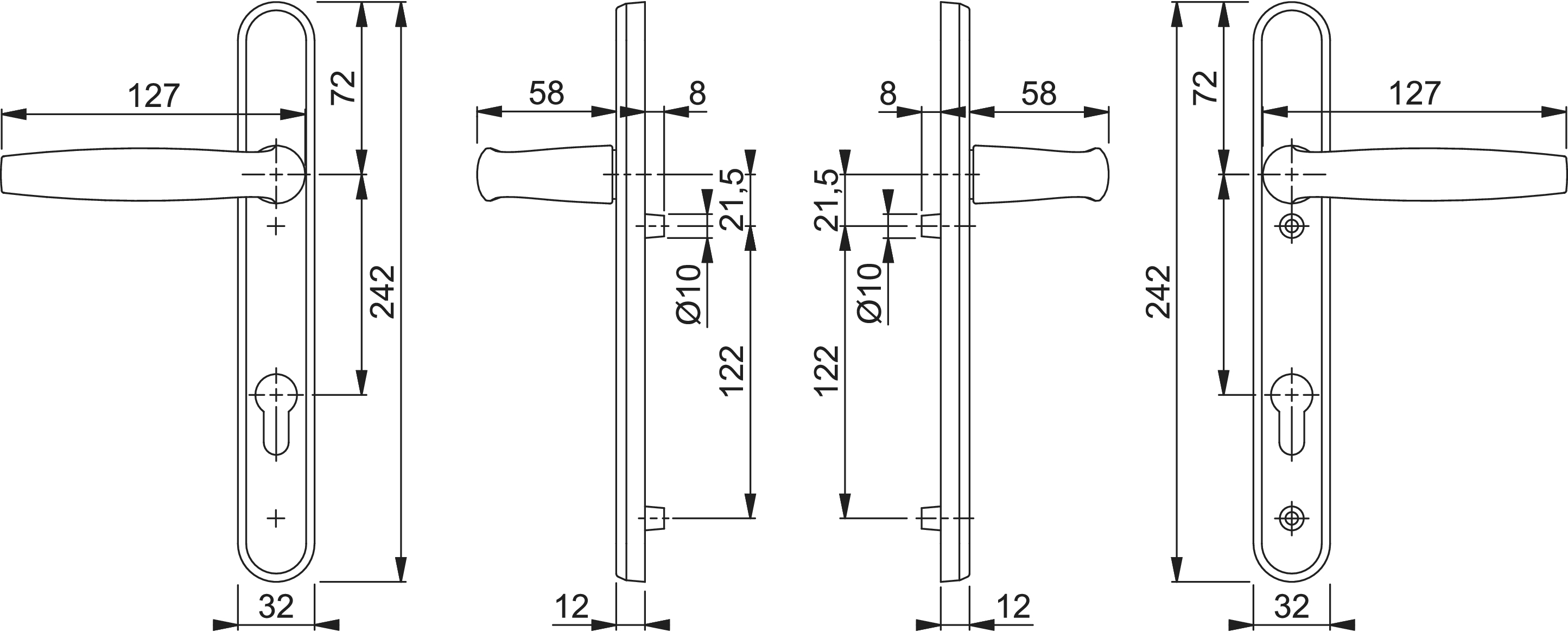

Technical drawing

DWG
DRW_CAT_1530-3831N-PZ-f-d_SALL_ACAD_V1.dwg
0,07 MB
JPG
0,08 MB
JPG
0,26 MB
EPS
DRW_CAT_1530-3831N-PZ-f-d_SALL_APR_V1.eps
0,35 MB
PDF
DRW_CAT_1530-3831N-PZ-f-d_SALL_APRW_V1.pdf
0,15 MB
