Mortice Latches

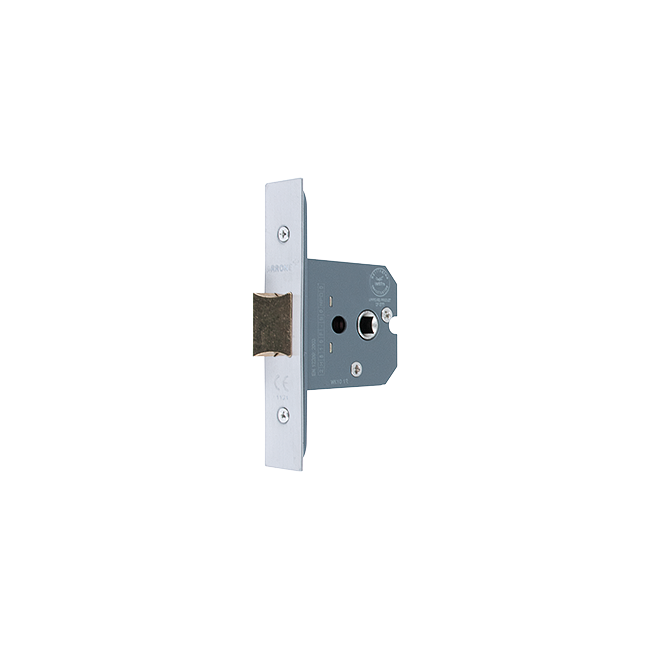

AR8009
ARRONE mortice latch
Model: AR8009
Item number: 87109104
Finish: SCH satin chrome
ARRONE mortice latch:
- Function: latchbolt operation
- Forend/strike material: stainless steel
- Forend type: double
- CE Marked: AG0178
BS EN 12209: 2 | H | 8 | 1* | 0 | F | - | B | 0 | NPD | 0 - Certifire approved: CF5768, CE DOP: HUK0043
- Testing: BS EN 1634-1. Assessed for use on up to 60 minute timber fire doors.
- * The AR8009 series latch has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
Finish
SCH satin chrome
Face plate finish
F69 satin stainless steel
Door thickness
44 mm
Shape
square
Backset
44 mm, pierced for furniture at 38 mm centres
Corner
square corner - Adjustable Strike
Door type
wooden door
Fixings
Timber door

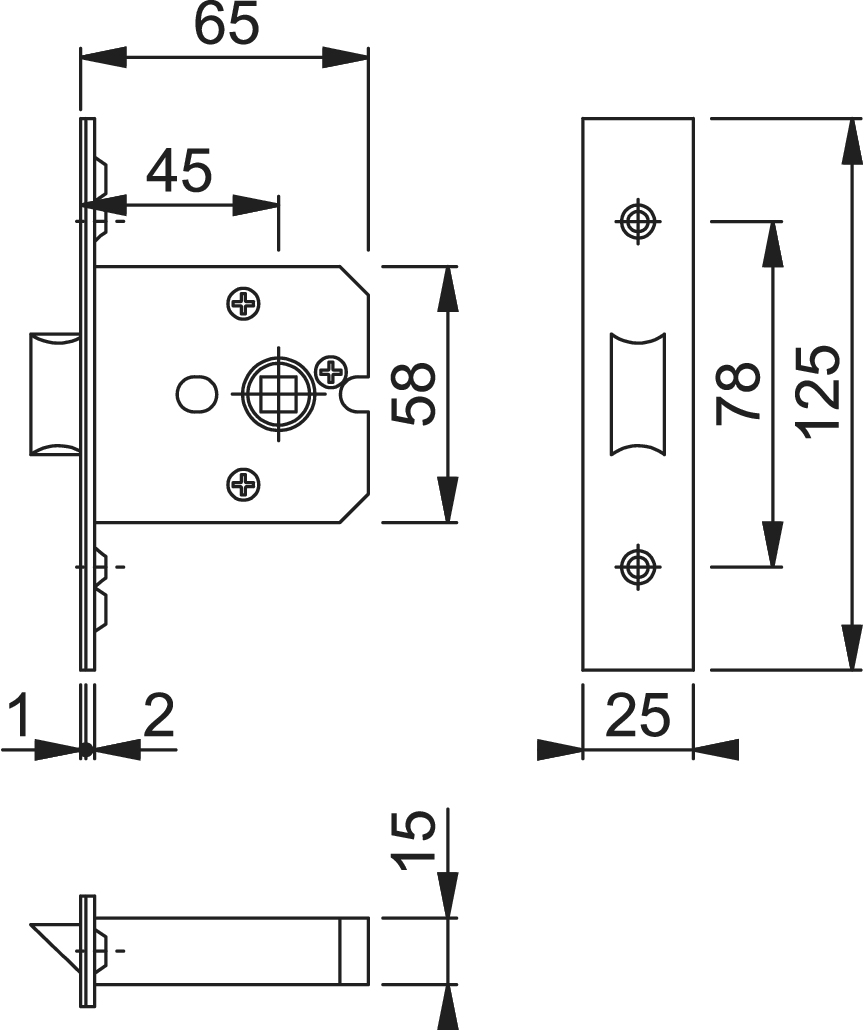

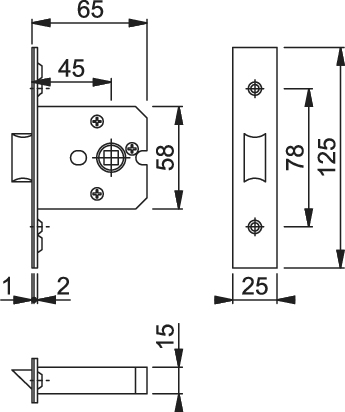

Case Dimensions
Depth: 65 mm length: 58 mm width: 15 mm

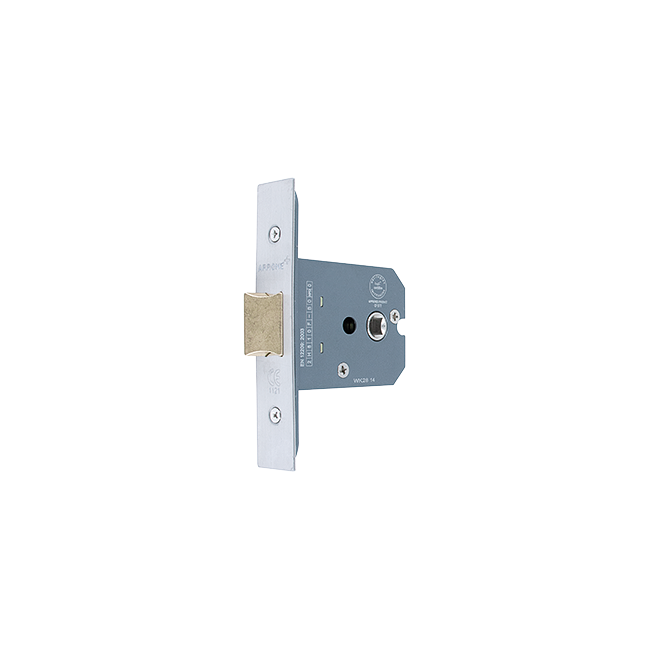

57 mm, pierced for furniture at 38 mm centres
