Handle Sets for Profile Doors

Atlanta

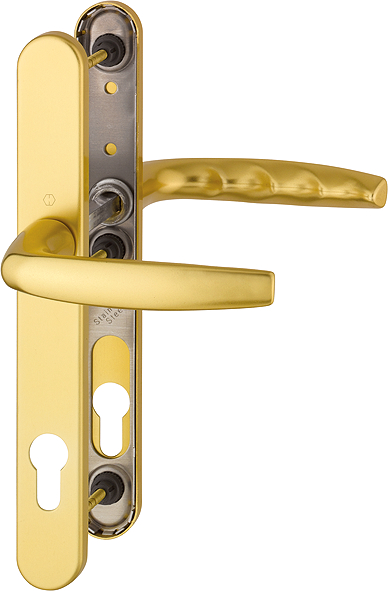

HOPPE aluminium handle set on narrow backplate for profile doors

Atlanta
View further versions of the series

Productline Model: 1530/3346
Model: 1530/3346
Item number: 2353310
Finish: F3 aluminium gold effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Tested to DIN EN 1906: 26-0130U
  • Bearing: fixed/movable door handles, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Base: stainless steel, supporting lugs
  • Fixing: visible, bolt-through, M5 thread screws
Category of use grade 2 to DIN EN 1906
Category of use grade 2 to
DIN EN 1906

Product type
Set (handle/handle)
Version
Set on narrow backplate (3346)
Commodity Class
aluminium
Finish
F3 aluminium gold effect
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Grade
2
Door thickness
56-70 mm
Spindle size
8 mm
Spindle size
8 mm
Base material
stainless steel

Product data sheet

PDF
DOK_DS_2353310_SEN-GB_AOF_V1.pdf
0,24 MB

Product photo

JPG
0,14 MB

Technical drawing

DWG
DRW_CAT_1530-3346-PZ-GL70-3-Nocken-M5_SALL_ACAD_V2.dwg
0,06 MB
JPG
0,08 MB
JPG
0,27 MB
EPS
DRW_CAT_1530-3346-PZ-GL70-3-Nocken-M5_SALL_APR_V2.eps
0,36 MB
PDF
DRW_CAT_1530-3346-PZ-GL70-3-Nocken-M5_SALL_APRW_V2.pdf
0,14 MB
