Handle Sets for Profile Doors

Frankfurt

HOPPE aluminium handle set on narrow backplate for profile doors

Frankfurt

Productline Model: 117L/2246
Model: 117L/2246
Item number: 2398690
Finish: F1 aluminium silver effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium handle set on narrow backplate for profile doors:

  • Bearing: fixed/movable door handles, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Base: stainless steel, supporting lugs
  • Fixing: visible, bolt-through, M5 thread screws

Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
70 mm
Door thickness
58-70 mm
Spindle size
7 mm
Spindle size
7 mm
Base material
stainless steel

Product data sheet

PDF
DOK_DS_2398690_SEN-GB_AOF_V1.pdf
0,25 MB

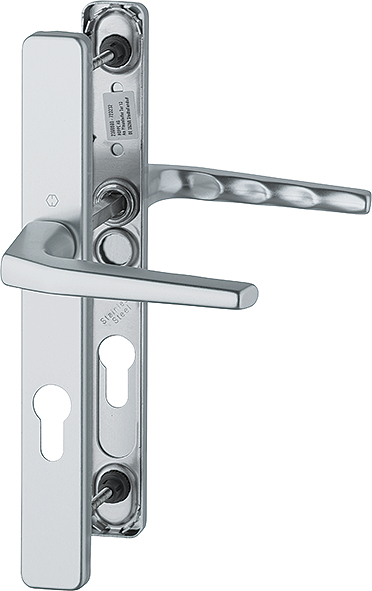

Product photo

JPG
0,10 MB

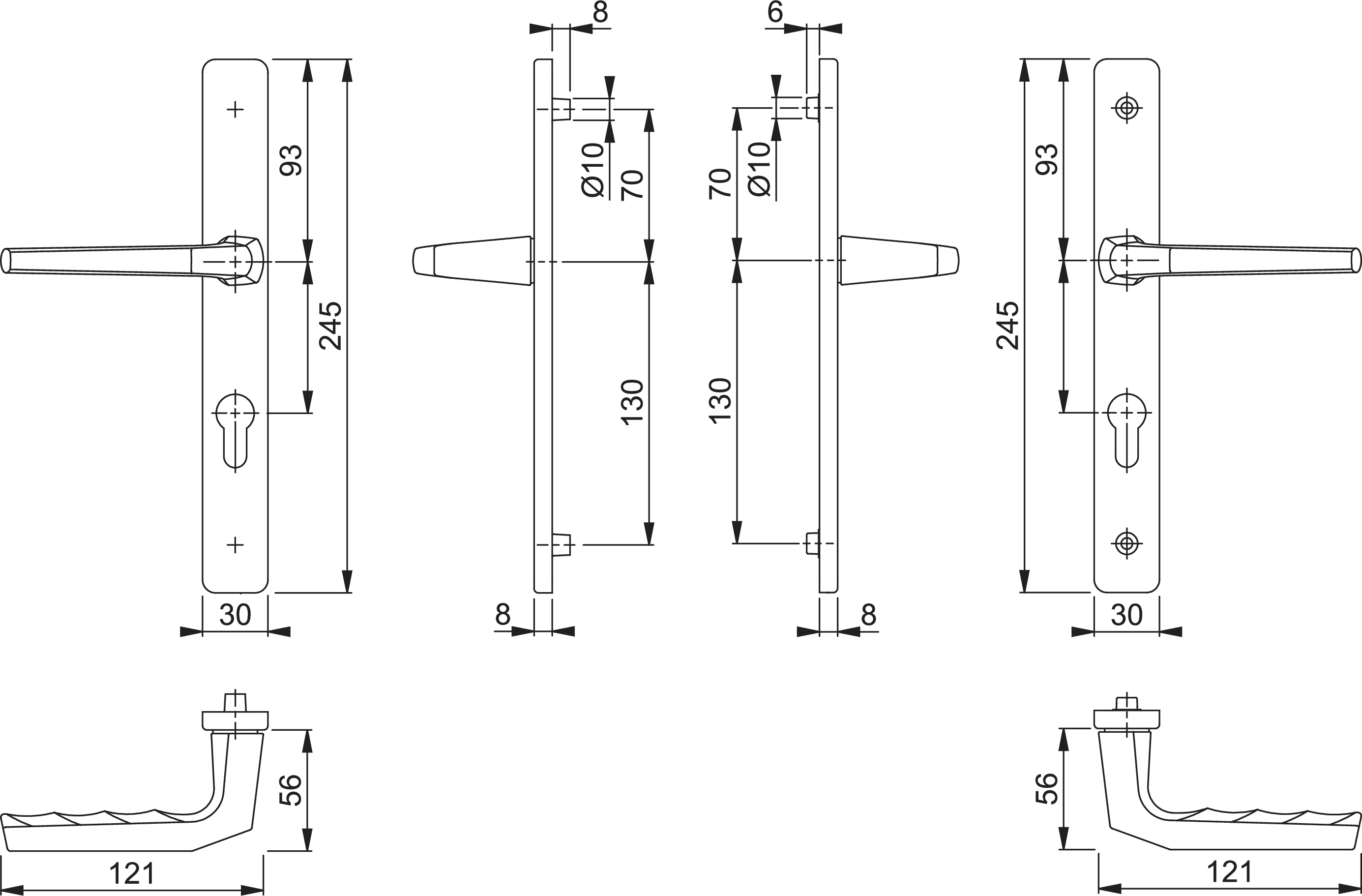

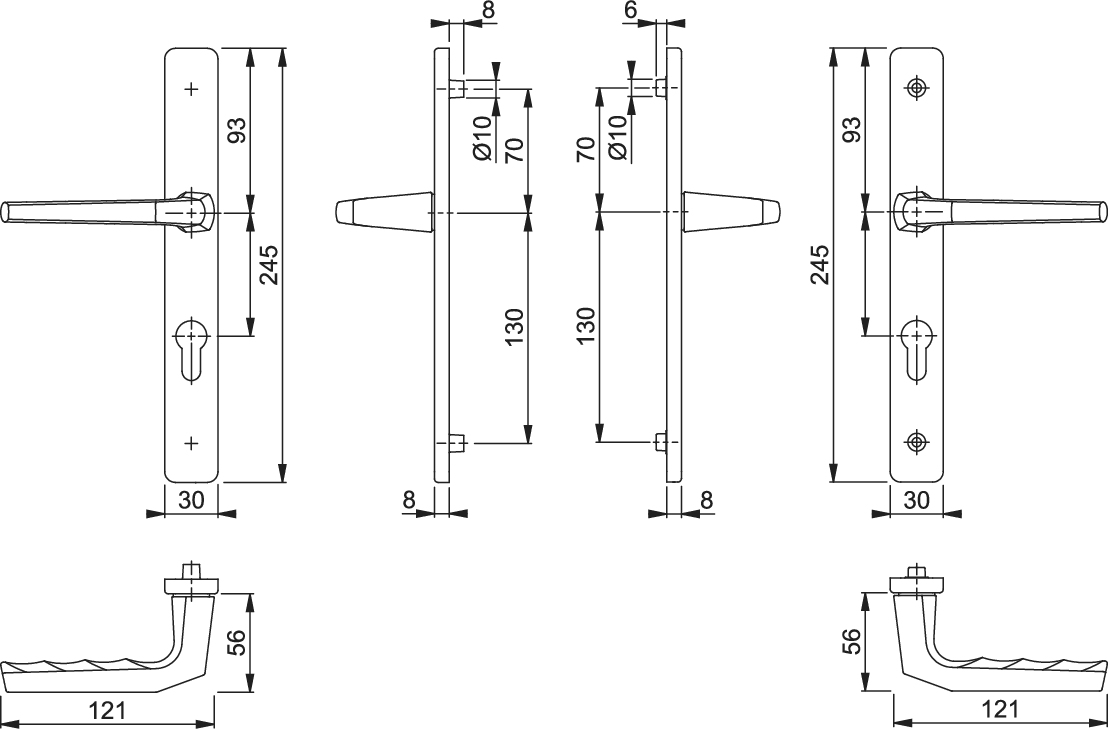

Technical drawing

DWG
DRW_CAT_117L-2246-PZ-GL70-2NO-M5_SALL_ACAD_V1.dwg
0,11 MB
JPG
0,09 MB
JPG
0,29 MB
EPS
DRW_CAT_117L-2246-PZ-GL70-2NO-M5_SALL_APR_V1.eps
1,18 MB
PDF
DRW_CAT_117L-2246-PZ-GL70-2NO-M5_SALL_APRW_V1.pdf
0,26 MB
