Handle Sets for Profile Doors

Birmingham

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors

Birmingham

Productline Model: 73G/3810N/1117
Model: 73G/3810N/1117
Item number: 3690721
Finish: F3 aluminium gold effect

  Remember and compare   Switch to wishlist   Download product data sheet

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:

  • Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
  • Connection: HOPPE solid spindle
  • Base: stainless steel/nylon, supporting lugs
  • Fixing: visible inside, bolt-through, M5 thread screws

Product type
Knob(pad)/handle set
Version
Set on narrow backplate
Finish
F3 aluminium gold effect
Spindle size
8 mm
Commodity Class
aluminium
(Key)Hole size
Euro profile cylinder
Key hole distance
62 mm
Base material
stainless steel/polyamide nylon
Spindle size
8 mm
Door thickness
70 mm

Product data sheet

PDF
DOK_DS_3690721_SEN-GB_AOF_V1.pdf
0,26 MB

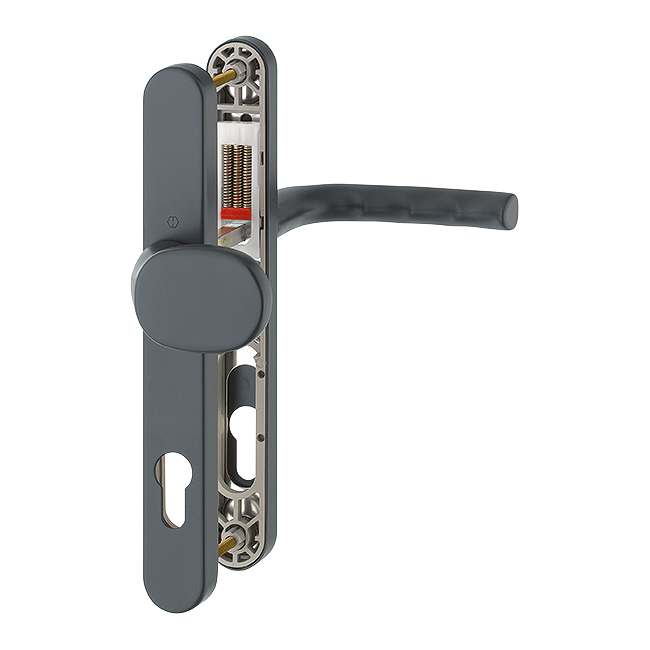

Product photo

JPG
0,14 MB

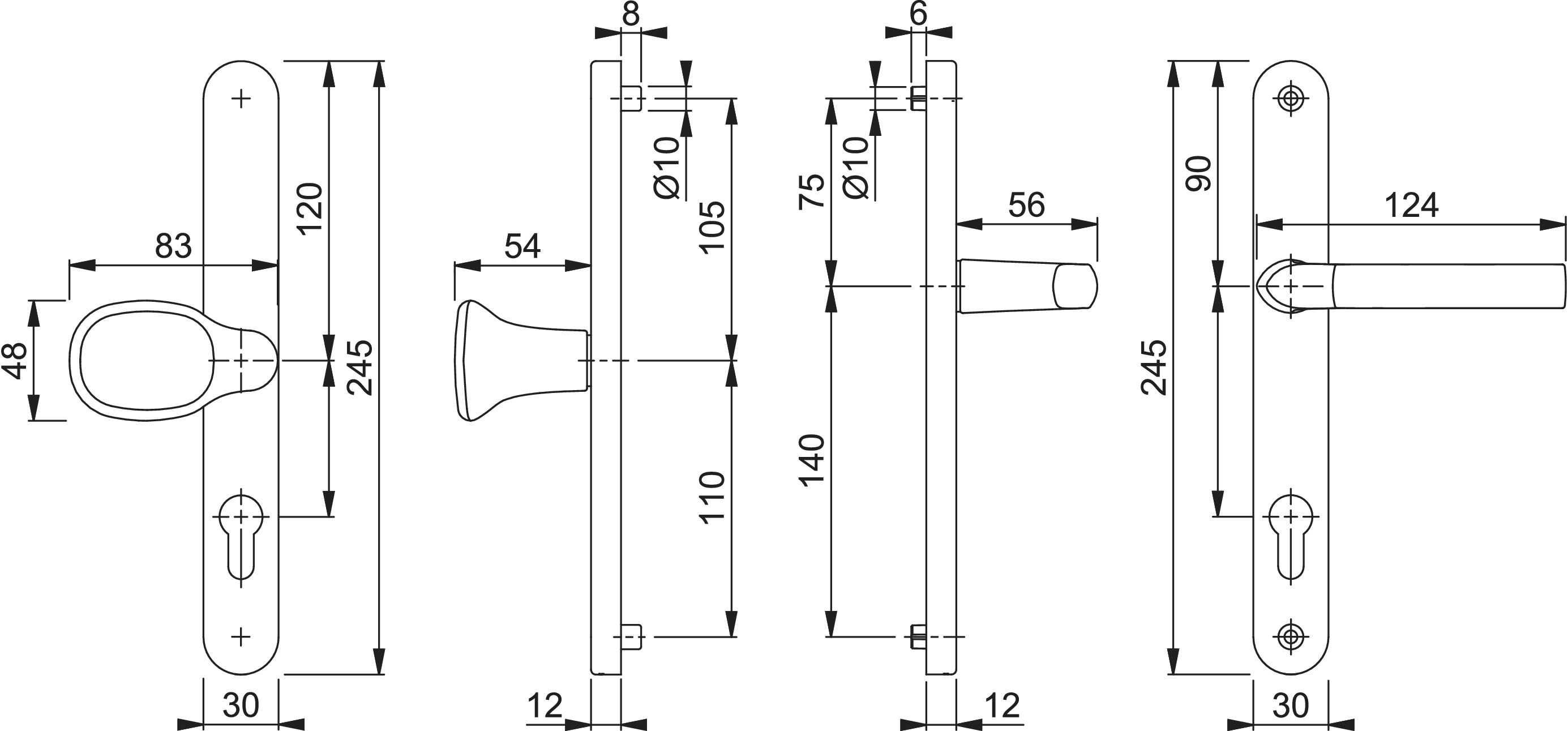

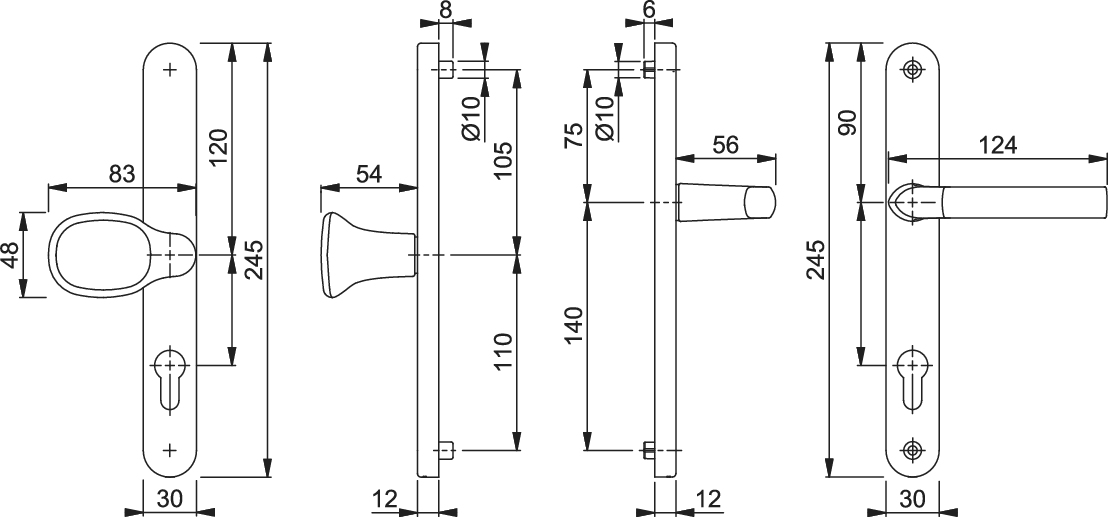

Technical drawing

DWG
DRW_CAT_73G-3810N-1117-PZ62-PZ92-f-d_SALL_ACAD_V1.dwg
0,08 MB
JPG
0,08 MB
JPG
0,24 MB
EPS
DRW_CAT_73G-3810N-1117-PZ62-PZ92-f-d_SALL_APR_V1.eps
0,36 MB
PDF
DRW_CAT_73G-3810N-1117-PZ62-PZ92-f-d_SALL_APRW_V1.pdf
0,16 MB
