Handle Sets for Interior Doors
AR361

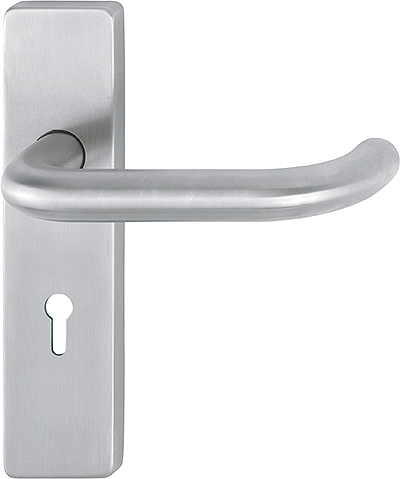

ARRONE lever handle set on backplate
Model: AR361
Item number: 87100964
Finish: SSS Satin Stainless Steel
ARRONE lever handle set on backplate:
- Material: stainless steel grade 316
- Function: lever handle set for commercial/public applications
- Bearing: fixed/movable with bathroom thumbturn and release
- Connection: grub screwable spindle (Heso)
- Base: stainless steel
- Fixing: wood screw and concealed, bolt-through, M5 thread screws
- Included in a successful fire test to BS EN 1634-1. Assessed for use on 30 and 60 minute timber fire doors and 240 minute on steel fire doors.
- Satisfies the dimensional recommendations contained within BS 8300:2009 for lever handles
Product type
Set (handle/handle)
Version
Set on short backplate
Material
stainless steel: grade 316
Finish
SSS Satin Stainless Steel
(Key)Hole size
lever keyhole
Key hole distance
57 mm
Door thickness
40-50 mm
Spindle size
8 mm
Plate dimension
180x42x9 mm
Bearing
sprung
Connection
breakthrough spindle
Door type
wooden door
Fixings
Timber door
Spindle size
8 mm

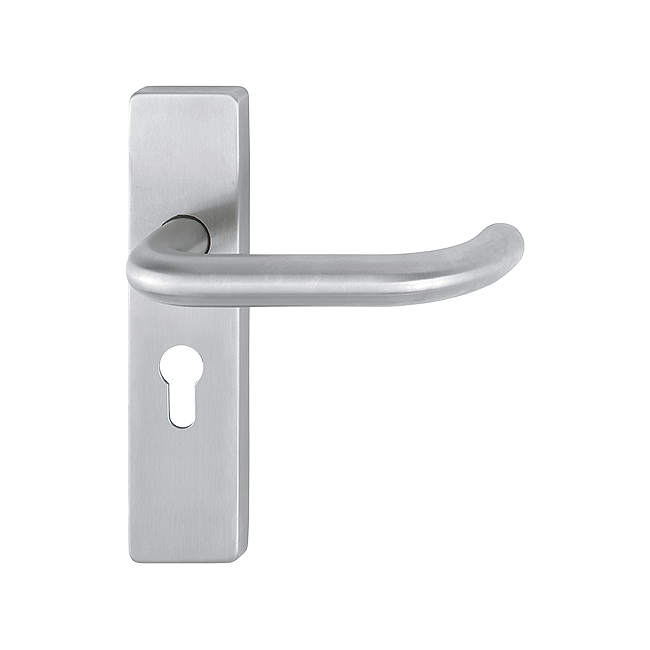

Euro profile cylinder

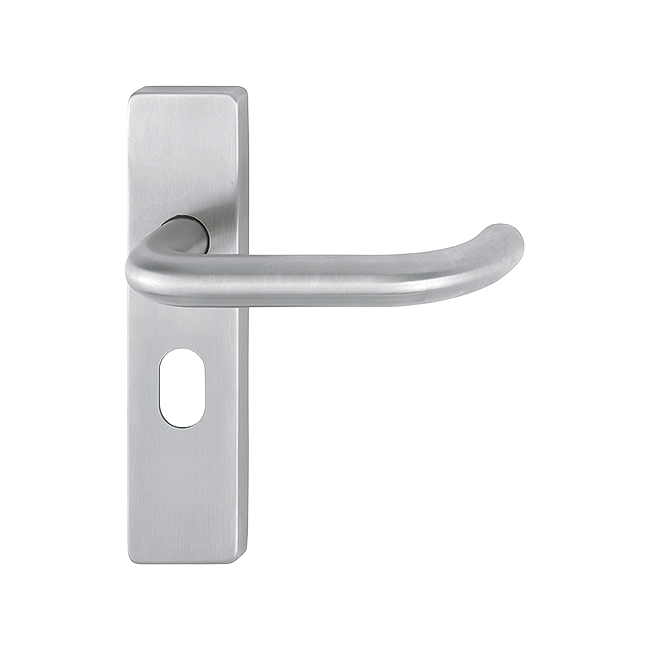

oval cylinder

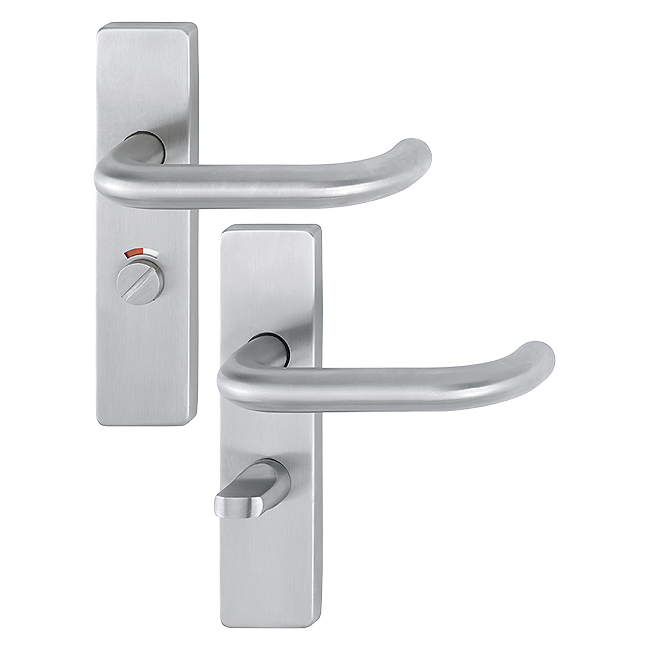

WC

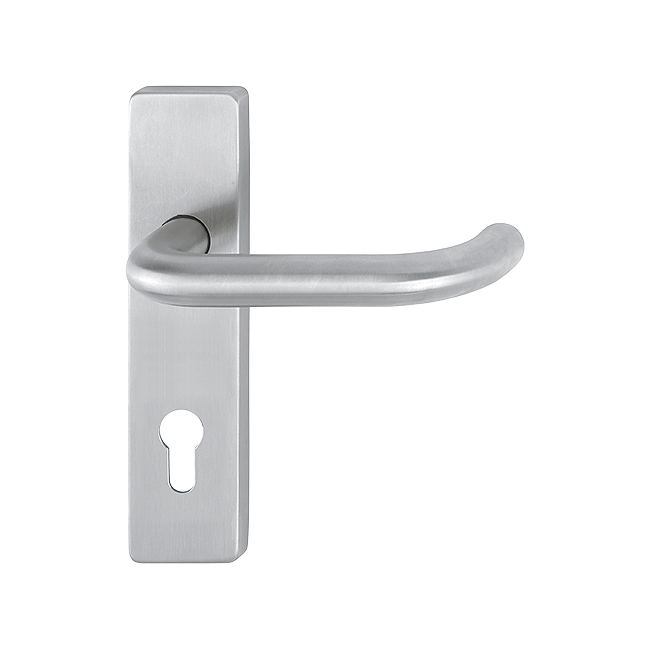

72 mm

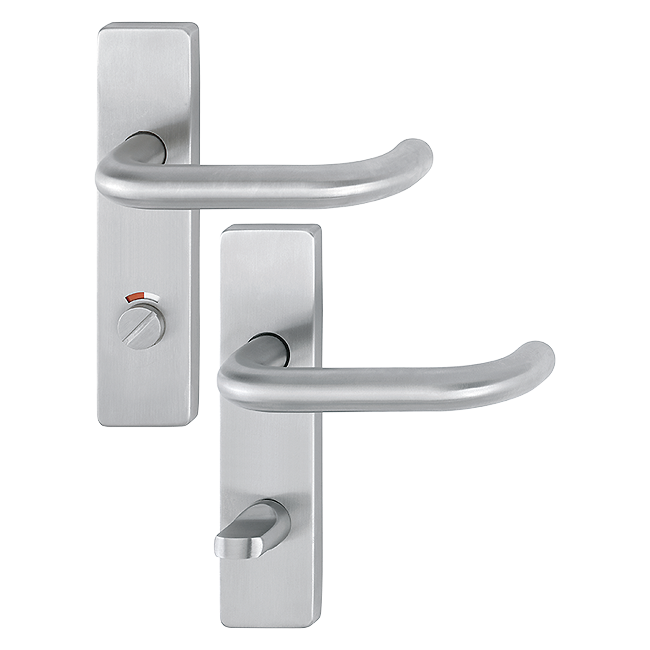

78 mm
