Pull Handles
AR3616

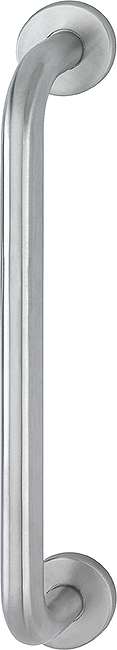

ARRONE stainless steel straight pull handle with roses (exterior side)
Model: AR3616
Item number: 87105928
Finish: SSS Satin Stainless Steel
ARRONE stainless steel straight pull handle with roses (exterior side):
- Fixing: concealed, pull handle fixing system no. C/BF-M8-WD
Product type
Pull handle
Version
Straight
Material
stainless steel: grade 316
Finish
SSS Satin Stainless Steel
Fixing distance
300 mm
Diameter/cross section
20 mm
Door thickness
37-57 mm
Rose height
6 mm
Fixing distance
300 mm
Unit
single
Fixings
bolt fixing/concealed fixing
Fixing
concealed and bolt fixing sets with M8 thread for wooden doors
Set screw
not drilled
Rose height
6 mm
PSS polished stainless steel
SSS Satin Stainless Steel
225 mm
300 mm
425 mm
600 mm
22 mm
concealed fixing
8 mm
