Finger Plates

AR224

ARRONE finger plate

AR224

Model: AR224
Item number: 8562741
Finish: SAA satin anodised aluminium

ARRONE finger plate:

  • Material: satin anodised aluminium
  • Fixing: drilled and countersunk supplied with wood screws
  • Corner: square



Material
aluminium
Finish
SAA satin anodised aluminium
Plate type
square corner
Length
350 mm
Corner
square corner
Door type
wooden door
Width
75 mm
Drill
6 screw holes countersunk
Fixings
Timber door

Product data sheet

PDF
DOK_DS_8562741_SEN-GB_AOF_V1.pdf
0,22 MB

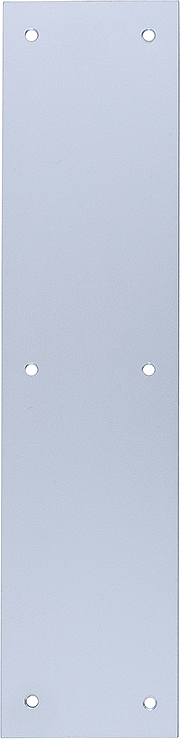

Product photo

JPG
0,12 MB

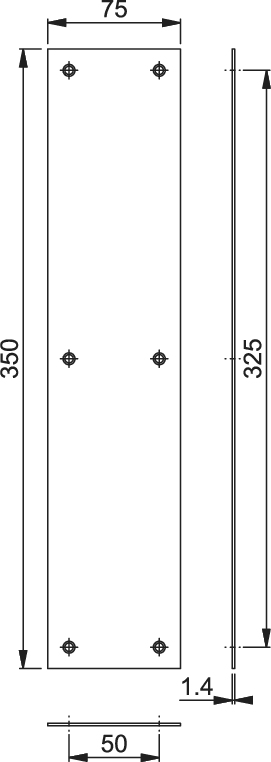

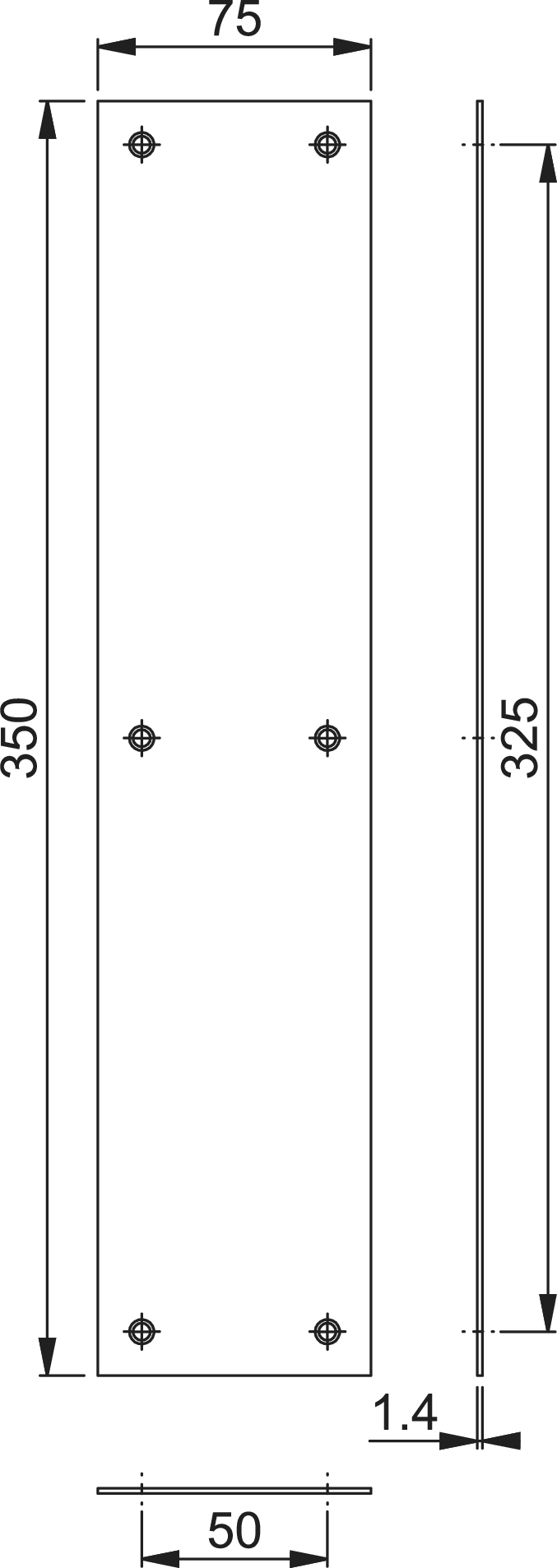

Technical drawing

DWG
DRW_CAT_AR224C_SALL_ACAD_V1.dwg
0,16 MB
JPG
0,02 MB
JPG
0,07 MB
EPS
DRW_CAT_AR224C_SALL_APR_V1.eps
0,26 MB
PDF
DRW_CAT_AR224C_SALL_APRW_V1.pdf
0,15 MB
