Handle Sets for Profile Doors
Birmingham

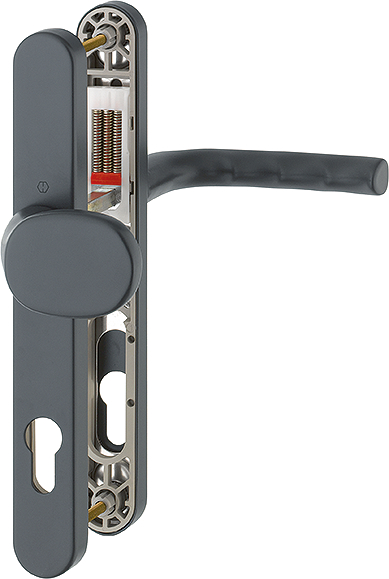

HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors
Model: 73G/3810N/1117
Item number: 11518972
Finish: F9714M matt black
HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:
- Tested to DIN EN 1906: 26-0040A
- Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
- Connection: HOPPE solid spindle
- Base: stainless steel/nylon, supporting lugs
- Fixing: visible inside, bolt-through, M5 thread screws
grade 4, EN 1670
Product type
Knob(pad)/handle set
Version
Set on narrow backplate
Finish
F9714M matt black
Grade
2
Spindle size
8 mm
Commodity Class
aluminium
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Base material
stainless steel/polyamide nylon
Spindle size
8 mm
Door thickness
60 mm + 70 mm
