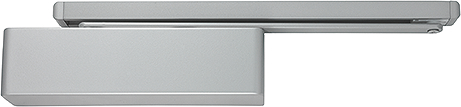

Cam-Action Door Closer
AR6409
ARRONE overhead door closing device
Model: AR6409
Item number: 50008407
Finish: SE Silver Enamel
ARRONE overhead door closing device:
- Power size: EN 2 to EN 4, adjustable by spring tension
- Function: closing, latching, backcheck
- Cover: slimline
- Arm application: door mount pull, transom mount push
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 1,100 mm, door weight 80 kg
Classification (Door mount pull side): 4 | 8 | 4/2 | 1* | 1 | 3
Classification (Transom mount push side): 3 | 8 | 4/2 | 1* | 1 | 3 - Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
- Certification:
CE: AD5284, DOP HUK0065
Certifire: CF5430
grade 4, EN 1670
Finish
SE Silver Enamel
Finish of the cover
SE Silver Enamel
Tested door width
1100 mm
Shape
Slimline
Power size
2 to 4
Mechanism function
closing/latching speed, backcheck, spring adjustment
Tested door weight
80 kg
Arm Application
door mount pull, transom mount push
Mechanism type
cam action
Slide track application
door mount pull, transom mount push
Door type
wooden door
Fixings
Timber door

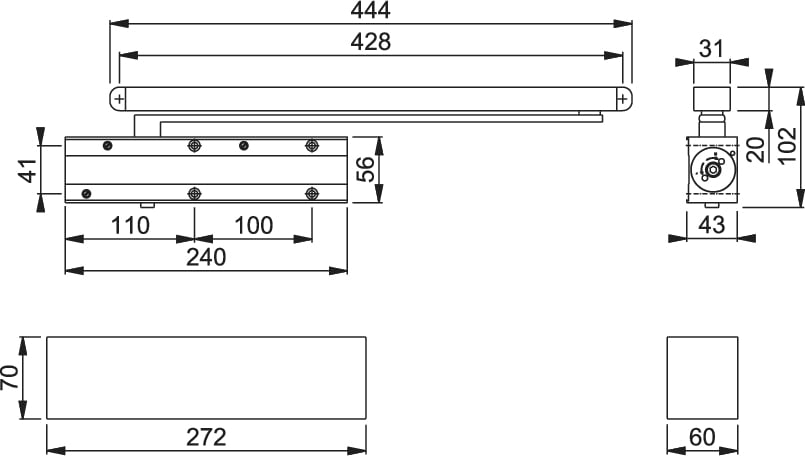

Mechanism dimensions and fixing centres
240x56x43mm; centres 100x41mm
Opening Angle
max. 180° opening
Arm type
Surface slide arm
