Pull Handles

AR2616

ARRONE stainless steel pull D handle

AR2616

Productline Model: AR2616
Model: AR2616
Item number: 50030127
Finish: RAL 9005 jet black

ARRONE stainless steel pull D handle:

  • Material: stainless steel grade 201
  • Handle diameter: 19 mm
  • Fixing: bolt through type M8 machine screw
  • To suit door thickness: 35-54 mm

Material
stainless steel: grade 201 (A1)
Finish
RAL 9005 jet black
Fixing distance
425 mm
Door thickness
35-54 mm
Door type
wooden door
Fixings
bolt fixing

Product data sheet

PDF
DOK_DS_50030127_SEN-GB_AOF_V1.pdf
0,22 MB

Product photo

JPG
0,05 MB

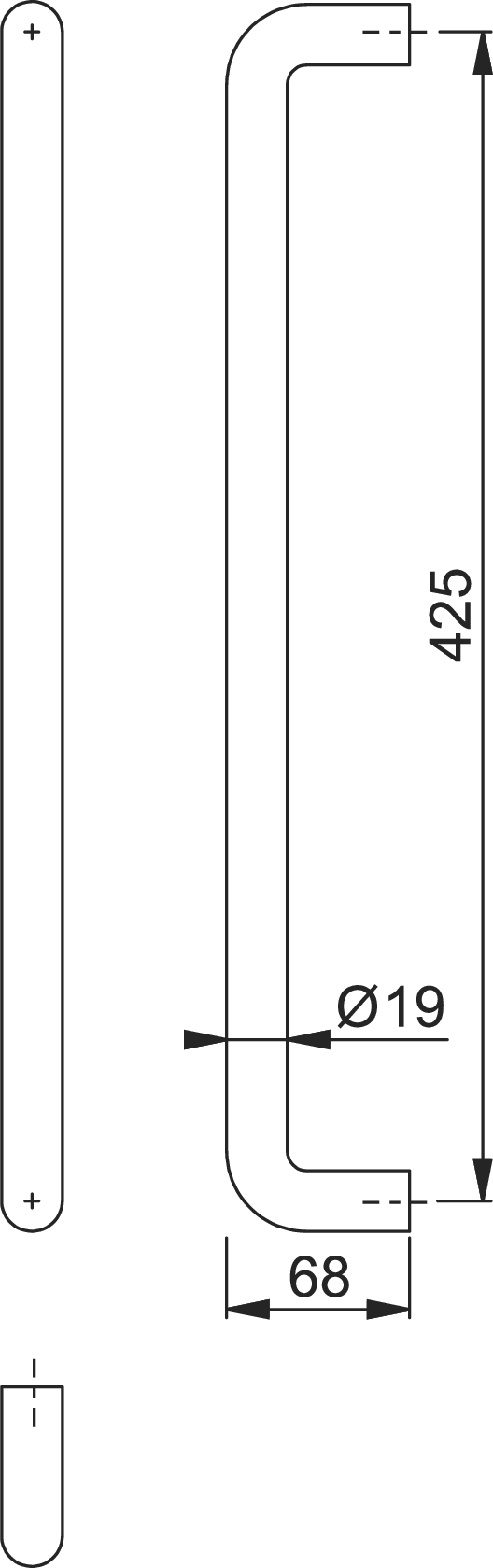

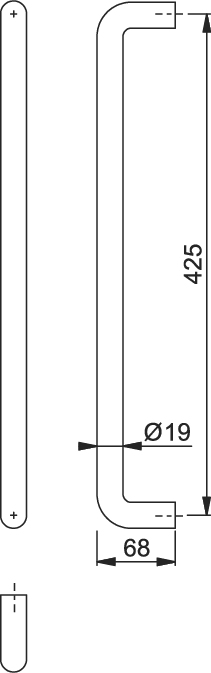

Technical drawing

DWG
DRW_CAT_AR2616-425BF_SALL_ACAD_V1.dwg
0,04 MB
JPG
0,02 MB
JPG
0,05 MB
EPS
DRW_CAT_AR2616-425BF_SALL_APR_V1.eps
0,97 MB
PDF
DRW_CAT_AR2616-425BF_SALL_APRW_V1.pdf
0,14 MB
