Poignée battante droite ARRONE en inox

Nouveau
AR6219

Productline Modèle: AR6219
Modèle: AR6219
Numéro d’article: 50030383
Finition: SSS inox mat

Poignée battante droite ARRONE en inox :

  • Supports : ronds, déportés à 45°
  • Fixation : non visible, pour systèmes de fixation de poignée battante AR6210-CR ou AR6211-CR
  • Répond aux recommandations dimensionnelles contenues dans la norme BS 8300 pour les poignées battantes

Matériau
inox: 316
Couleur
SSS inox mat
Distance de fixation
1200 mm
Longueur
1600 mm

Fiche technique

PDF
DOK_DS_50030383_SFR_AOF_V1.pdf
0,23 MB

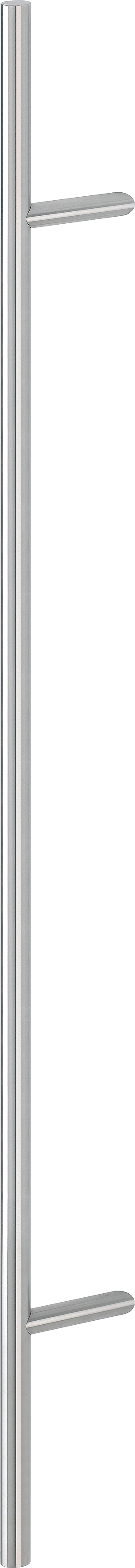

Image de produit

JPG
0,28 MB

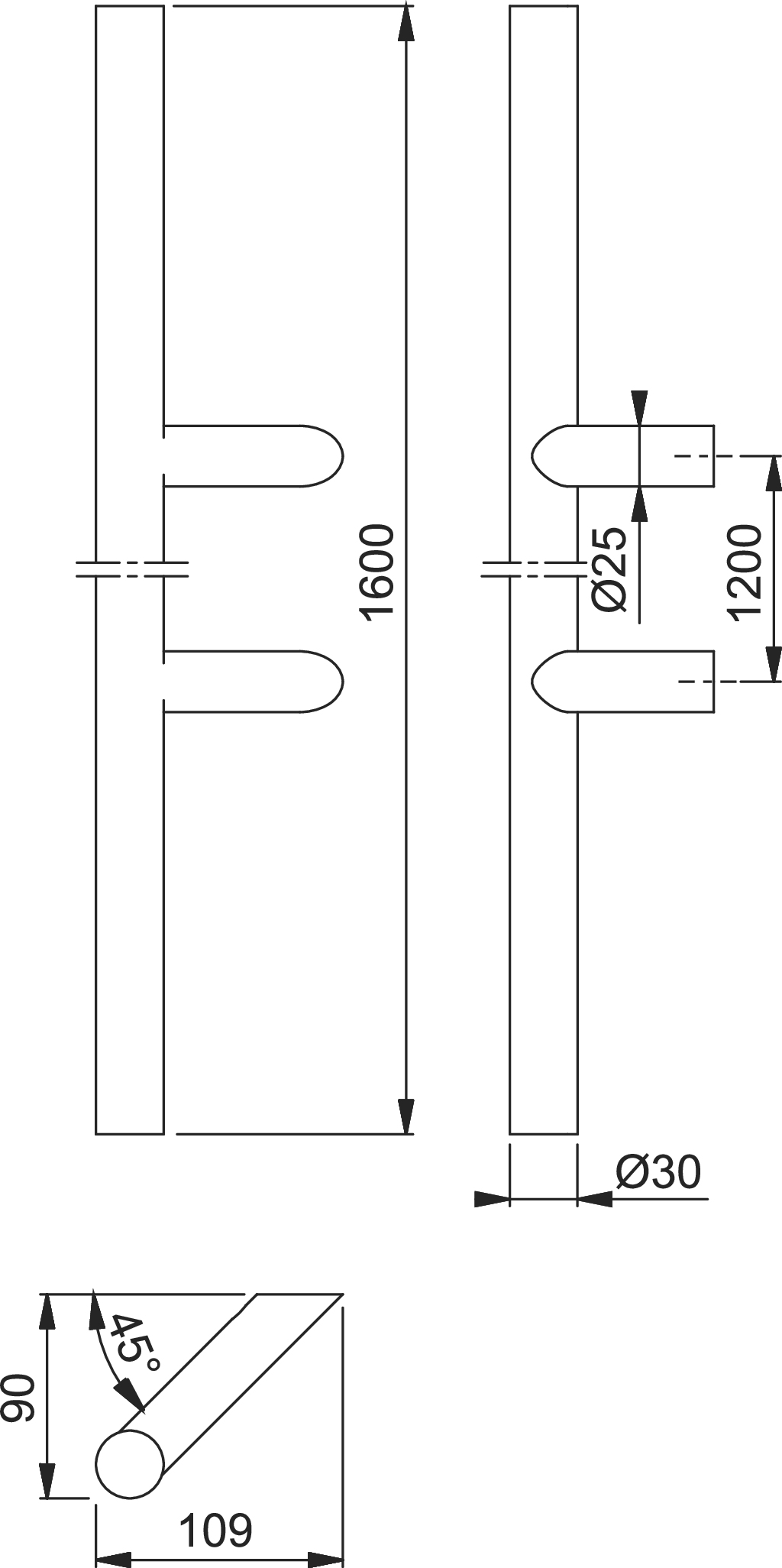

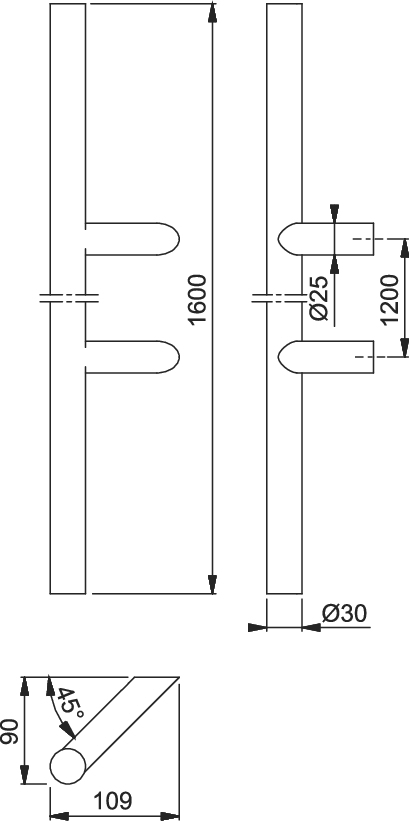

Plan technique

DWG
DRW_CAT_AR6219-1200_SALL_ACAD_V2.dwg
0,03 MB
JPG
0,03 MB
JPG
0,10 MB
EPS
DRW_CAT_AR6219-1200_SALL_APR_V2.eps
1,01 MB
PDF
DRW_CAT_AR6219-1200_SALL_APRW_V2.pdf
0,14 MB
