Electromagnetic Closer
AR6409-EHO

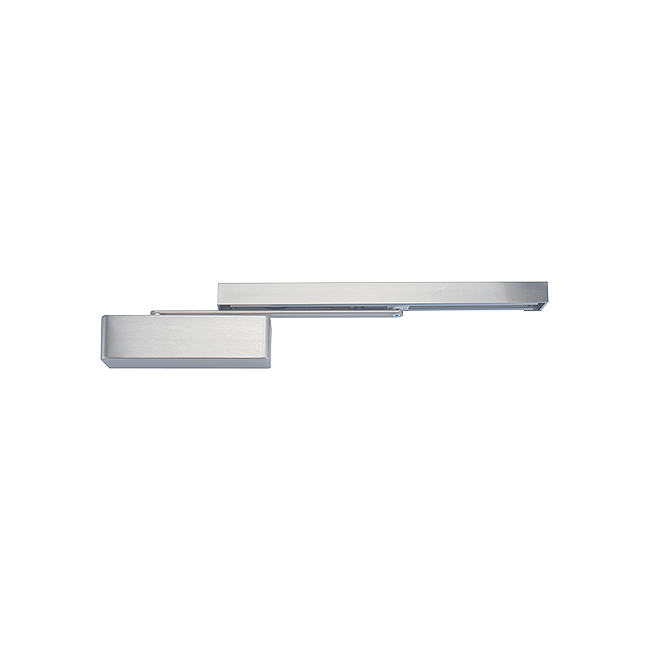

ARRONE overhead door closing device
Model: AR6409-EHO
Item number: 50025284
Finish: SSS-E Satin Stainless Steel effect
ARRONE overhead door closing device:
- Power size: EN 3 to EN 4, adjustable by spring tension
- Function: closing, latching, backcheck, electromagnetic hold open track
- Cover: box
- Arm application: door mount pull, transom mount push
- Successfully type tested for conformity to all requirements of BS EN 1155:1997
Tested: door width 950-1,100 mm, door weight 60-80 kg
Classification (Door mount pull side): 4 | 8 | 4/2 | 1* | 1 | 3
Classification (Transom mount push side): 3 | 8 | 4/2 | 1* | 1 | 3 - Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
- Certification:
CE: AE5024, DOP HUK0055
Finish
SSS-E Satin Stainless Steel effect
Tested door width
1100 mm
Shape
Box
Power size
3 to 4
Mechanism function
closing/latching speed, backcheck, spring adjustment
Tested door weight
80 kg
Arm Application
door mount pull, transom mount push
Mechanism type
cam action
Slide track application
door mount pull, transom mount push
Door type
wooden door
Fixings
Timber door
DC operating voltage
24VDC
Mechanism dimensions and fixing centres
240x56x43mm; centres 100x41mm
Opening Angle
140 mm
Arm type
Surface slide arm, electro hold open
Slimline
