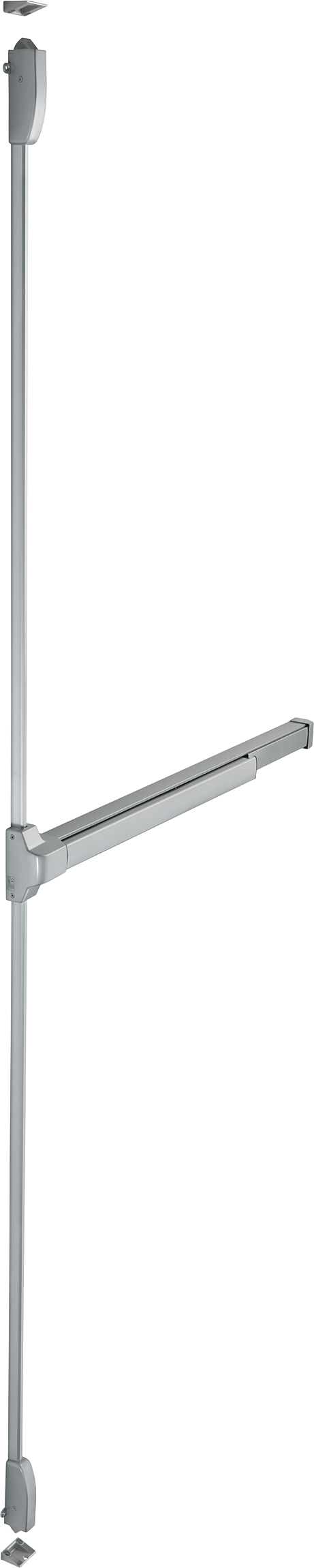

AR8800

ARRONE touchbar panic bolt- 2 point:

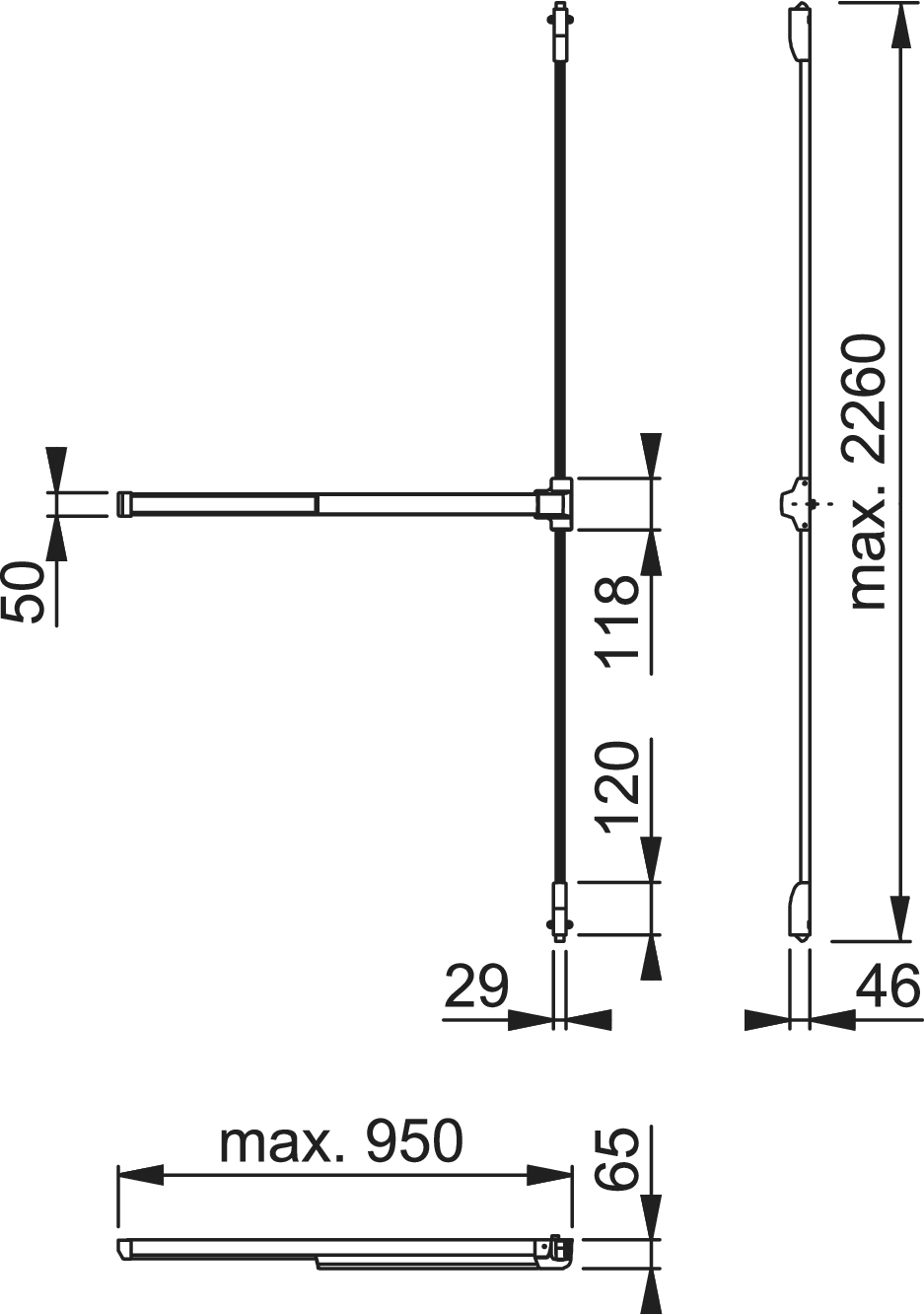

• Maximum door height: 2,200 mm (extra length vertical rods available for doors up to 2,500 mm high)
• Total device length: 962 mm
• Maximum door weight: 200 kg
• Maximum door width: 1,000 mm
• Fixing: timber fixing screws supplied (Steel door fixings and strike plates available separately)
• Supplied with "Push Bar To Open" signage
• Testing: BS EN 1125:2008 (Classification 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A ), BS EN 1634-1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.
• CE Marked: AAA5002
• Certifire approved: CF5180, CE DOP: HUK0036
• Note: In accordance with the scope of EN 1125, doors up to 2,500 mm high and 1,300 mm width are covered by the standard. Doors taller or wider than this will not be covered by the standard and the test evidence gained.
