are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Euro
AR0122
ARRONE Euro profile 6 pin cylinder
Model: AR0122
Item number: 87108360
Finish: Matt Nickel Plated
ARRONE Euro profile 6 pin cylinder:
- Cylinder type: Key and turn cylinder
- Keying function: Master keyed
- Number of keys: 2 servant keys
- Testing: BS EN 1303, BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 120 minutes on steel fire doors.

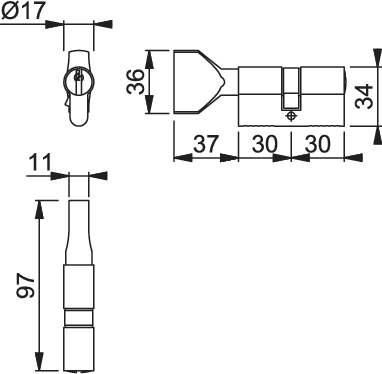

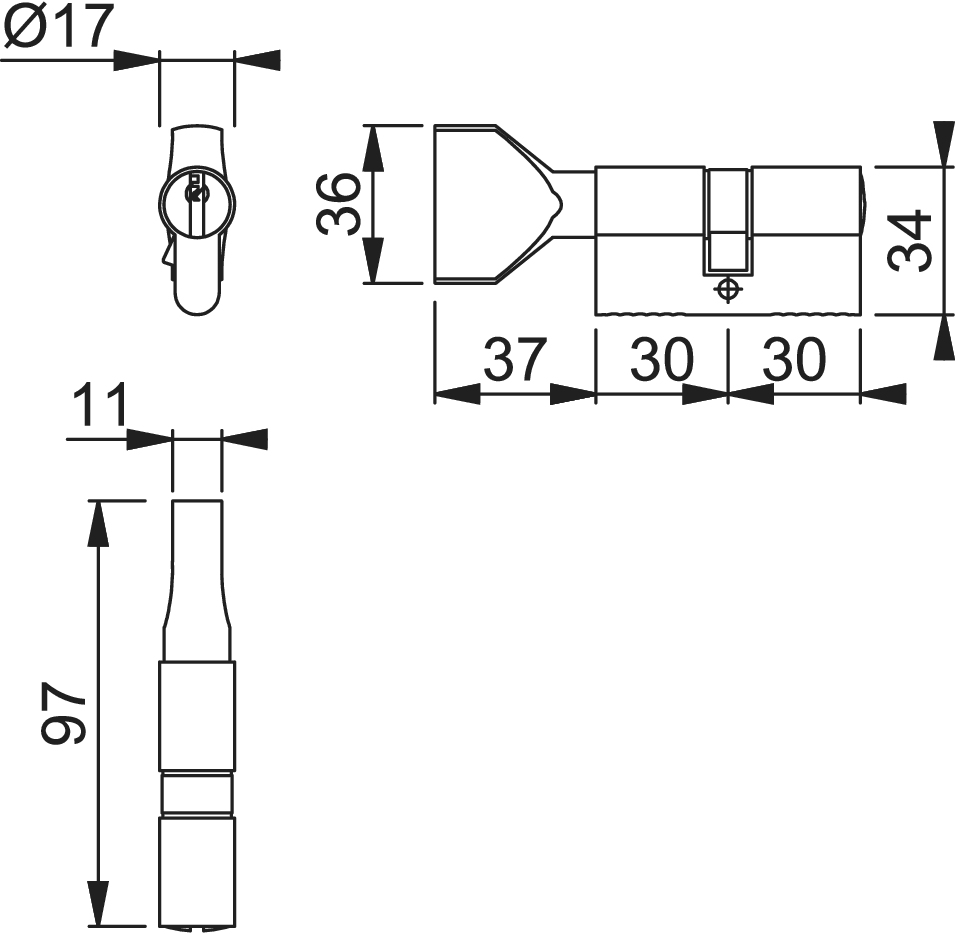

Cylinder length
30/30 mm - 60 mm overall length
Cylinder finish
Matt Nickel Plated
Finish knob
Matt Nickel Plated
Fixings
M5x70 mm
Keyway section
S - Section
Pinning and Keying
6 pin master keyed
Security
antipick & antidrill
Product type
none
Rose shape
None available
Version
none
Finish
Matt Nickel Plated
Commodity Class
ARRONE® Zylinder
Number of pins
6
Door type
wooden door/metal door
Cylinders ISEO ARRONE®
polished brass
