Mortice Sashlocks
AR916

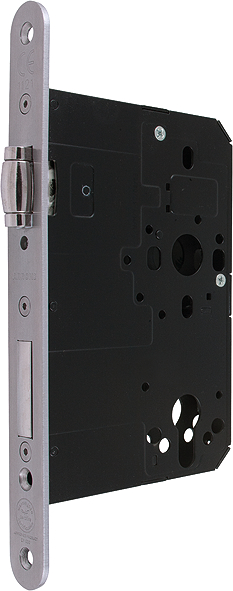

ARRONE mortice rollerbolt lock case
Model: AR916
Item number: 87117064
Finish: SSS Satin Stainless Steel
ARRONE mortice rollerbolt lock case:
- Function: roller bolt and deadbolt operation
- Deadbolt projection: 21 mm, single throw
- Forend/strike material: stainless steel
- Forend type: single
- CE Marked: AG0247
- Certifire approved: CF530, CE DOP: HUK0013
BS EN 12209: 3 | C | 8 | 1* | 0 | G | 4 | B | A | 0 | 0 - Testing: BS EN 1634-1. Assessed for use on 30, 60, 90, 120 minute timber and 240 minute steel un-latched fire doors.
- * The AR916 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
Finish
SSS Satin Stainless Steel
Face plate finish
F69 satin stainless steel
(Key)Hole size
Euro profile cylinder
Key hole distance
72 mm
Door thickness
44 mm
Shape
radiused
Backset
80 mm, pierced for furniture and escutcheons at 38 mm centres
Corner
radius corners
Door type
wooden door
Fixings
Timber door

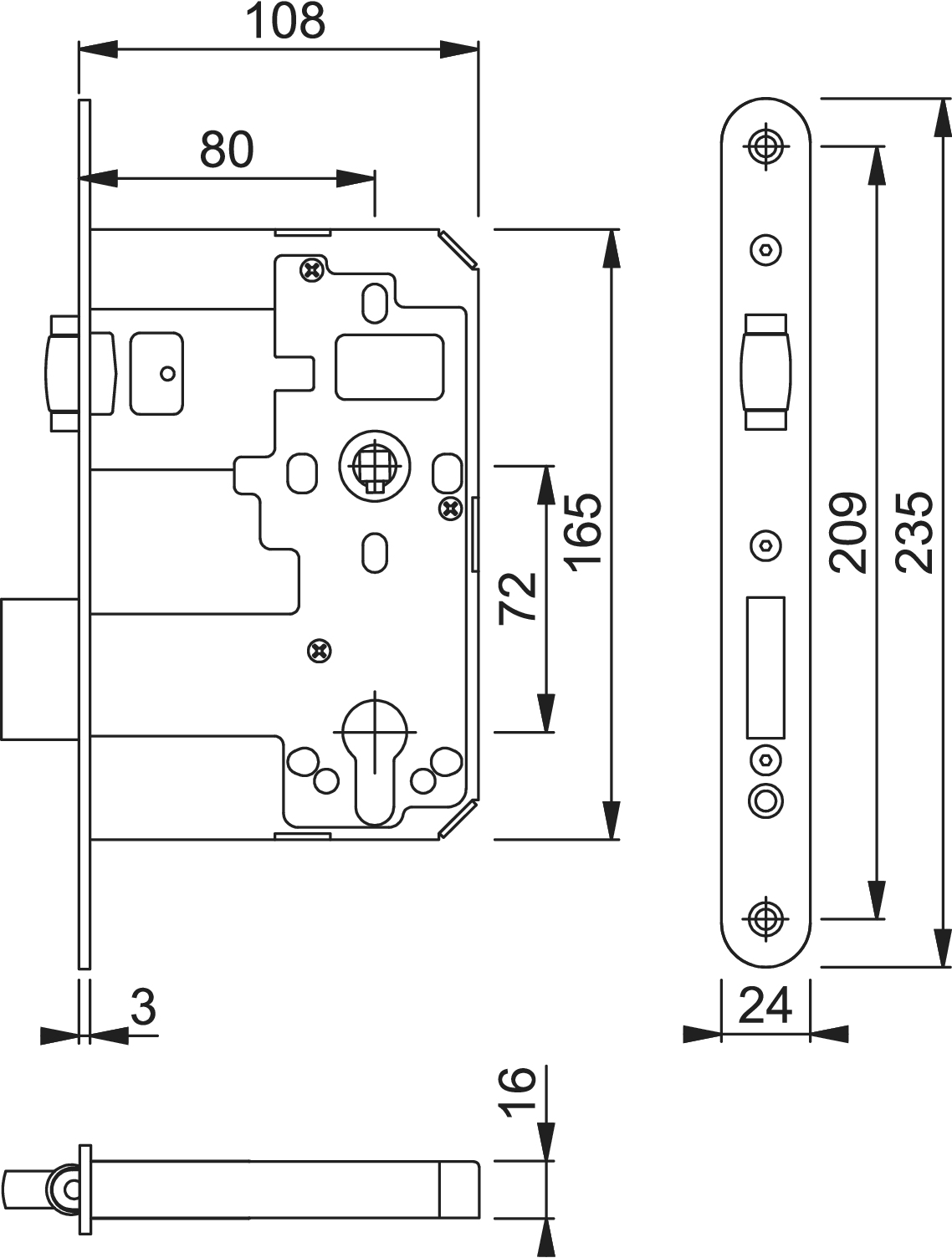

Case Dimensions
Depth: 108 mm length: 165 mm width: 16 mm, modular
square
