Double Rebated Combination Unit
AR888

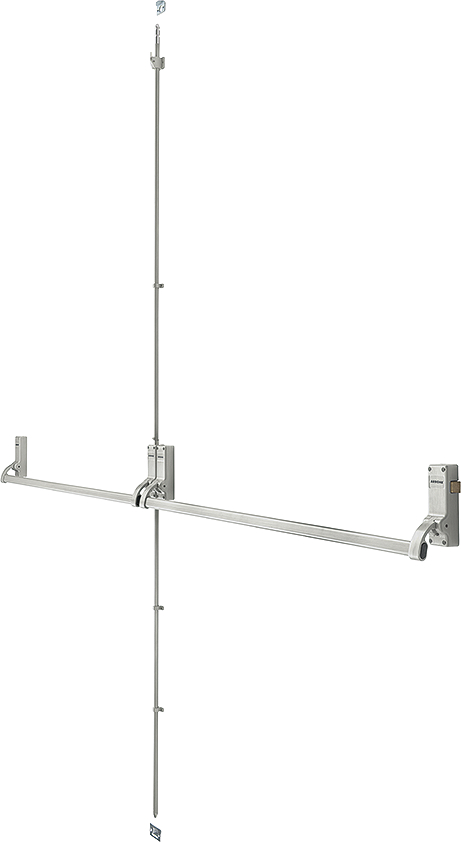

ARRONE combination unit for double rebated doors
Model: AR888
Item number: 8563784
Finish: SNP satin nickel plated
ARRONE combination unit for double rebated doors:
- Maximum door height: 2,440 mm
- Maximum door width: 1,220 mm
- Maximum door weight: 200 kg
- Fixing: timber fixing screws supplied (steel door fixing packs available separately)
- Supplied with "Push Bar To Open" signage
- Testing: BS EN 1125:2008 (Classification 3 | 7 | 6 | B | 1 | 4 | 2 | 2 | A | A ), BS EN 1634-1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.
- CE Marked: AAA005
- Certifire approved: CF810, CE DOP: HUK0022
Material
steel/zinc
Finish
SNP satin nickel plated
Material Body
zinc
Door type
wooden door
Door width
max 1220 mm
Door height
max. 2440 mm
Double door width
max 1220 mm
Fixings
Timber door
Locking point
3-Point locking, anti-thrust
