AR8808

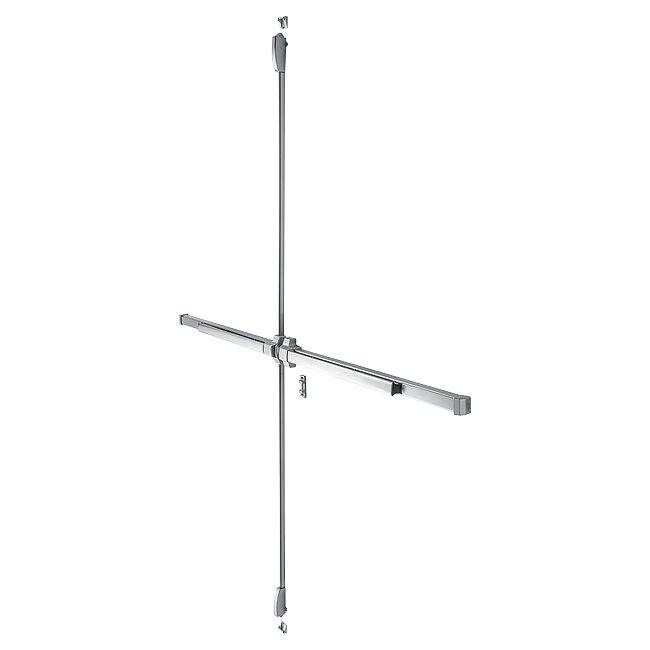

ARRONE touchbar combination unit for double rebated doors:

• Maximum door height: 2,200 mm (extra length vertical rods available for doors up to 2,500 mm high)
• Maximum door width: 1,200 mm
• Maximum door weight: 200 kgs
• Fixing: Timber fixing screws supplied (Steel door fixings and strike plates available separately)
• Supplied with "Push Bar To Open" signage
• Testing: BS EN 1125:2008 (Classification 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A ), BS EN 1634 Part 1: Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.
• CE Marked: AAA5002, UKCA Marked: AAA7652
• Certifire approved: CF518, CE DOP: HUK0036, UKCA DOP: HUK0036-UK
• Note: In accordance with the scope of EN 1125, doors up to 2500 mm high and 1300 mm width are covered by the standard. Doors taller or wider than this will not be covered by the standard and the test evidence gained.
